2025 Hot New 12V 30A AC DC Power Supply Single Output 12V for Radio Base Station

EV1230

minimum order:

1 piece

Quantity:

$100.00 - $130.00 / piece

Contact Now

add to cart

Input Voltage:220Vac
Output Current:30 A
Output Voltage:12VDC
Model Number:EV1230
Brand Name:OEM ODM
Place of Origin:Guangdong, China
Application:Industry, Industrial Equipment, Laboratory
Efficiency:0.93
Output Frequency:50/60Hz
Output Type:Single
Protection:Overloading Protection, Over Temperature Protection, Overvoltage Protection, Overcurrent Protection
Type:AC-DC, 13.8V Dc Power Supply
Function:Telecom base stations
Compatible Brand:Emerson, Huawei, ZTE,vapel, Eltek
Logo:Can be design according to customer
Condutor:12V 30A Switching Power Supply

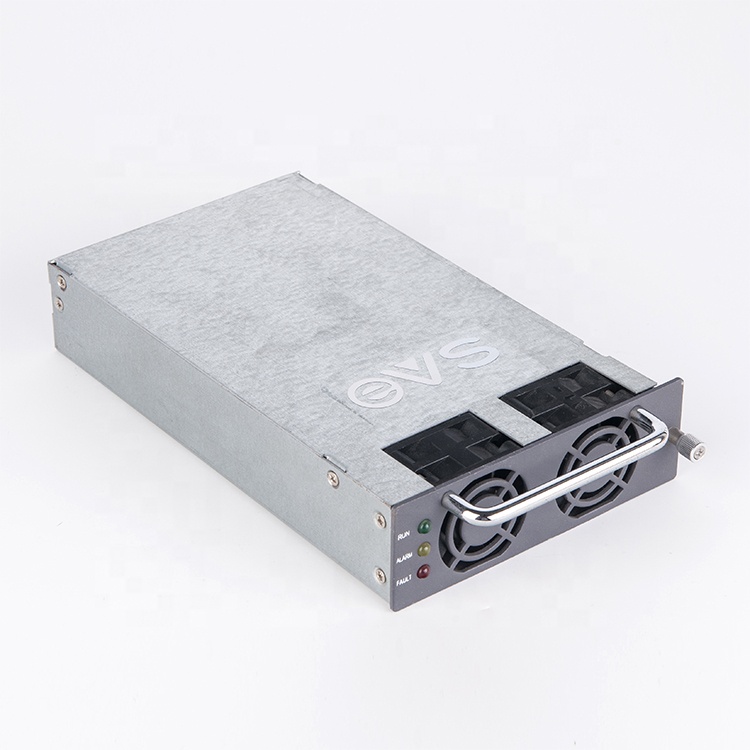

Rectifier:Hot-swap

Our products

13.8V Dc Power Supply Information

1.wide voltage input range: 80 ~ 300Vac/100-400Vdc, suitable for all countries in the world of power grid input;

2. the system has high power factor greater than 0.99;

3. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

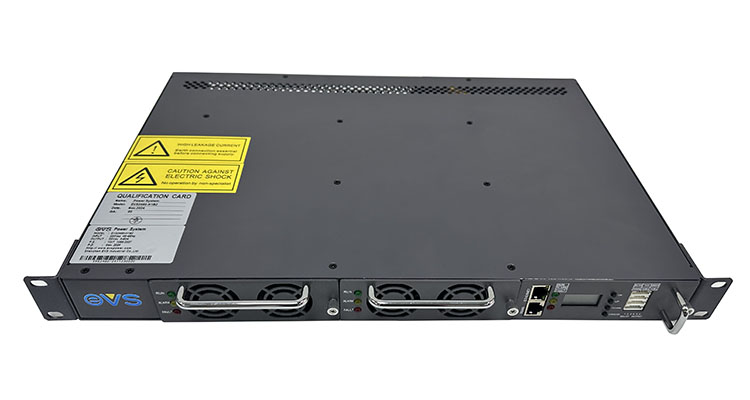

4.Small size, height 1U, 2*30A rectifier module

5.Configurable module: 30A for option

6.The standard 19-inch installation

7. SNMP controller and management and battery management

8.Provide RS485 Modbus SNMP communication interface

9.EVS Module anti-theft function

10. Battery anti-reverse function

11. Input current detection

12.Support hot-swappable

13. The energy-saving sleep function

14. The independent design of lightning protection unit (optional)

15. The power supply can be installed in any 19-inch rack independently

EVSPOWER 13.8V Dc Power Supply Application

* Small scale program controlled exchanges

* Access network

* Transmission equipment

* Mobile communication

* Satellite communication ground station

* Microwave communication

13.8V Dc Power Supply Performance index input
Parameter	Min.	Rated	Max.	Unit	Note
Rated working voltage range		110/220		Vac
Input voltage range	90	220	290	Vac	Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency	45	50	65	Hz
Battery input	10	13.8	16	Vdc	Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)

ac dc power supply performance index output
Parameter	Min.	Rated	Max.	Unit	Note
Output voltage range	10	13.8	16	Vdc
Output current range (max.current)	0		30	A	input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.

Company Information

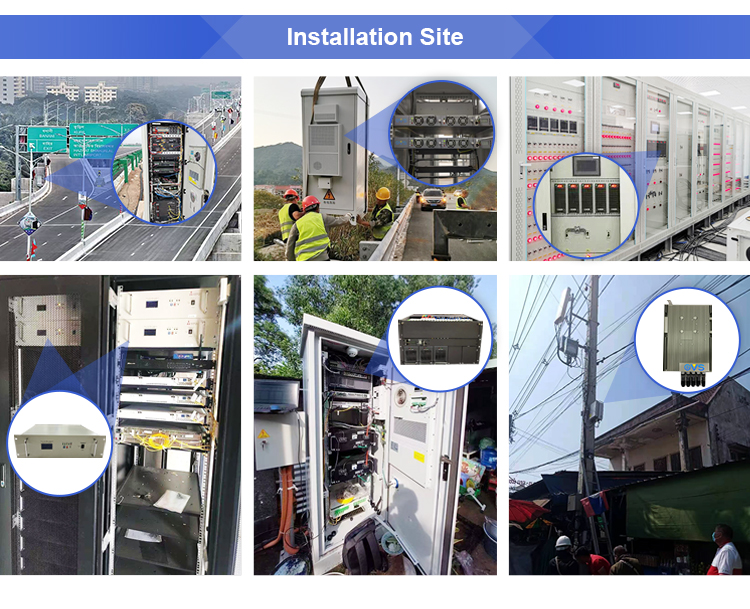

Installation Site

FAQ

Q1.Why choose us?

Shenzhen Evs Industrial Co., Ltd. offer you the best quality products and service. Win to win
business is our first principle.

Q2.Whom we are ?
Shenzhen Evs Industrial Co., Ltd. is a professional manufacturer which combine production
and trade. Now the company have two brand evs and huaqiang power. The products series
contain high ,middle and low level range products. The products is highly used for all brands of
Switching Power Supply,mobile phones , PC , DC ,TV PSP ,laptop and so on electronic products.

Q3.Are you a factory or trading company?
A: Yes, we are date cable manufacturer,supply OEM/ODM service.

Q4, Can you open mould as customer request.
A: Yes , we can

Q5.How about your After sales-service?
A: 1.Guarantee time: one year
2.Spare parts: 0.3% spare parts will be shipped with your order.
3.Return policy: we can exchange goods if quality problem.

Q6.Our Payment & Logistics?
1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypa
2.Shipping terms: Ship,DHL, UPS, FEDEX, TNT, EMS
3.Sample order delivered within 24 hours , order lead time within 3 days

Q7.Sample available: Yes

Q8.What can you get from us?

1.Excellent products (unique design, strict quality control )
2.Great service(OEM,ODM, after-sales services, fast delivery)
3.Professional business consultation.
