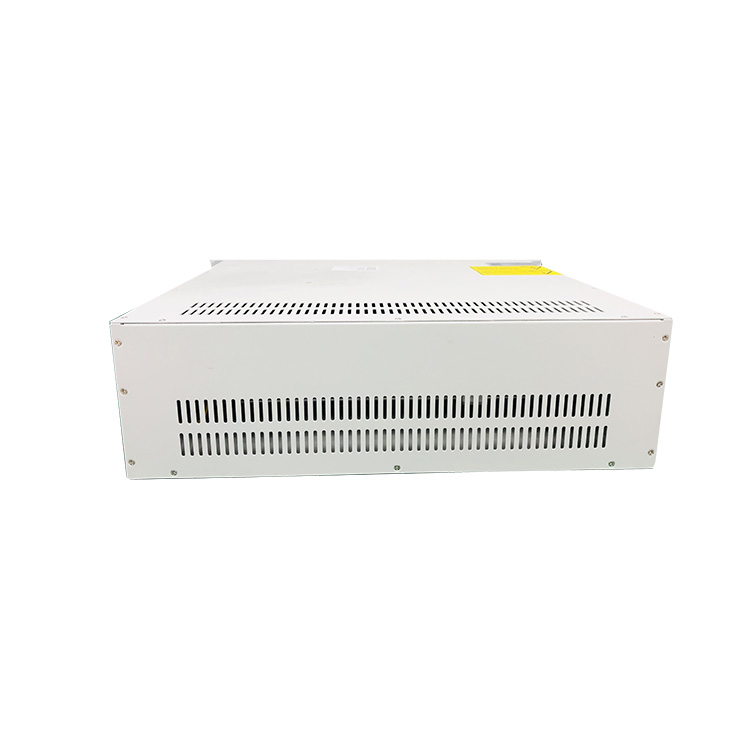

220V AC to 110V DC Converter Industrial Switching Power Supply with Dc Output

• Input Voltage:220 V
• Output Current:0-80A
• Output Voltage:120Vdc, 120V rectifier*4PCS
• Model Number:EVS11080-H3A4
• Brand Name:EVS
• Place of Origin:Guangdong, China
• Application:Industry, Laboratory, Industrial Equipment, Battery Charging, Machines, 110v dc rectifier
• Efficiency:92%
• Output Frequency:40-67hz
• Output Type:Single
• Protection:Overcurrent Protection, Over Temperature Protection, Overvoltage Protection, Overloading Protection, Over Power Protection
• Type:AC-DC
• Input voltage:90-280VAC& 110-395VDC
• Work temperature:-20 ~ +55℃
• Size:482*400*132mm
• Communication:RS485/SNMP

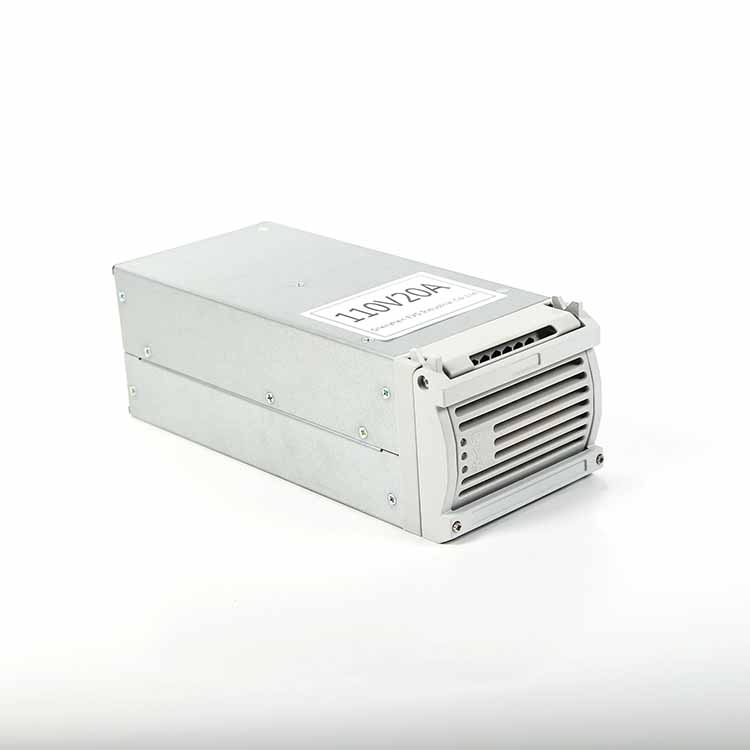

110v dc output power supply with 20A Modular Rectifier

110v dc rectifier adopts active power factor compensation technology, power factor up to 0.99.
 input voltage of normal operating range as wide as 90 ~ 290Vac&110-395Vdc.
110v dc rectifier adopts full bridge soft switching technology, efficiency can reach above 92%.

 Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet   requirements for conducted and radiated interference of"the communication power equipment   electromagnetic compatibility Limits and methods of measurement"( People's Republic of China   telecommunications industry standard YD/T983).
 Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.

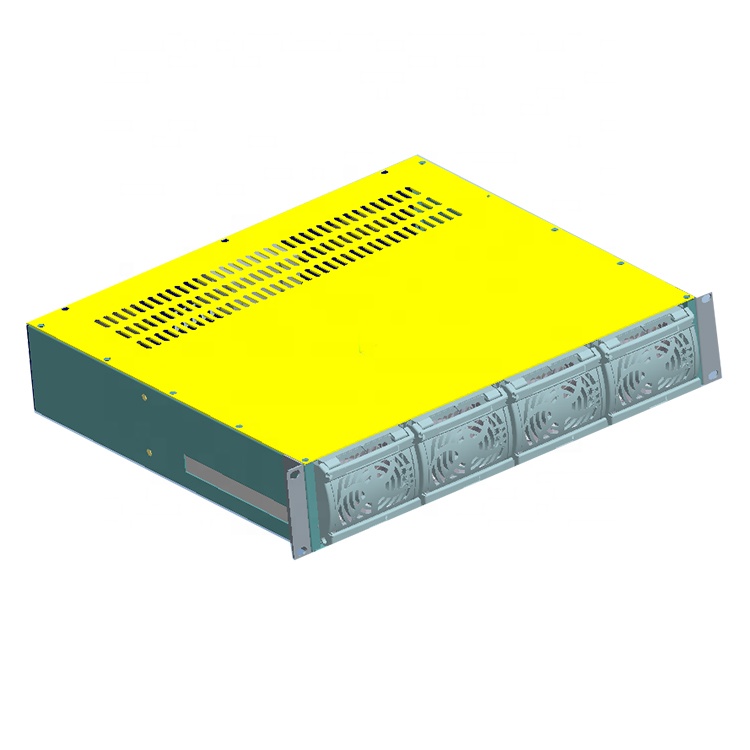

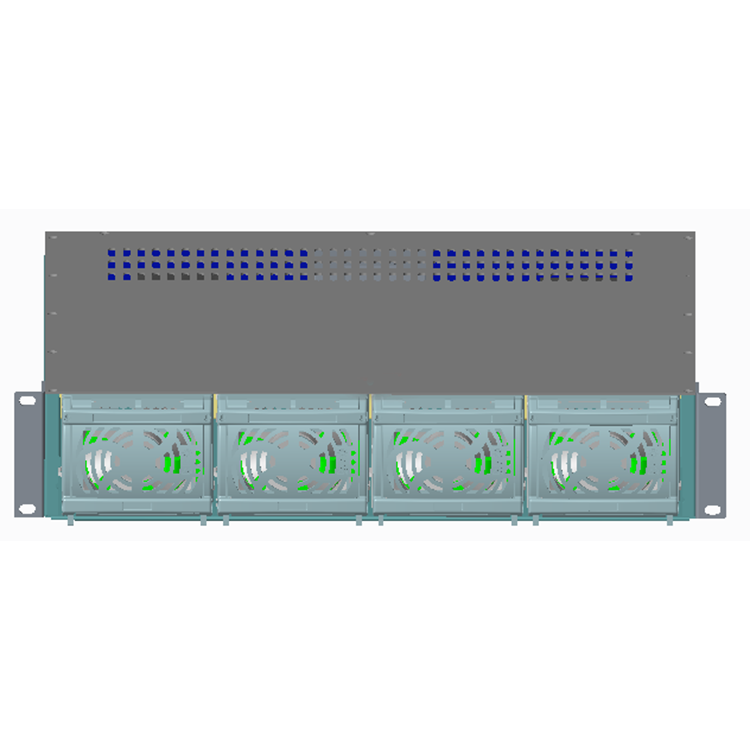

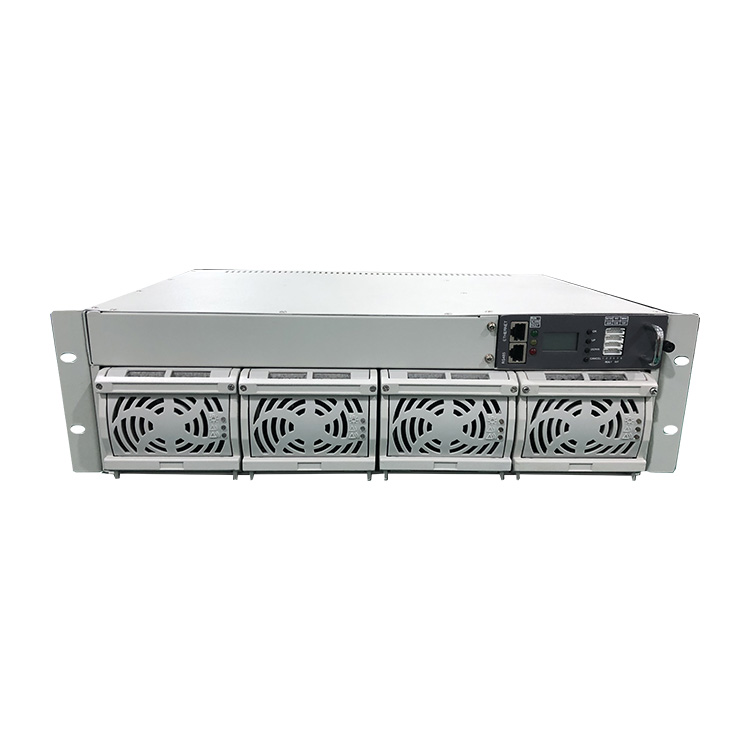

EVS110v dc rectifier use advanced modular design, with multiple rectifier modules together in one 19'' rack box. Makes it flexible to provide enough power supply for Telecom and Power Industrial equipment use.

The power output of rectifier can flexible configuration, depending on equipped different quantities of rectifier modules. It can provide stable DC output to regular load, battery float charging, and battery equalized charging. Output constant DC charge power, works automatically according to the load demands.

110v dc rectifierFeatures

* Modular design, N + 1, easy for expansion

* Hot-swappable modules, safe and convenient replacement

* Free output voltage regulation

* Free output current limit setting

* With a standard RS485/SNMP interface

* CE conformity

* Battery management include:
Real-time battery voltage monitoring;
Charge and discharge current;
Automatic control for boost charge and float charge;
Charge temperature compensation.

* Various protection function:
Input and output over /under voltage;
Over temperature;
Short circuit
