EVS 19 Inch 1U Rack Mount Power Supply 720W DC 12V System 30A/60A Battery Charger 500W Power 220V Din Rail for 60Hz 110V

1.power supply in embedded systemFeatures

1.power supply in embedded system adopts active power factor compensation technology, power factor up to 0.99.
2.input voltage of normal operating range as wide as 90 ~ 290Vac/100-400Vdc.
3.power supply in embedded system adopts full bridge soft switching technology, efficiency can reach above 92%.
4.Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.
5.Rectifier module adopts no damage hot insert and pull technology, replacement time less than 1min.
6.Network design, providing a variety of communication interfaces (for example: RS485, SNMP,MODBUS dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.
7.Complete fault protection, fault alarm function.
8.Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.
9.Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet requirements for conducted and radiated interference of"the communication power equipment electromagnetic compatibility Limits and methods of measurement"( People's Republic of China telecommunications industry standard YD/T983).
10.Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.

2.power supply in embedded system Configuration

3.power supply in embedded system work principle

4.power supply in embedded system performance index

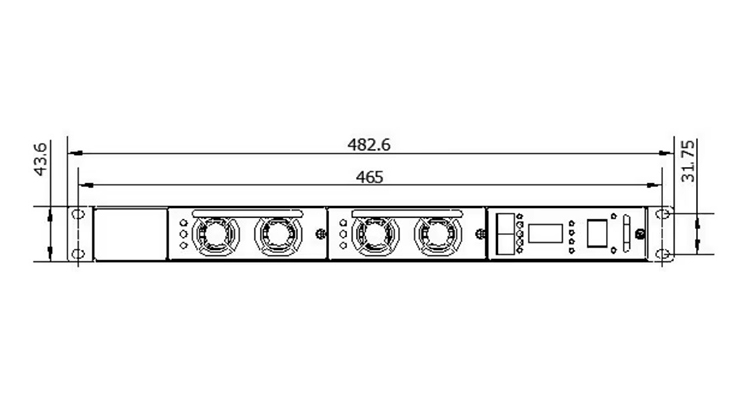

5.Power supply in embedded system Mechanical Properties:

482.6mm(W)×300mm(D)×43.6mm(H)
