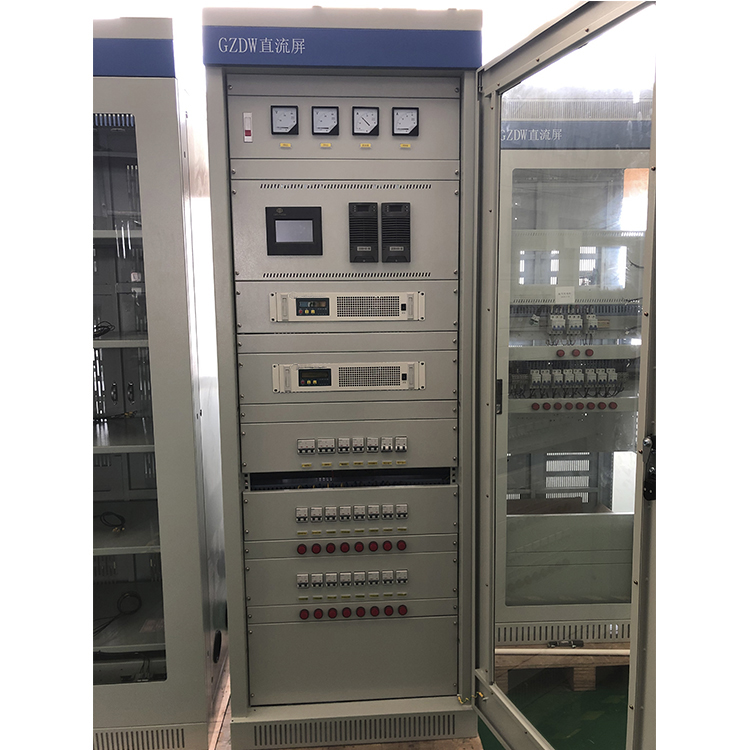

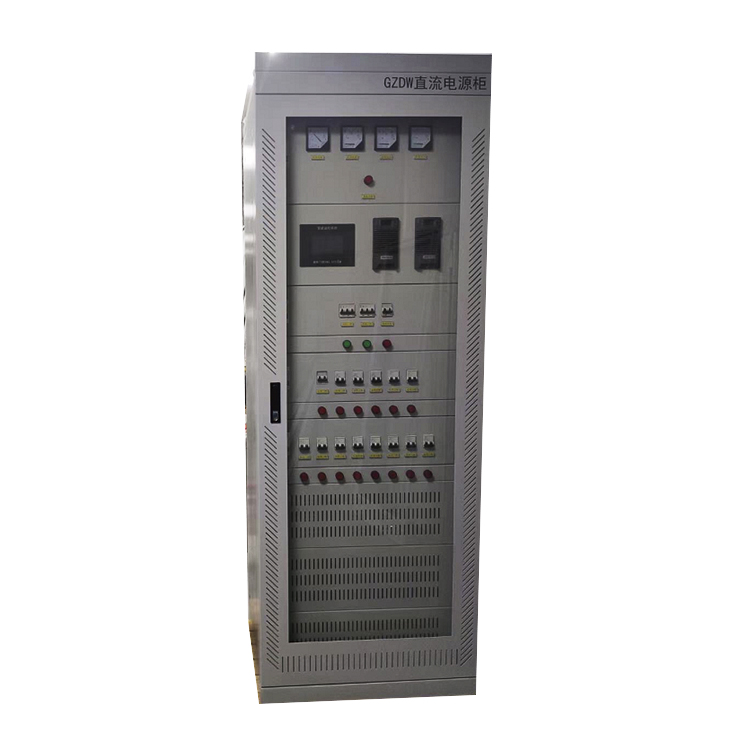

Electric Rectifier Module 380v to 110v DC Power Supply 110V 20A Charging Cabinet Switching Power Supply
- Input Voltage:323-475VAC
- Output Current:60 A
- Output Voltage:110V
- Model Number:GZDW-100AH/110V
- Brand Name:OEM ODM
- Place of Origin:Guangdong, China
- Application:Industry, Laboratory, Industrial Equipment, Machines, Battery Charging
- Efficiency:92%
- Output Frequency:50/60Hz
- Output Type:Single
- Protection:Overcurrent Protection, Over Temperature Protection, Overloading Protection, Over Power Protection, Overvoltage Protection, Undervoltage Protection
- Type:AC-DC, Electric power supply
- Function:electricity base stations
- Compatible Brand:Emerson
- Logo:Can be design according to customer
- Condutor:Rectifier Module
Features with the following specifications:

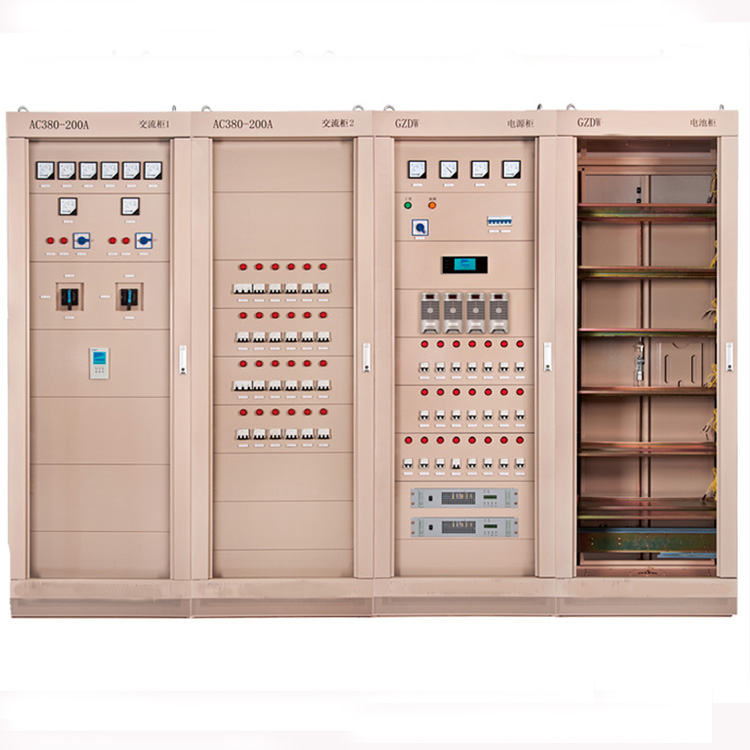

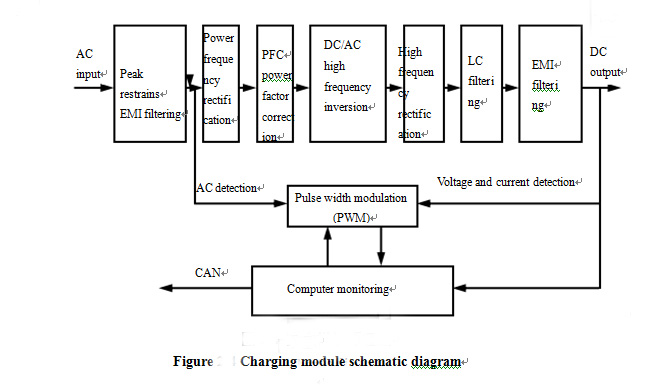

The power system comprises the AC input distribution, rectification, DC output distribution, and monitoring system. The four parts are in turn made up of different components as shown below:
Type | Name | Specification | |
Input | Input mode | 3-phase 4-wire system | |
Input voltage | 380Vac ± 15% | ||
Frequency | 45 ~ 55Hz | ||
Output | Output branch | Dependant on actual situation | |
Float Charge (FC) voltage | 198 ~ 260Vdc | 99 ~ 130Vdc | |
Boost Charge (BC) voltage | 220 ~ 286Vdc | 110 ~ 143Vdc | |
Ripple coefficient | ≤ 0.5% (typical: 0.5%) | ||
Voltage stabalization | ≤ ±0.5% (typical: 0.1%) | ||
Current stabalization | ≤ ±0.5% | ||
Inter-rectifier current imbalance | ≤ ±5% | ||
Protection | Input over-voltage switching point | 470 ± 5Vac | |
Input under-voltage switching point | 324 ± 4Vac | ||
Rectifier output under-voltage alarm | 198V | ||
Insulation | Output-ground | 2kVac, current leakage ≤30mA; time: 1min, no flashover | |
Input-ground | |||
Input-output | |||
Ambient temperature | Working ambient temperature | -5°C ~ 40°C | |
Storage ambient temperature | -25°C ~ 55°C | ||
Acoustic noise | ≤55dB (1m in front of the cabinet) | ||
Mechnical | Sizes (single cabinet) (H × W × D) | 2260 (or 2360) mm × 800mm × 600mm | |
1.Advanced Input Voltage Range: The Electric Rectifier Module 380v to 110v DC Power Supply features an advanced input voltage range of 323-475VAC, providing flexibility in various power applications and adaptability to diverse power grids worldwide.
2.Robust Output Current: With an output current of 60A, this power supply is designed to handle large and demanding applications, making it ideal for industry, laboratory, industrial equipment, machines, and battery charging systems.
3.Comprehensive Protection Measures: Equipped with multiple built-in protection features, the Electric Rectifier Module offers dependable safeguarding against overcurrent, over temperature, overloading, over power, overvoltage, and undervoltage risks, ensuring optimal system performance and durability.
4.High Efficiency and Versatile Compatibility: Enjoy high operational efficiency of 0.92 with this power supply, designed for single phase output and compatible with numerous industrial power standards, including Emerson.
5.Customizable Logo Design: The Electric Rectifier Module can be tailored to include your company's logo, showcasing a professional and personalized touch, making it an excellent fit for electricity base stations employing branded operations.
