    230V AC 150V DC Industrial Charging Module 20A Output Current 220V Switching Power Supply 150V DC Converter 20A Output Current

    EVS2U-15020S
    minimum order:
    1 piece
    Quantity:
    $200.00 - $260.00 / piece
    Contact Now
    add to cart
    • Input Voltage:220 V
    • Output Current:20A
    • Output Voltage:150VDC
    • Model Number:EVS2U-15020S
    • Brand Name:OEM ODM
    • Place of Origin:Guangdong, China
    • Application:Industry, Industrial Automation
    • Efficiency:92%
    • Output Frequency:50/60Hz
    • Output Type:Single
    • Protection:Overloading Protection, Over Temperature Protection, Overvoltage Protection
    • Type:AC-DC, DC-DC
    • Function:Telecom base stations
    • Logo:Can be design according to customer
    • Condutor:Rectifier Module
    • Colors:RAL7035 or RAL9004
    • Size:482*310*88mm

    Our products








    Features with the following specifications:





    The power system comprises the AC input distribution, rectification, DC output distribution, and monitoring system. The four parts are in turn made up of different components as shown below:


    1. AC input distribution: AC distribution cabinets.

    2. Rectification: red insulation diodes.

    3. DC output distribution: diodectifiers an chain, insulation status detector, switching branches (connected to the switching bus), and control branches (connected to the control bus).

    4. Monitoring system: power control unit (PCU) and power distribution monitoring box.

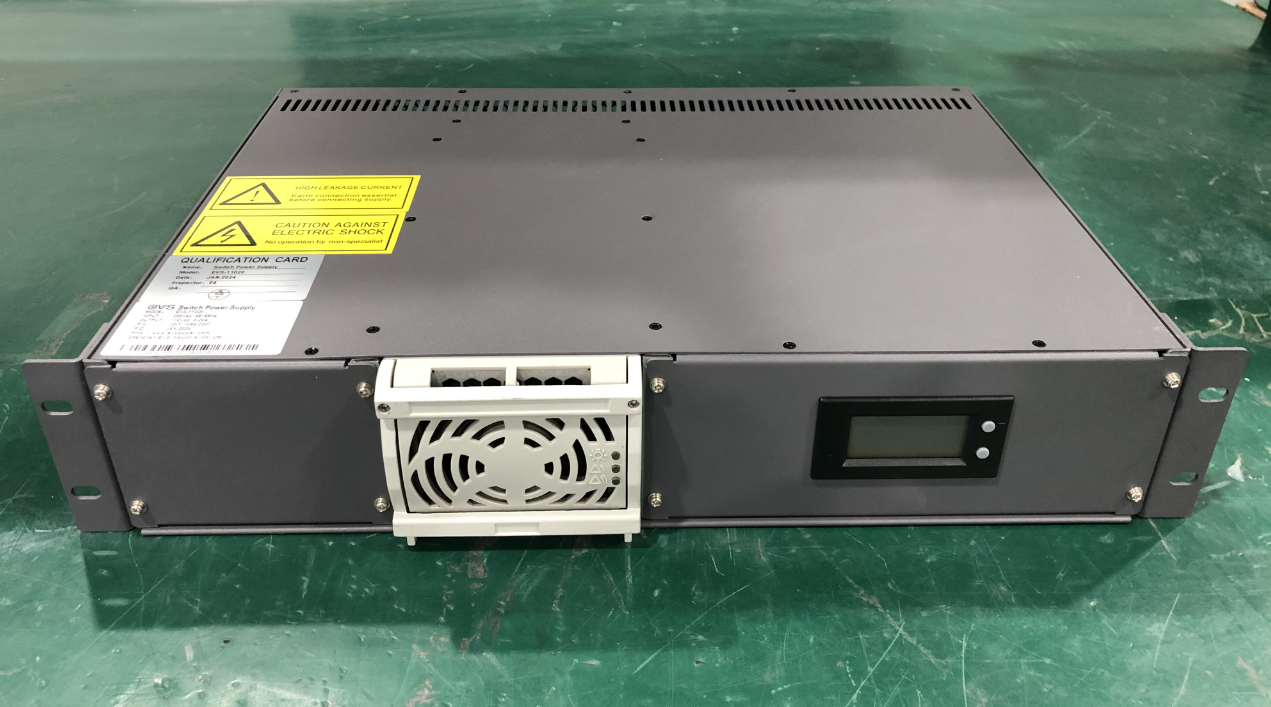

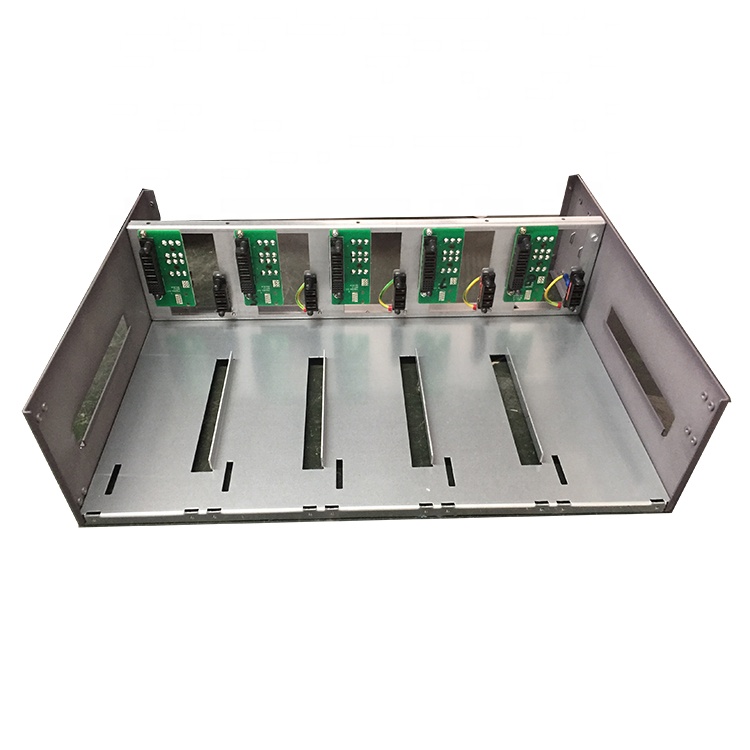

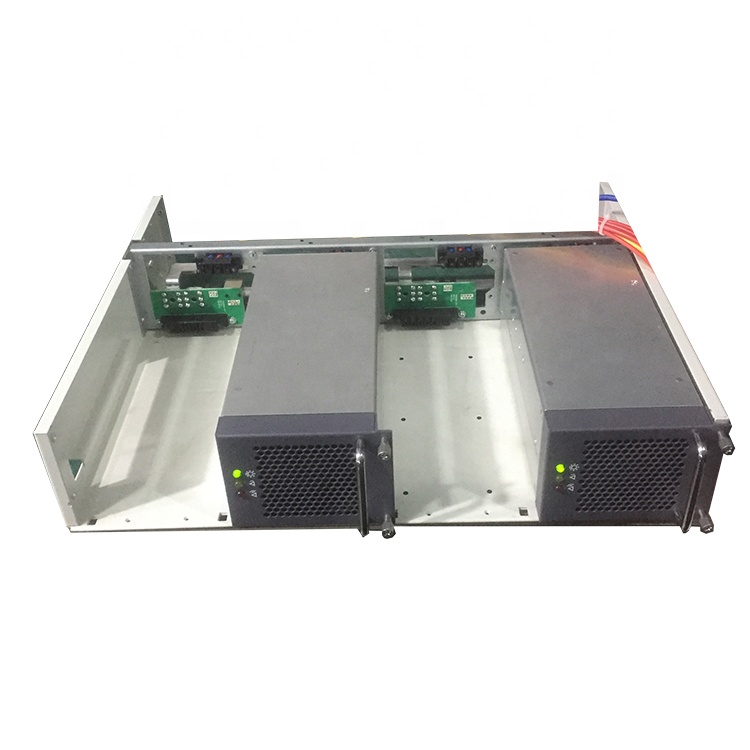

    Modular rack rectifier system
    Input voltage 220VAC
    Output voltage 110Vdc20A / 220V10A
    Output power :2900W (176VAC~264VAC Input)

                           1200W (90VAC~175VAC Input)




















































    110v dc power supply performance index input


    Parameter


    Min.


    Rated


    Max.


    Unit


    Note


    Rated working voltage range


    110/220


    Vac



    Input voltage range


    90


    220


    264


    Vac


    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC


    Input frequency


    45


    50


    65


    Hz



    Power Factor

    		    ≥0.98@220VAC@117V / 20A




















































    110v dc power supply performance index output


    Parameter


    Min.


    Rated


    Max.


    Unit


    Note


    Output voltage range


     100


    117


     156


    Vdc

    		 117VDC,99~143V adjustable

    Output current range


    (max.current)


    0


    20


      A


    input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.


    Current Sharing


    		   ±5%



    Output Protection


    		    Over voltage protection,Under voltage protectionOver temperature protection,Hot-swappable Internal failure isolated diode Short circuit protection
