220VDC Switch Mode Rectifier Module 40A DC Power Supply AC DC Conversion 380V Input Voltage for Industrial Use 5V Output Voltage

EVS6U-11080D, EVS6U-22040D

minimum order:

1 piece

Quantity:

$650.00 - $800.00 / piece

Contact Now

add to cart

Input Voltage:220 V, 380 V
Output Current:40 A
Output Voltage:220 V
Model Number:EVS6U-11080D, EVS6U-22040D
Brand Name:OEM ODM
Place of Origin:Guangdong, China
Application:Industry, Laboratory, Industrial Equipment
Efficiency:92%
Output Type:Single
Protection:Over Power Protection, Over Temperature Protection, Overvoltage Protection, Overcurrent Protection
Type:AC-DC, DC-DC, 220v ac to 220v dc power supply
Function:Hydropower station, machine room, thermal power station, power station
Rectifier module:110V20A,220V10A
Redundancy backup:hot swap
Condutor:Battery Charging
Warranty:12 months
SIZE:482mm*300mm*266mm

Our products

220v ac to 220v dc power supply features with the following specifications :

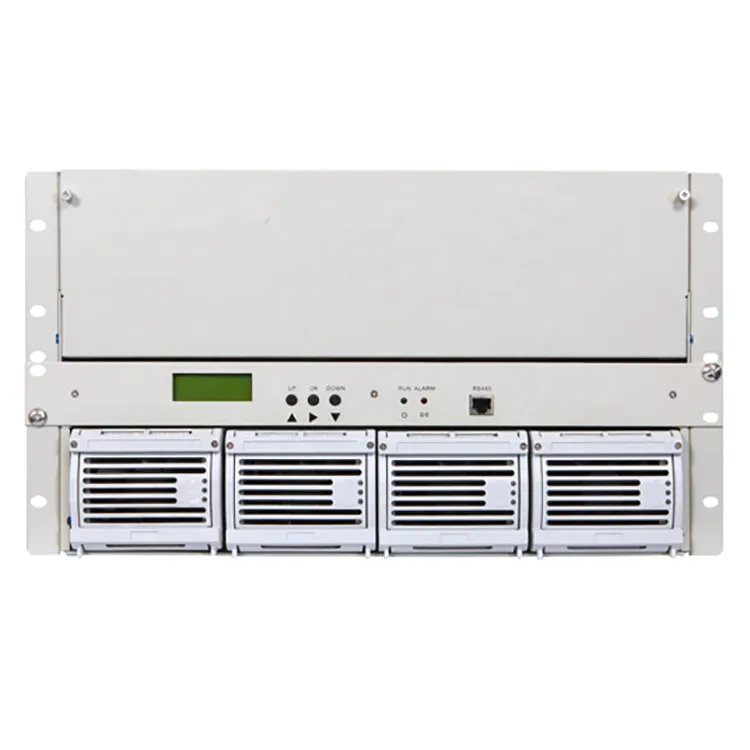

1. Small size, height 6U, 4*20A rectifier module
2. Configurable module: 10A, 20A for option
3. The standard 19-inch installation
4. Improve monitoring and management and battery management
5. Provide RS485 SNMP communication interface
6. Battery anti-reverse function
7.Support module anti-theft function
8. Support hot-swappable
9. The energy-saving sleep function
10. Standard 19-inch rack system

220v ac to 220v dc power supply performance index input
Parameter	Min.	Rated	Max.	Unit	Note
Rated working voltage range		110/220		Vac
Input voltage range	90	220	300	Vac	Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Output voltage range	90	117	156	Vdc

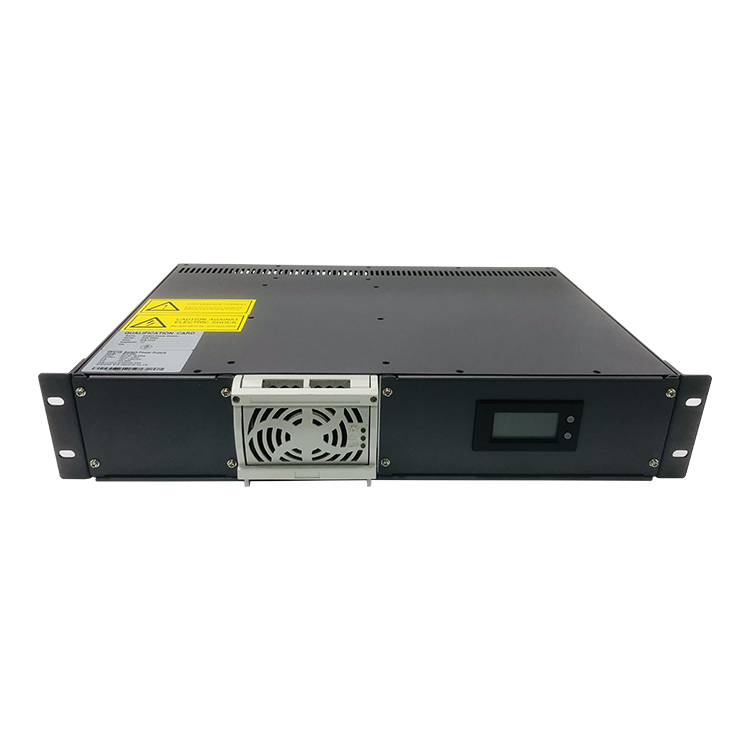

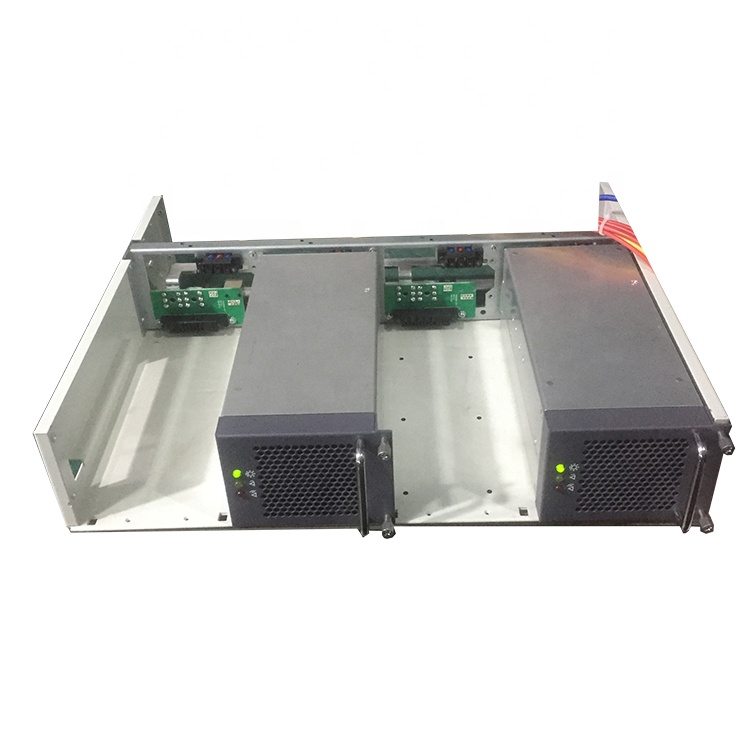

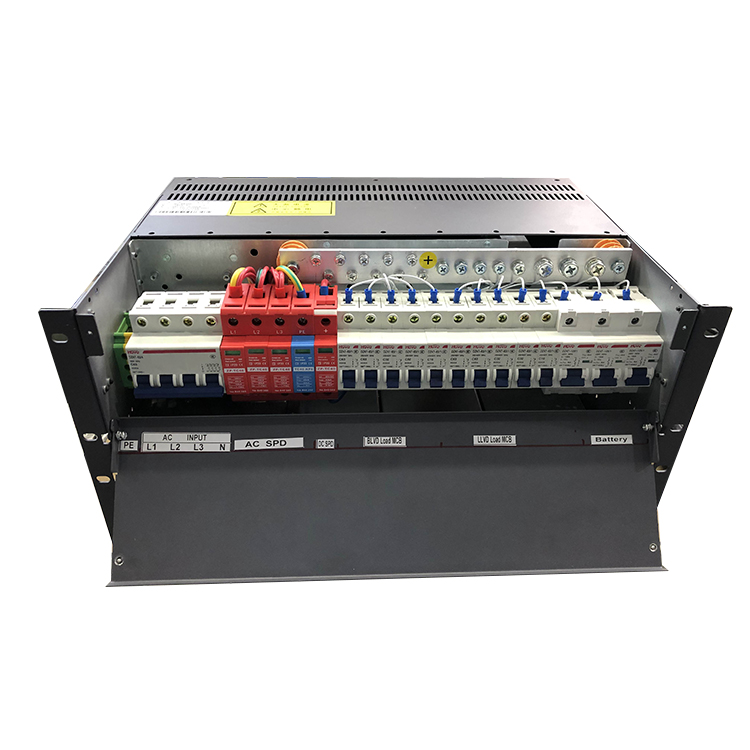

product details

Installation site
