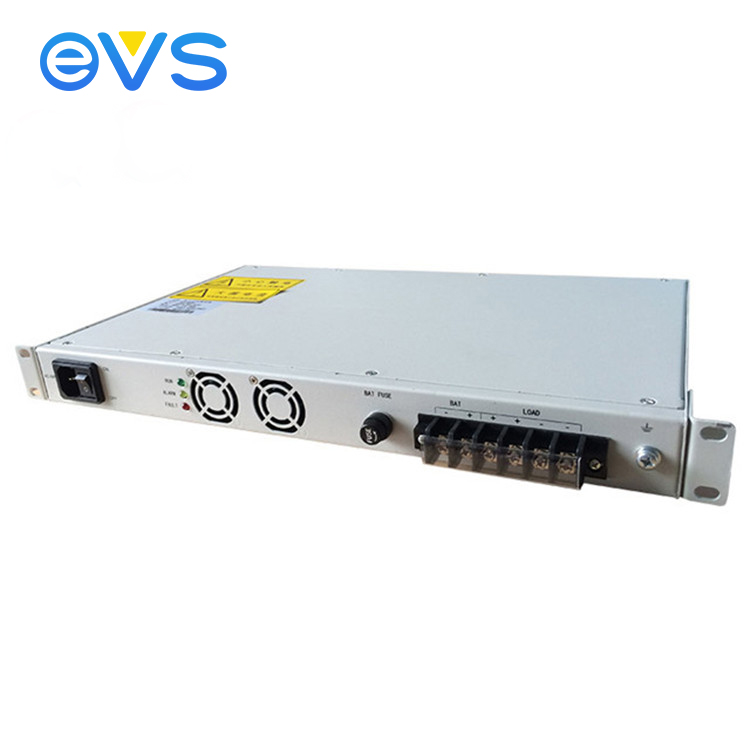

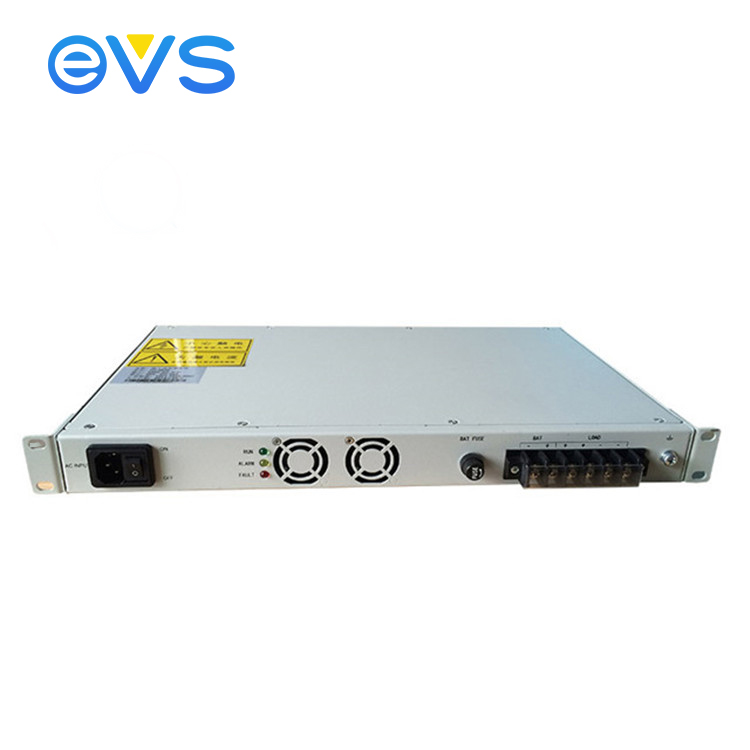

    2025 New Advanced 48V 800W Industrial Switching Power Supply Inverters & Converters

    EVS1U-4830A
    minimum order:
    1 piece
    Quantity:
    $160.00 - $180.00 / piece
    Contact Now
    add to cart
    • Output Current:30 A
    • Phase:Single Phase
    • Type:AC/DC Converter, 48v switching power supply
    • Model Number:EVS1U-4830A
    • Brand Name:EVSPOWER, dc converter 48v 800w
    • Place of Origin:Guangdong, China, Shenzhen, China (Mainland)
    • Application:Industrial, for Telecom Equipment,Battery Charging
    • Efficiency:92%
    • Network:SDK
    • Output Type:Single
    • Size:482*253*44mm
    • Weight:5kg
    • Output Power:500W-1500W
    • Use in:exchange room, server room,base station,data communication



    48v switching power supply Main features
    Wide input voltage range, output voltage can be fine-tuned
    connected to battery, with charge/discharge management function High accuracy of voltage stabilization, small output noise ripple;
    Overload, overvoltage, overcurrent, over temperature, undervoltage, short-circuit and other protections
    Intelligent temperature control cooling fan
    Can be used in parallel with more than one equalizing current (optional when ordering)
    Standard 19-inch rack mount
    AC220V and DC220V dual input can be customized (optional when ordering)



    48v switching power supply Input



    Parameter



    Min.



    Rated



    Max.



    Unit



    Note



    Rated working voltage range





    110/220





    Vac





    Input voltage range



    90



    220



    290



    Vac



    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC



    Input frequency



    43



    50



    67



    Hz





    Battery input



    43.2



    53.5



    58



    Vdc



    Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)




    48v switching power supply Output



    Parameter



    Min.



    Rated



    Max.



    Unit



    Note



    Output voltage range



    42



    53.5



    58



    Vdc





    Output current range



    (max.current)



    0





    30



    A



    Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.



    Regulation accuracy







    ±1



    %





    Load regulation







    ±1



    %





    Source regulation







    ±1



    %





    Current sharing regulation







    ±5



    %





    Ripple ( peak – peak value)







    200



    mv



    Network 20MHztesting.



    Output efficiency



    91



    93





    %



    220Vac Input
