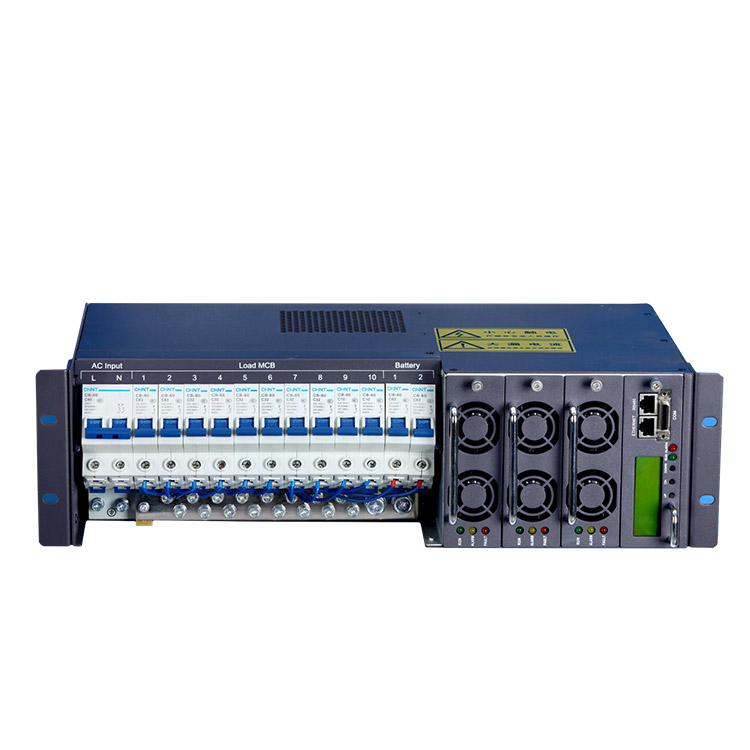

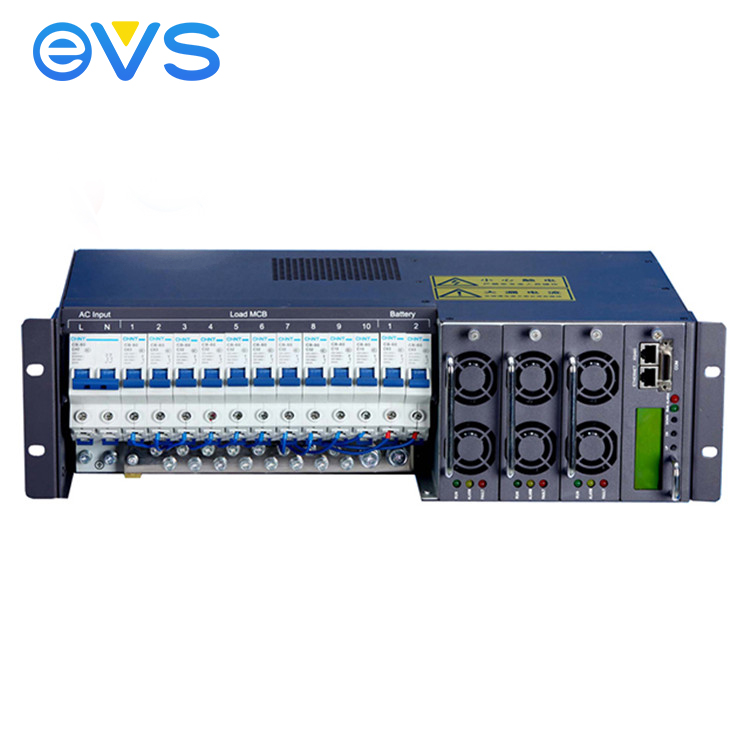

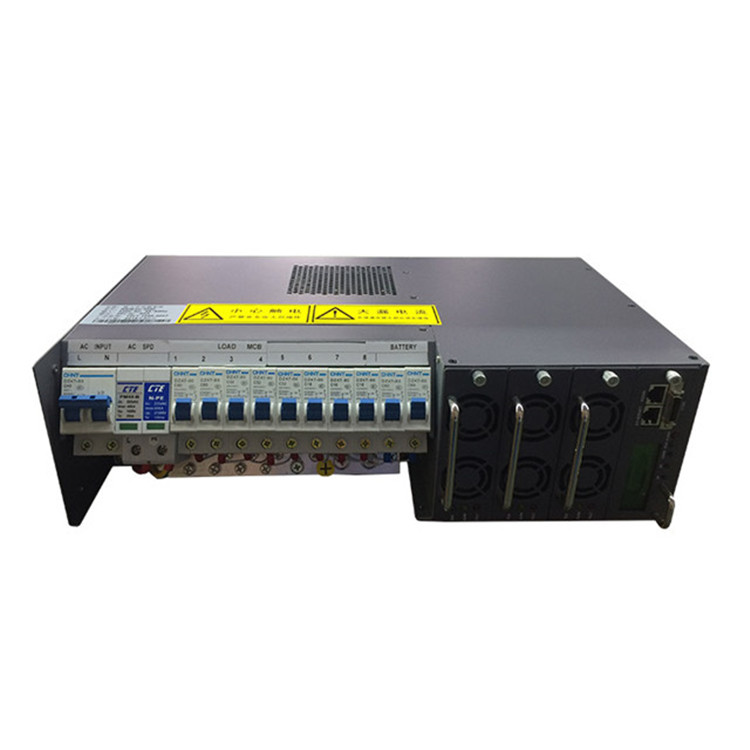

24V DC 90A 100A 3U Embedded Power Supply 500W Output Industry Rack Mount 24VDC 60Hz Frequency Communication Room 220V Input
- Input Voltage:90-280VAC
- Output Current:10-90A
- Output Voltage:24 V
- Model Number:EVS2490
- Brand Name:OEM ODM
- Place of Origin:Guangdong, China
- Application:Industry, Laboratory, Battery Charging, Industrial Equipment
- Efficiency:92%
- Output Type:Single
- Protection:Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection, Over Power Protection
- Type:AC-DC, telecom rectifier power
- Function:24v dc power supply
- Logo:Customer
- Condutor:24v Rectifier
- Colors:RAL7035 or RAL9004
2. Hot swappable and Plug and Play;
3 .N+1 redundancy,each module available in 30A@24Vdc;
4 .AC /DC distribution system for AC input/ DC output distribution and protection;
5. RS485, Modbus,SNMP communication for remote control;
6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;
7.High Efficiency with low EMI. CE Safety and EMC certification
8. the system has high power factor greater than 0.98;
9. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;
10.Small size, height 3U, 3*24V30A evspower rectifier module
| 24v dc power supply integration | |||||
| Optional | Rectifier | Module max | Distribution | Monitoring | Remark |
| Configuration | 30A | 1-3 pcs | AC distribution: AC220V input, Load output:10A-90A | Monitor | Specific index refer to module specification |
| Product Name | 24v dc power supply for communication |
| Model | EVS2490-3U |
| Rated capacity | 90A/2600W |
| AC INPUT | |
| AC INPUT(AC) | 230Vac |
| AC INPUT RANGE | 90Vac~175Vac/176Vac~280Vac |
| MAX INPUT CURRENT | 29.4A |
| Input frequency | 45-65 Hz |
| Power Factor | ≥0.98 |
| DC INPUT | |
| DC INPUT(DC) | 230Vdc |
| Conversion efficiency | 92% |
| DC OUTPUT | |
| Output Rated voltage | 24V / 26.8V( Connect battery) |
| Rated output current | 90A |
| Maximum output power | 2700W |
| Load shunt | 8 channel load output |
| Battery shunt | 2channel battery output |
| Battery LVD | 100A *1 |
| Connection mode | Front connection |
| Rectifier module | R2430*3pcs |
| Monitor module | 1pcs |
| Multinomial function | RS485 SNMP communication interface |
| Autonomous current sharing | |
| Parallel connection is realized by current sharing assembly | |
| Remote control/ switch machine | |
| Hot swap | |
| Dormancy energy saving | |
| Features Protection features | Input overvoltage protection, output overvoltage protection, output overcurrent protection, Over temperature and low temperature protection, short circuit protection, sleep energy saving function |
| Operating environment | |
| Operating temperature | -40℃ - +70℃ |
| Humidity | 95% non-condensing |
| Atmospheric pressure | 70 -106 KPa |
| Altitude | 0 - 3000M |
| Cooling method | Fan forced cooling |
| Safety characteristics | Input - Output 3000Vdc / 10mA / 1min No flash, no breakdown |
| Input - Output 1500Vdc / 10mA / 1min No flash, no breakdown | |
| Output - Case 700Vdc / 10mA / 1min No flash, no breakdown | |
| Weight (net weight/gross weight) Kg | 15KG |
| Machine size | 482mm(W)×132mm(H)×280mm(D) |
