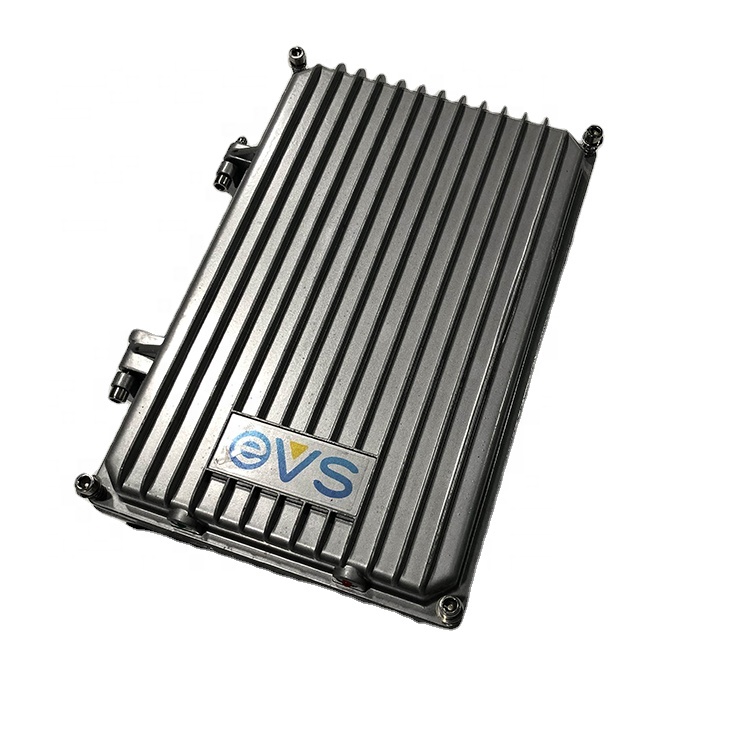

    Hot Selling 2000W Outdoor Power Cabinet 600V to 48V DC-DC Converter 40A Output Current Waterproof for Industrial Use

    EVS-2000W
    minimum order:
    1 piece
    Quantity:
    $110.00 - $130.00 / piece
    Contact Now
    add to cart
    • Input Voltage:600VDC
    • Output Current:30A
    • Output Voltage:48VDC
    • Model Number:EVS-2000W
    • Brand Name:EVS
    • Place of Origin:Guangdong, China
    • Application:Industry, Laboratory, Industrial Equipment
    • Efficiency:94%
    • Output Frequency:50/60Hz
    • Output Type:Single
    • Protection:Over Power Protection, Overloading Protection, Over Temperature Protection, Overvoltage Protection, Overcurrent Protection
    • Type:DC-DC, 48V DC Outdoor power cabinet for telecommunication cabinets
    • Function:voltage conversion
    • Input Volage:400-800VDC
    • Output Volage:48vdc 2000W
    • Logo:EVSPOWER
    Product Category
    waterproof outdoor power cabinet


     600V to 48V DC-DC Converter Features with the following specifications:

    EVS-2000W is a kind of DC / DC high-power power supply with single output.

    600v to 48v dc dc converter adopts the latest circuit design, with compact structure and reliable performance.

    600v to 48v dc dc converter has high stability precision and high output efficiency. Wide range of input voltage, input with over-voltage protection, output with short-circuit protection, over-current protection and over temperature protection, cooling system adopts natural heat dissipation. The whole power supply is designed in strict accordance with the requirements of safety regulations, and meets the requirements of information technology equipment safety standards.

    EVS-2000w 600v to 48v dc dc converter has the following characteristics:

    it has d-level lightning protection capability, outdoor high dust-proof and waterproof design, protection grade IP65, direct contact heat dissipation at the bottom, metal shell, power shell and cable connector need to be equipped with anti off screw, supporting four installation methods of wall hanging, holding pole, steel belt holding pole and landing.

    1,Rectifier module adopts active power factor compensation technology, power factor up to 0.99.
    2,DC input voltage of normal operating range as wide as 400~800Vdc
    3,Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 94%.

    600v to 48v dc dc converter performance index input

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Rated working voltage range
    		480
    Vdc

    Input voltage range
    		400600800
    Vdc

    Output voltage range

    42

    48

    58

    Vdc
