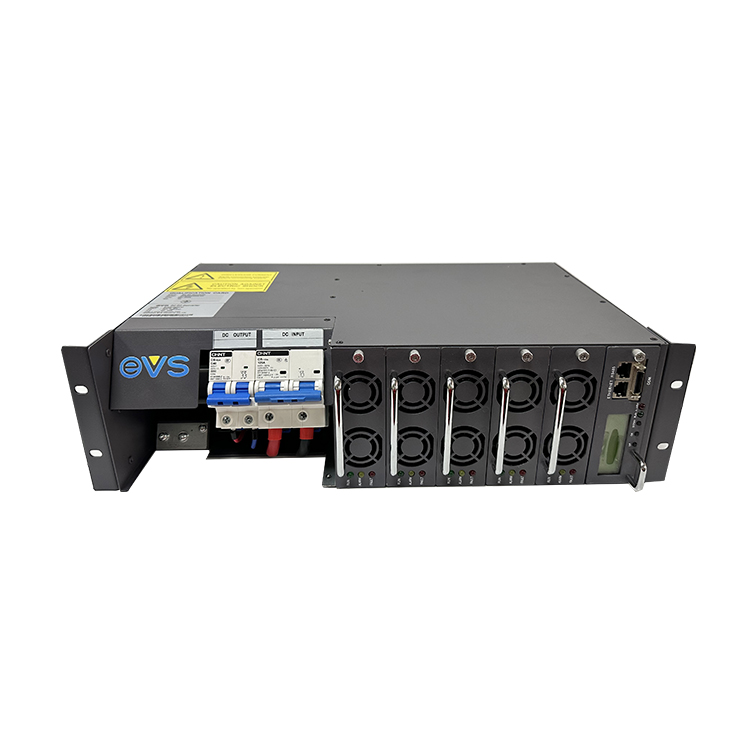

    OEM Customizable 48v 24v Single Output Power Converter 5000W DC/DC Inverter with 50Hz Frequency for Air Conditioner Motor

    EVS4824-100
    minimum order:
    1 piece
    Quantity:
    $500.00 - $650.00 / piece
    Contact Now
    add to cart
    • Output Current:50A-250A
    • Output Frequency:50Hz/60Hz
    • Phase:Single Phase
    • Type:DC/DC Converters
    • Model Number:EVS4824-100
    • Brand Name:OEM
    • Place of Origin:Guangdong, China
    • Application:Industrial, Air Conditioner, charge battery and use for DC loads
    • Efficiency:92%
    • Network:SDK
    • Output Type:Single
    • Size:482*132*300(mm)
    • Weight:13KG
    • Inverter type:DC/DC converter
    • Display:LED+LCD
    • Warranty:1 Year
    • MTBF:≥100000 hours
    • Customized support:Software reengineering
    • Certificate:CE
    Our products




    DC DC boost step up power supply module 40V-60V to output 24V 50A-250Amps boost converter

    Features with the following specifications:

    Application
    Small size program-controlled switches
    Access network
    Transmission equipment
    Mobile communication
    Satellite communications ground station
    Microwave communication power supply

    Features
    1. Environmental conditions
    Working temperature: -15 ~ +45℃
    Storage temperature: -40 ~ +70℃
    Relative humidity: ≤90% (40±2℃)
    Atmospheric pressure: 70~106kPa
    2. DC input
    DC input rated voltage: 48V
    Voltage range: 40V~60V
    Maximum input current: 30A
    3. DC output
    Rated output voltage: 24V
    Factory setting voltage: 26.5V
    Rated output current: 50A
    4. Output noise
    Telephone weighing noise: ≤2mV
    Broadband noise: ≤20mV (3.4kHz-150kHz)
    ≤20mV (150kHz-30MHz)
    Discrete frequency noise: less than 5mV at 3.4~150kHz
    Less than 3mV at 150~200kHz
    Less than 2mV at 200~500kHz
    Less than 1mV at 0.5~30MHz
    Peak-to-peak noise: ≤200mV (within 20MHz bandwidth)
    5. Voltage regulation accuracy
    Voltage regulation rate: ≤±0.1%
    Load regulation rate: ≤±0.2%
    Voltage regulation accuracy: ≤±0.3%
    6. Working efficiency
    Efficiency ≥87%
    7. Dynamic load response:
    When the load current changes stepwise within 25% to 50% and 50% to 75% of the rated value, the load effect recovery time is
    200μS, and the overshoot is ±0.6%
    8. Safety protection function
    1) The input overvoltage protection point is 60.5±0.5VDC, and it can automatically resume work.
    2) The output overvoltage protection point is 30VDC, overvoltage lock, and can only be restarted after the fault is eliminated.
    3) Current limiting protection, 125A current limiting.
    4) Short circuit protection. Current limiting retractable short circuit protection, retracting current ≤5A, can automatically
    resume work.
    5) Overheat protection. Detect the radiator temperature. When the radiator temperature is greater than 85℃, the module
    automatically shuts down and automatically resumes work after the temperature drops.
    6) Module parallel protection. The module output has insurance. When the module is short-circuited internally, the insurance is
    disconnected, and the module is out of the system.
    9. Electrical insulation
    1) Insulation resistance: A DC voltage of 500V is applied between the DC part, input part and ground phase, and the insulation
    resistance is greater than 10MΩ.
    2) Insulation strength: A 50Hz AC voltage of 2000V is applied between the AC input terminal and the shell and between the AC input
    terminal and the DC output terminal, and there is no breakdown for one minute and the leakage current is less than 30mA; a 50Hz AC
    voltage of 500V is applied between the DC output terminal and the shell, and there is no breakdown for one minute and the leakage
    current is less than 30mA.

    Parameter
    Min.
    Rated
    Max.
    Unit
    Rated working voltage range
    48
    Vdc
    Input voltage range
    40
    48
    66
    Vac
    Input frequency
    47
    50
    63
    Hz

    DC DC Converters for System integration
    Optional
    Rectifier
    Module
    Distribution
    Monitoring
    Remark
    Configuration
    24V50A
    1-2pcs
    DC48V input,
    output:50A-250A
    Monitor
    Specific index refer to module specification


    Hong Kong Electronics Fair on 2015-11-14 October

    CES,7-10 jan,2014,Enthusiasm for customer to answer questions



    On IFA,6-13 September,2013

    13 - 16 April,2012,on Hong Kong


    with Universities


    South University of Science and Technology of China

    Sun Yat-sen University, SYSU

    Shenzhen University

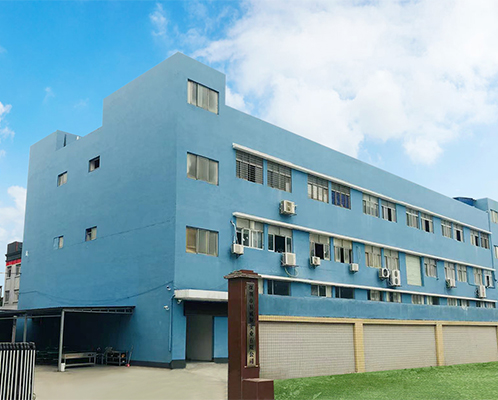

    Company Profile
