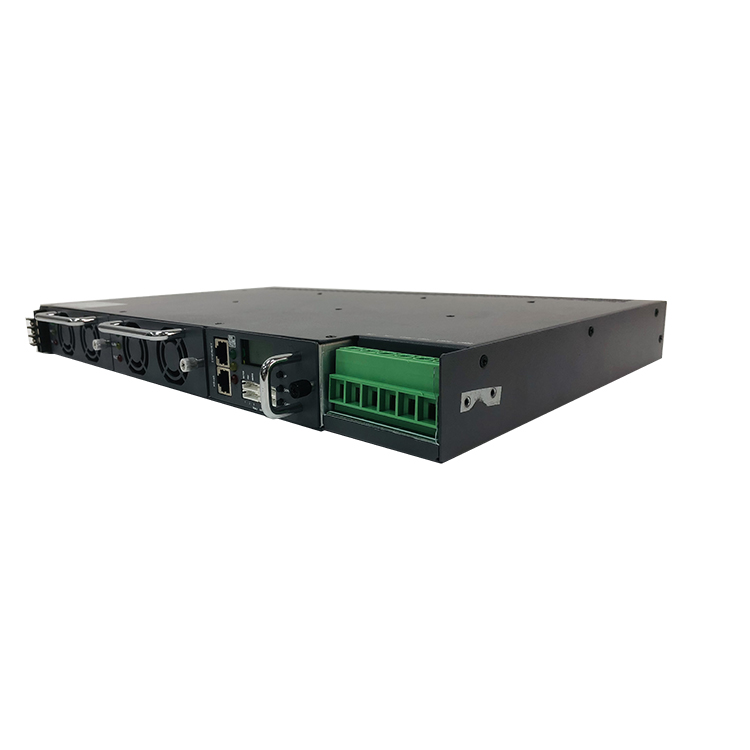

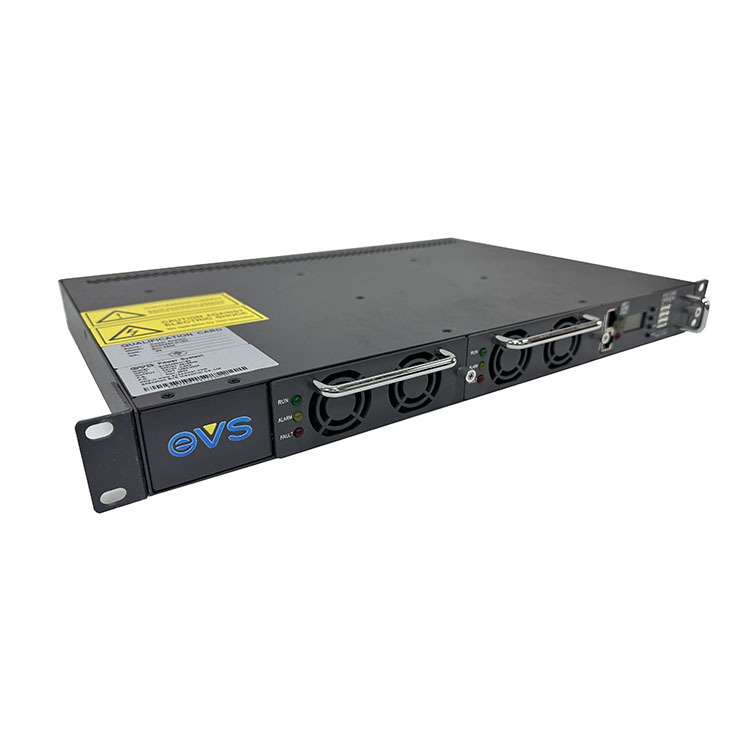

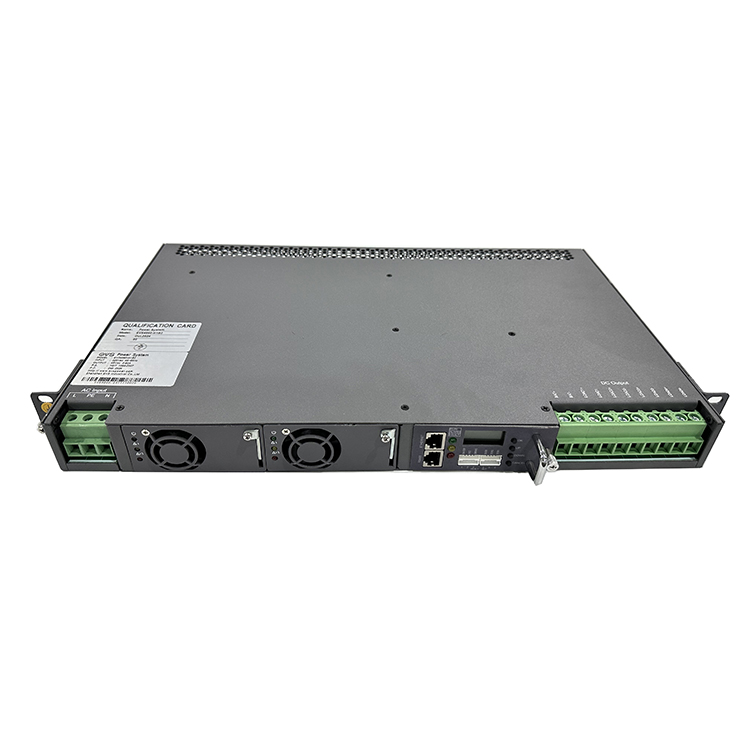

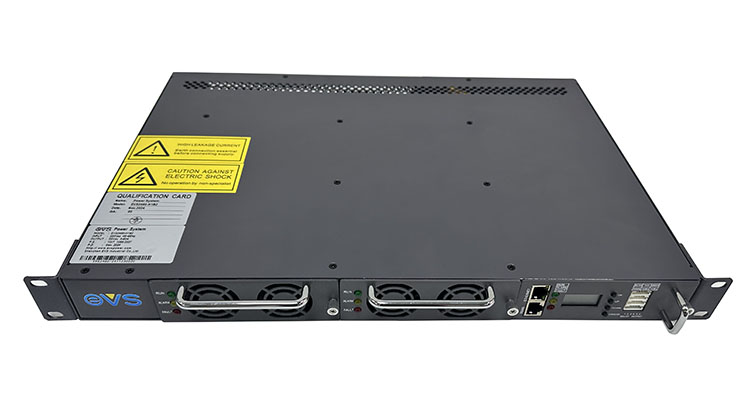

Customizable 110v 230v Industrial UPS 220v Input 24v Output Switching Power Supply

EVS2460

minimum order:

1 piece

Quantity:

$318.00 - $345.00 / piece

Contact Now

add to cart

Input Voltage:80-300Vac
Output Current:50 A, 60 A
Output Voltage:24 V
Model Number:EVS2460
Brand Name:OEM ODM
Place of Origin:Guangdong, China
Application:Industry
Efficiency:92%
Output Frequency:50/60Hz
Output Type:Single
Protection:Over Power Protection
Type:AC-DC, telecom rectifier for switching power supply
Function:Telecom base stations
Rectifier:Hot Swap
Logo:Can be design according to customer
Condutor:Rectifier Module
Colors:RAL7035 or RAL9004

Product Overview

24V 60A DC POWER SYSTEM

•Compact structure, high power density
• 21-27V constant current output, 27-29V constant power output
•Output voltage adjustable within 21-29Vdc, default voltage: 26.5V
• Wide operating temp. range: -40~+55ºC, extended operating temperature range: +55 ~ +65ºC
• Power factor correction: ≥0.99
• RS485 communication port
• Input over/ under voltage protection
• Output over voltage protection
• Output over current protection
• Over temperature alarm and protection
• Parallel connection via current sharing bus
• Remote startup/shutdown
• Hot swappable
• High efficiency ,more than 90%

FEATURES AT A GLANCE

Model	EVS24600-H1A2
Rated Output Current	60A
Rated Output Voltage	26.5Vdc (21-29 Vdc)
Output Power	1500W
AC Input	220V（90-290VAC）
AC Input Frequency	45Hz ~65Hz
AC input Power Factor	≥0.99
AC transfer Efficiency	≥95.5%
Current Share	±5%
Load Regulation	≤0.5%
Voltage Regulation	≤0.1%
Slots for Rectifier Module	2 pcs
Rectifier Module	EV4830R*2
Controller	EVS-G*1
Alarm Relay	6pcs
DC Distribution	customizable
