    Outdoor Waterproof Cabinet for Telecommunications Industry Switching Power Supply Applied

    EVS48200Te
    minimum order:
    1 piece
    Quantity:
    $1000.00 - $2000.00 / piece
    Contact Now
    add to cart
    • Place of Origin:Guangdong, China
    • Brand Name:OEM ODM
    • Model Number:EVS48200Te
    • Output Type:Single Phase
    • Input Voltage:230V/380V
    • Output Voltage:54V
    • Output Frequency:50/60Hz
    • Output Current:10A-600A
    • Type:telecom rectifier for switching power supply
    • Function:Telecom base stations
    • Compatible Brand:Emerson, Huawei, ZTE,vapel, Eltek
    • Logo:Can be design according to customer
    • Condutor:Rectifier Module
    • Warranty:Within One Year
    • Colors:RAL7035 or RAL9004
    • Size:600mm*600mm*2000mm

    Our products


    Features with the following specifications:


    1,Rectifier module adopts active power factor compensation technology, power factor up to 0.99.
    2,AC input voltage of normal operating range as wide as 90 ~ 290V.
    3,Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.
    4,Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.

    Outdoor waterproof cabinet performance index input

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Rated working voltage range

    110/220

    Vac

    Input voltage range

    90

    220

    290

    Vac

    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC

    Input frequency

    43

    50

    67

    Hz

    Battery input

    40

    48

    60

    Vdc

    Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)

    Outdoor waterproof cabinet performance index output

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Output voltage range

    42

    48

    58

    Vdc


    Output current range


    0

    100

    A

    input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.
    product details



    Company information



    Why choose us





    Process

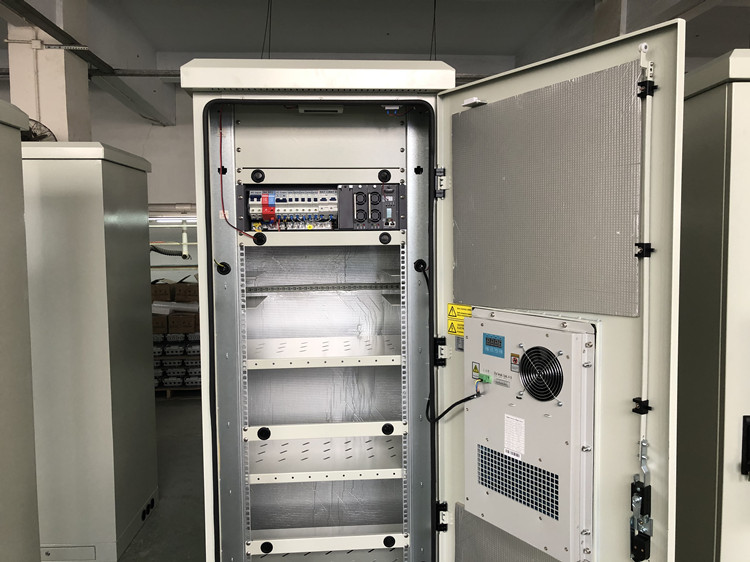

    Installation site





    FAQ




    Q1.Why choose us?

    Shenzhen Evs Industrial Co., Ltd. offer you the best quality products and service. Win to win
    business is our first principle.

    Q2.Whom we are ?
    Shenzhen Evs Industrial Co., Ltd. is a professional manufacturer which combine production
    and trade. Now the company have two brand evs and huaqiang power. The products series
    contain high ,middle and low level range products. The products is highly used for all brands of
    Switching Power Supply,mobile phones , PC , DC ,TV PSP ,laptop and so on electronic products.

    Q3.Are you a factory or trading company?
    A: Yes, we are date cable manufacturer,supply OEM/ODM service.

    Q4, Can you open mould as customer request.
    A: Yes , we can

    Q5.How about your After sales-service?
    A: 1.Guarantee time: one year
    2.Spare parts: 0.3% spare parts will be shipped with your order.
    3.Return policy: we can exchange goods if quality problem.

    Q6.Our Payment & Logistics?
    1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypa
    2.Shipping terms: Ship,DHL, UPS, FEDEX, TNT, EMS
    3.Sample order delivered within 24 hours , order lead time within 3 days

    Q7.Sample available: Yes




    Q8.What can you get from us?

    1.Excellent products (unique design, strict quality control )
    2.Great service(OEM,ODM, after-sales services, fast delivery)
    3.Professional business consultation.
