EVS 6000W Electric Rectifier Power Supply 40amp 220V Switching Industry 40A 20A 10A Output Currents 60Hz Frequency 380V Input

• Input Voltage:220 V, 380 V
• Output Current:40 A
• Output Voltage:220Vdc
• Model Number:EVS22040-H3A4
• Brand Name:EVS
• Place of Origin:Guangdong, China
• Application:Industry, Industrial Equipment, Battery Charging, Modular Rectifier
• Efficiency:92%
• Output Frequency:50/60 Hz
• Output Type:Single
• Protection:Overcurrent Protection, Overloading Protection, Over Power Protection
• Type:AC-DC
• Input voltage:90-280VAC& 110-395VDC
• Work temperature:-40 ~ +55℃
• Size:482*400*132mm
• Communication:RS485/MODBUS/SNMP
• Module:hot swap
• Controller:hot swap

220 ac to 220v dc converter with 10A Modular Rectifier

220 ac to 220v dc converter adopts active power factor compensation technology, power factor up to 0.99.
 input voltage of normal operating range as wide as 90 ~ 290Vac&110-395Vdc.
 Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.

 Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet   requirements for conducted and radiated interference of"the communication power equipment   electromagnetic compatibility Limits and methods of measurement"( People's Republic of China   telecommunications industry standard YD/T983).
 Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.

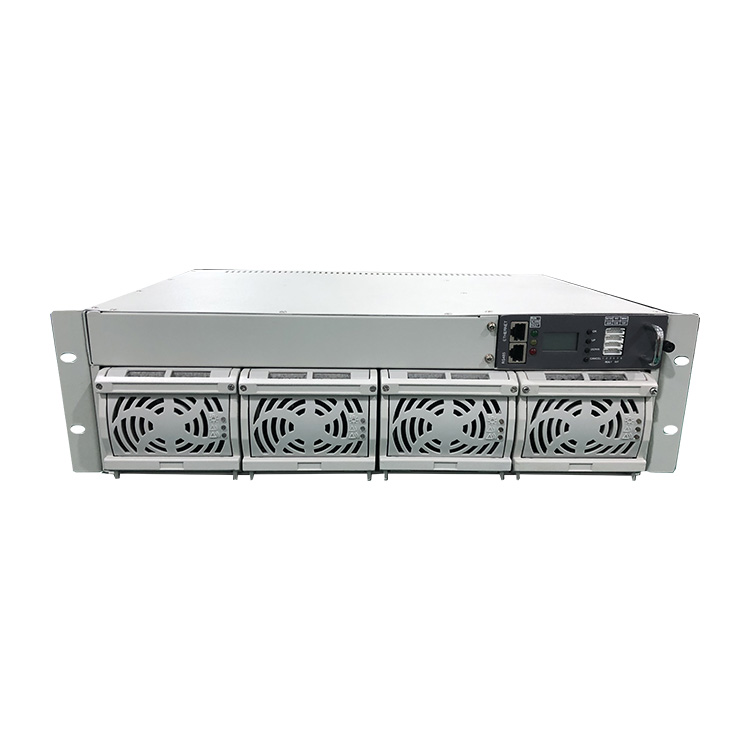

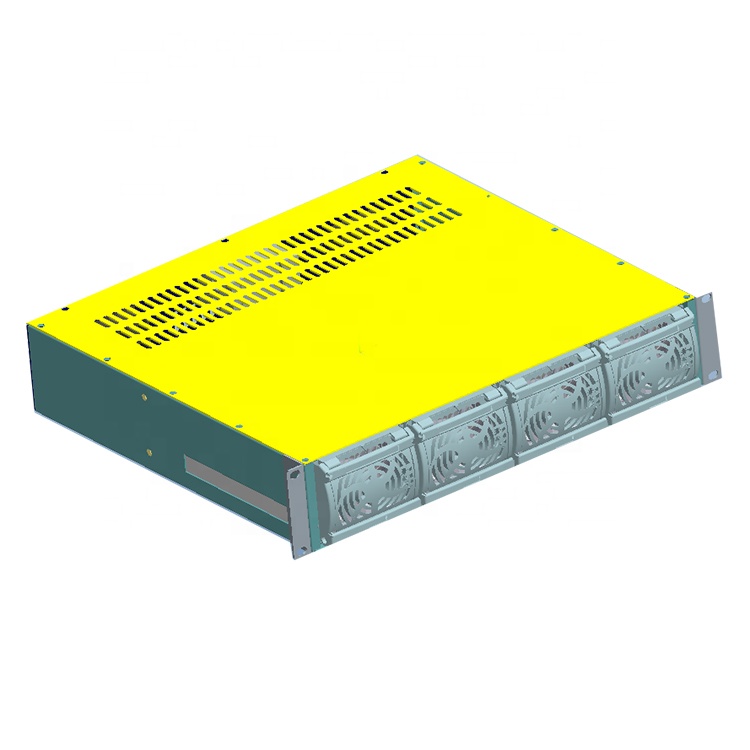

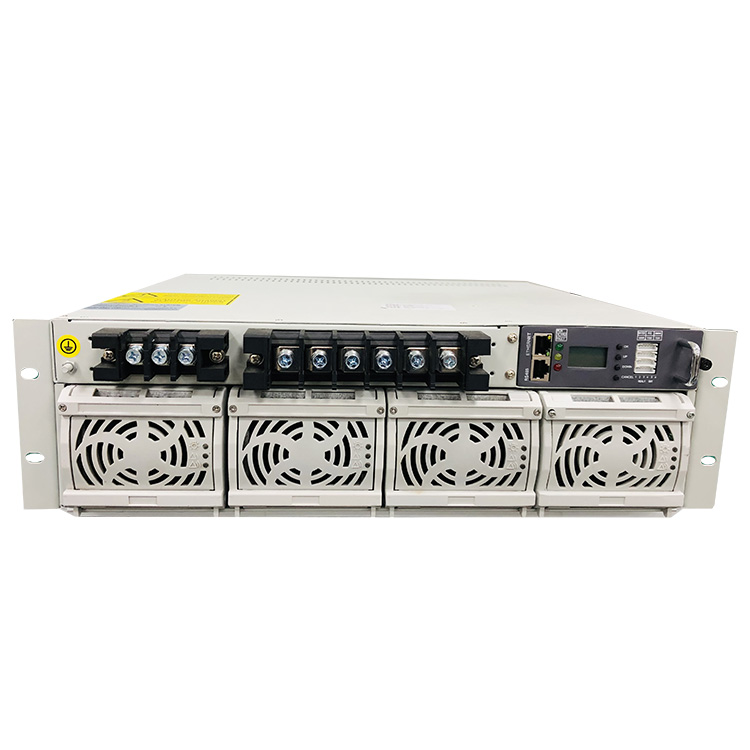

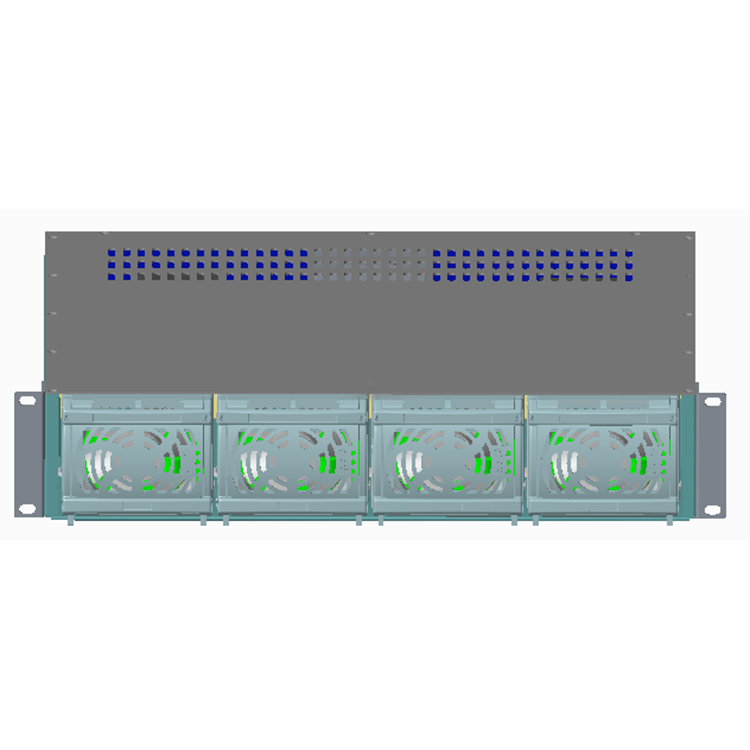

220 ac to 220v dc converter use advanced modular design, with multiple rectifier modules together in one 19'' rack box. Makes it flexible to provide enough power supply for Telecom and Power Industrial equipment use.

The power output of rectifier can flexible configuration, depending on equipped different quantities of rectifier modules. It can provide stable DC output to regular load, battery float charging, and battery equalized charging. Output constant DC charge power, works automatically according to the load demands.

220 ac to 220v dc converter features

* Modular design, N + 1, easy for expansion

* Hot-swappable modules, safe and convenient replacement

* Free output voltage regulation

* Free output current limit setting

* With a standard RS485/SNMP interface

* CE conformity

* Battery management include:
Real-time battery voltage monitoring;
Charge and discharge current;
Automatic control for boost charge and float charge;
Charge temperature compensation.

* Various protection function:
Input and output over /under voltage;
Over temperature;
Short circuit
