24V to 48V DC Converter Switching Power Supply with 20A Current Output

EVS24S48-20A

minimum order:

1 piece

Quantity:

$180.00 - $210.00 / piece

Contact Now

add to cart

Input Voltage:Other, 21-29V/DC
Output Current:20 A
Output Voltage:DC48V
Model Number:EVS24S48-20A
Brand Name:EVSPOWER, DC/DC power converter
Place of Origin:Guangdong, China, Shenzhen, China (Mainland)
Application:Industry, Industrial Equipment
Efficiency:92%, >92%
Output Frequency:50/60 Hz
Output Type:Single
Protection:Over Power Protection, Overloading Protection, Over Temperature Protection, Overvoltage Protection
Type:DC-DC, 48v down to 24v and outputs at 120A current
Use in:exchange room, server room,base station,data communication

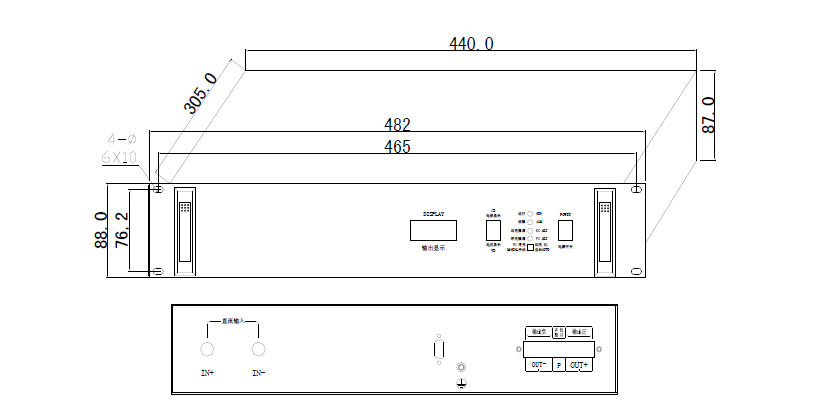

Size:482*88*300mm

DC/DC power converter that converts 48v to 24v output 20A current

1,24v to 48v dc dc converter Features
1,Rectifier module adopts active power factor compensation technology, power factor up to 0.99.
2,AC input voltage of normal operating range as wide as 42-58V.
3,Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.

2, 24v to 48v dc dc converter from 48v down to 24v and outputs at 120A current

Power System Configuration

Optional configuration

Rectifier module

Module number

Distribution

Monitoring module

Remark

Configuration

20A

1pcs

DC distribution: DC24V input,

Load output:DC48V20A

Monitor

Specific index refer to module specification

24v to 48v dc dc converter performance index

Input
Parameter	Min.	Rated	Max.	Unit	Note
Rated working voltage range		48		Vdc
Input voltage range	41	48	59	Vdc

Output
Parameter	Min.	Rated	Max.	Unit	Note
Output voltage range	20	26.5	30	Vdc
Regulation accuracy			±0.1	%
Load regulation			±0.1	%
Source regulation			±0.1	%
Current sharing regulation			±0.5	%
Ripple ( peak – peak value)			200	mv	Network 20MHz testing.
