    EVSPOWER 2KVA Single-Phase Modular Telecom Inverter 48V to 220V Pure Sine Wave DC to AC Power Inverter Rack for Industrial Use

    EVS-A3-2048R
    minimum order:
    1 piece
    Quantity:
    $200.00 - $220.00 / piece
    Contact Now
    add to cart
    • Output Current:9A
    • Output Frequency:50Hz/60Hz
    • Phase:Single Phase
    • Type:DC/AC Inverters
    • Model Number:EVS-A3-2048R
    • Brand Name:EVS
    • Place of Origin:Guangdong, China
    • Application:Industrial, Electric Vehicle
    • Efficiency:95%
    • Network:SDK
    • Output Type:Single
    • Size:482(W)*88(H)*414(L)mm
    • Weight:11Kg
    • Product name:48v to 220v Inverter
    • Voltage Precision(V):220V±1.5%
    • Frequency Precision(Hz):50±0.1%
    • Transfer Time(ms):≤5ms
    • Isolation(IN/OUT):1500Vac,1minute
    • Noise:≤40dB
    • Temperature:-25℃~+50℃



    1.High Energy Utilization System: The 48v to 220v Inverter features an efficiency of 0.95, ensuring the optimal use of input power to generate output power, making it highly efficient and cost-effective.

    2.Customizable LCD/LED Display: The versatile and user-friendly 48v pure sine wave inverter 50Hz 1KVA inverter is equipped with an LCD/LED display, which provides real-time information such as output voltage, current, and frequency, allowing users to monitor and adjust accordingly.

    3.Single Phase, 50Hz/60Hz Output Frequency: Suitable for a wide range of applications, the inverter operates on a single phase, offering output frequency options of 50Hz and 60Hz, catering to various power demands and regions.

    4.48V Battery Compatibility: Designed to work with 48v batteries, the inverter is compatible with various types of 48v battery systems, making it a versatile choice for various industrial settings.

    5.Noise Level Control: With a noise level of <60dB, the inverter operates quietly, ensuring minimal disturbance during operation, making it ideal for use in quiet environments or residential spaces where noise levels need to be maintained
    6.Working noise is low and the efficiency is high,Power factor: 0.9

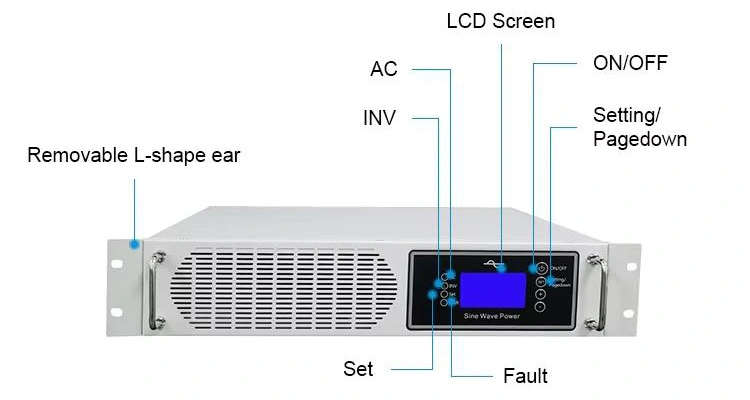

    7. LED + LCD Display

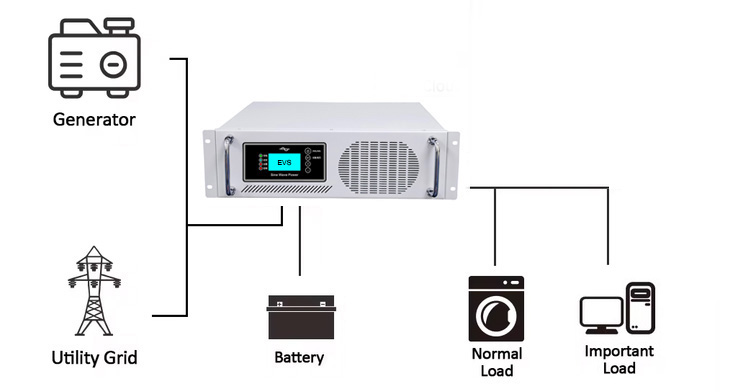

    8.Multi-functional charging support(Mains or generator charging)
    9.Pure sine wave output,UPS transfer time <5ms
    10. Anti-interference design,Strong ability of resist concussion
    11. Good load ability: Inductive , capacitive load and Hybrid load
    12.Isolation circuit design
    13. RS485 / WIFI
    14.The service life can reach a decade
    15. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output Short/Input polarity reverse/Overload


    Model (EVS-A3)


    1000


    2000


    3000


    4000


    5000


    6000


    8000


    10000


    12000

    Rate capacity(VA)


    1KW/

    1.25KVA


    2KW/

    2.5KVA


    3KW/

    3.75KVA


    4KW/5KVA


    5KW/

    6.25KVA


    6KW/

    7.5KVA


    8KW/

    10KVA


    10KW/

    12.5KVA


    12KW/

    15KVA
    DC input

    Input voltage

    DC24V; DC48V; DC110VDC220V;

    Range voltage

    DC20-32V;DC30-48V;DC90-144V;DC180-288V;

    Communication input

    Rated AC input voltage

    AC220V/AC110V (mains power/generator)

    AC input range

    170-280Vac (UPS mode) factory default; 90-280Vac (APL electrical mode)

    AC input frequency

    50HZ/60HZ (optional in the backend)

    UPS conversion time

    <5ms (UPS mode) factory default; <13ms (electrical appliance mode)

    AC Output

    AC output voltage

    220/230/240Vac±3% optional

    AC output frequency

    50±1HZ/60±1HZ (optional in the backend)

    Output waveform

    Pure sine wave (full voltage range)

    Waveform distortion rate

    ≤3% (linear load)

    Inverter peak efficiency

    95%

    Dynamic response

    (0~100%)≤5%

    Power factor

    >0.9

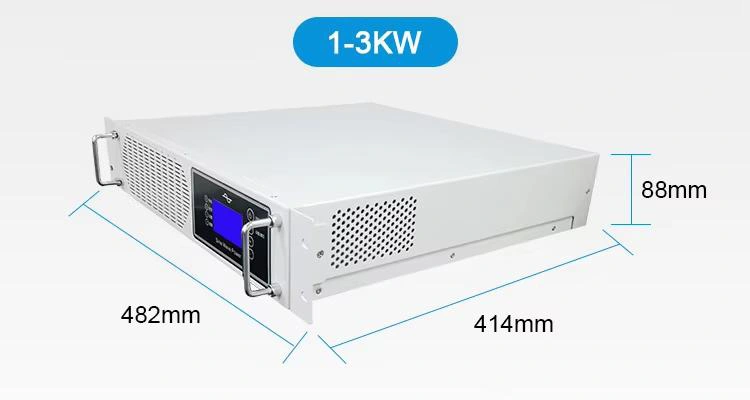

    Size(mm)

    2U/19inch

    482*414*88

    2U/19inch

    482*445*88

    3U/19inch

    482*445*132

    Weight (kg)

    9

    9

    10

    12

    12

    12

    14

    15

    16

    Communication method

    Standard configuration: RS485 (communication modes such as RS232/WIFI/GPRS/CAN can be customized)

    protection grade

    IP20 / Customizable

    Standard configuration instructions

    1 AC input, 1 DC input, 1 AC output, RS485 interface

    Optional Unit

    1: Fault dry contact; 2: External switch box; 3: External display box; 4: RS232; 5: WIFI module;

    6:GPRS module; 7: Ethernet module; 8: CAN communication; 9: Bypass input;

    Others

    DC24V/48V/110V/220V models are standard products, while DC12/36/60/72/96/192/240V models are EVSPOWER customized products
