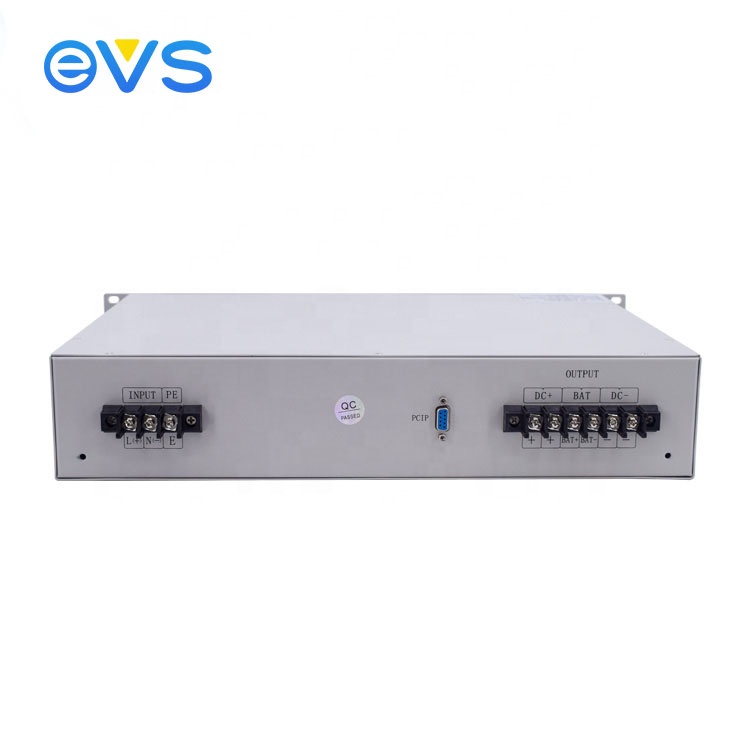

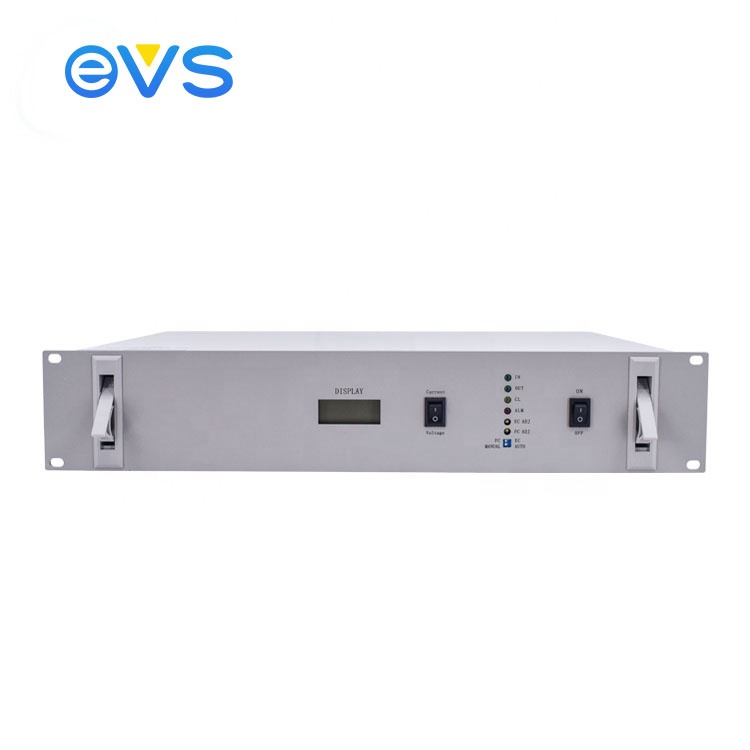

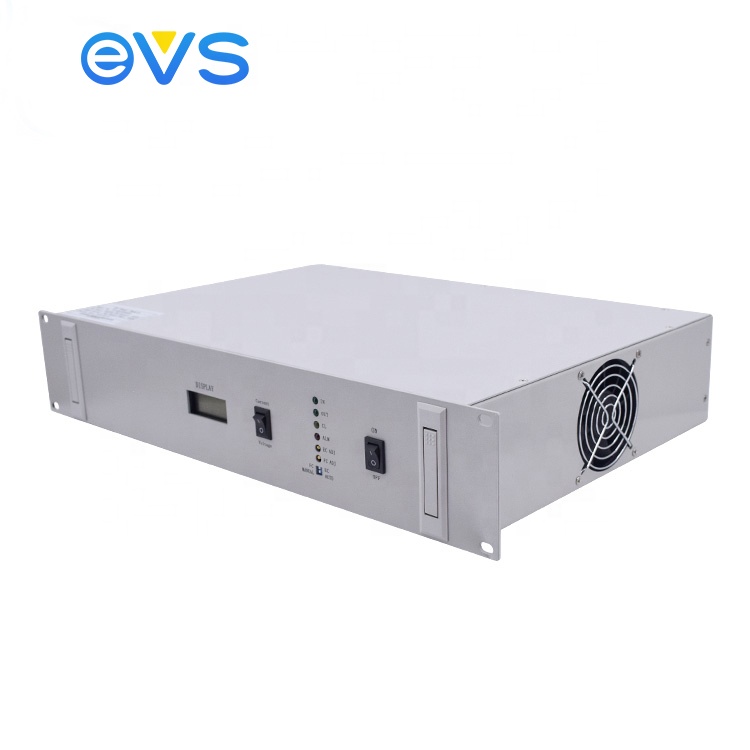

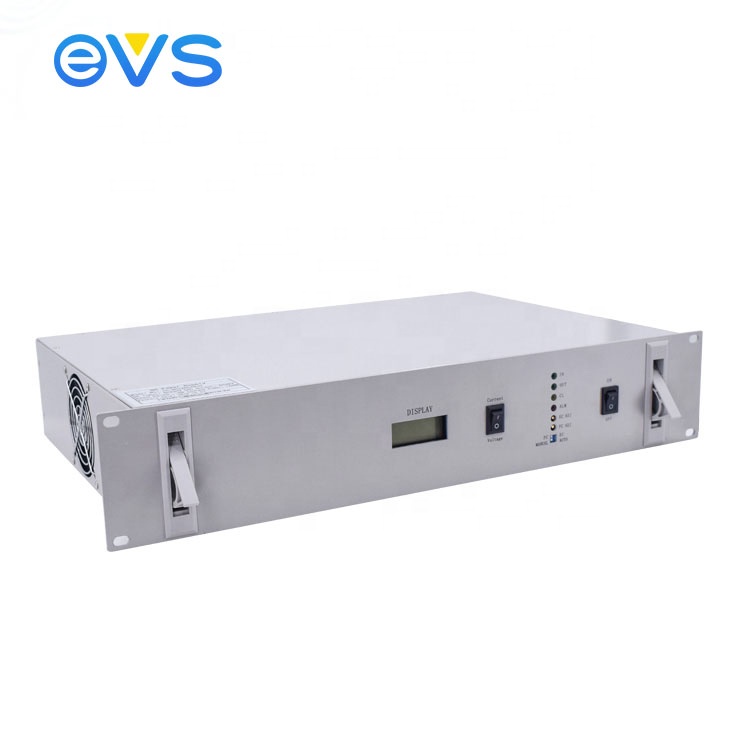

    Hot Selling 24V to 48V 20A 1250W Telecom Module Switching Power Supply DC Converter

    EVS24S48-20
    minimum order:
    1 piece
    Quantity:
    $200.00 - $232.00 / piece
    Contact Now
    add to cart
    • Application:Industry, Industrial Equipment, Battery Charging, Machines, laboratory
    • Efficiency:0.89
    • Protection:Overcurrent Protection, Overvoltage protection, Over Temperature Protection, Overloading Protection
    • Place of Origin:Guangdong, China, Shenzhen, China (Mainland)
    • Brand Name:EVSPOWER, dc converter 24v to 48v
    • Model Number:EVS24S48-20
    • Output Type:Single Phase
    • Input Voltage:24VDC
    • Output Voltage:48VDC
    • Output Frequency:50Hz/60Hz
    • Output Current:20A
    • type:DC-DC
    • Type:dc dc step up converter Industrial switching power supply
    • Input:19.5-30.5Vdc
    • output:42-58Vdc
    • Use in:exchange room, server room,base station,data communication
    • Size:482*88*300mm



    DC DC Converter / dc converter 24v to 48v is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.


    DC-DC Converter / dc converter 24v to 48v adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc.



    DC-DC Converter / dc converter 24v to 48v is the ideal configuration supplying power to the communication equipment of different voltage grades.




    EVS Converter Technical



    10



    20



    Test Conditions



    Input Voltage Range(VDC)



    24VDC(20-30VDC)





    Module Power Surge (A)



    DC≤2A



    Output Full Load



    Output Float Voltage (V)



    48VDC



    Factory Settings



    Output Current (A)



    10A



    20A



    Output Limit 101%~105%



    Load Regulation



    ≤±0.5%



    Output without load to full load



    Power Regulation



    ≤±0.2%





    Dynamic Response



    100usMax



    20%~100% Load



    Phone Scale Noise Voltage(mV)



    ≤2



    Noise meter



    Peak - peak Noise Voltage (mV)



    ≤100



    0~20MHz



    Efficiency



    ≥83%





    Current Deviation



    ≤±5%





    Temperature Coefficient (℃)



    0.02%





    Over-temperature protection (℃)



    95±5



    Radiator will close when temperature is over 95℃, can recover.



    Working Temperature (℃)



    -5~45





    Storage Temperature (℃)



    -10~85





    Working Humidity



    5%~95%



    Non-condensing



    Insulation Strength



    Leakage Current <30mA



    500Vdc/1min



    Insulation Resistance (MΩ)



    ≥20



    DC 1KV



    MTBF (hrs.)



    100000





    Net Weight (Kg)



    8





    Gross Weight (Kg)



    10
