    Isolated DC-DC Converter LED Display 24V-48V-200V-220V-380V Electric Power Supply Transformer 50Hz-60Hz Inverter for Compressor

    EVS-36S200-100A
    minimum order:
    1 piece
    Quantity:
    $300.00 - $650.00 / piece
    Contact Now
    add to cart
    • Application:Industrial, Compressor, electric vehicle, charge battery and use for DC loads
    • Phase:Single Phase
    • Network:SDK
    • Place of Origin:Guangdong, China
    • Brand Name:OEM
    • Model Number:EVS-36S200-100A
    • Type:DC/DC Converters
    • Output Type:Single Phase
    • Output Current:10A-100A
    • Output Frequency:50Hz/60Hz
    • Size:482*88*300(mm)
    • Weight:15KG
    • Efficiency:90%
    • OEM:Customized voltage boost power supply
    • Inverter type:DC/DC converter
    • Display:LED+LCD
    • Warranty:12 months
    • MTBF:≥100000 hours
    Our products


    DC DC Converter 36V to 200V electric power supply transformer

    Specifications
    1.High-performance, high-reliability power supply 200V Power System
    2.Input: 24V to 58Vac; output:110 ~ 280VDC;
    3.Complete fault protection, fault alarm function
    4. EMI design,low radiation
    5.PMW technology,high efficiency

    Features with the following specifications:

    Application
    Small size program-controlled switches
    Access network
    Transmission equipment
    Mobile communication
    Satellite communications ground station
    Microwave communication power supply

    DC DC Converter 36V to 200V electric power supply transformer Features

    1.Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.
    2. Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.
    3.Rectifier module adopts no damage hot insert and pull technology, replacement time less than 1min.
    4.Network design, providing a variety of communication interfaces (for example: RS485, dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.
    5.Complete fault protection, fault alarm function.
    6.Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.
    7. Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet requirements for conducted and radiated interference of"the communication power equipment electromagnetic compatibility Limits and methods of measurement"( People's Republic of China telecommunications industry standard YD/T983)。
    8. Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943。




    DC DC Converter 36V to 200V electric power supply transformer



    1, environmental conditions

    1)working temperature: -25 to +55

    2) storage temperature: -40 ~ +80

    3) relative humidity: 10% ~ 90%

    4)altitude: 3000m

    5)atmospheric pressure: 70 ~ 106KPa

    6)the heat dissipation method: the wind turbine forced cooling

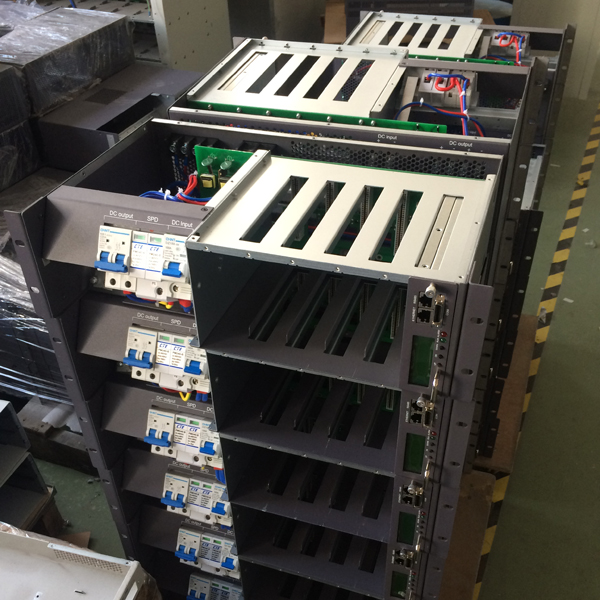

    DC DC Converters for System integration
    Optional
    Rectifier
    Module
    Distribution
    Monitoring
    Remark
    Configuration
    200V5A
    1-5pcs
    DCdistribution: DC36V input,
    Load output:5A-25A
    Monitor
    Specific index refer to module specification


    Hong Kong Electronics Fair on 2015-11-14 October

    CES,7-10 jan,2014,Enthusiasm for customer to answer questions



    On IFA,6-13 September,2013

    13 - 16 April,2012,on Hong Kong


    with Universities


    South University of Science and Technology of China

    Sun Yat-sen University, SYSU

    Shenzhen University


    Company Profile


    With years of export experience along with excellent quality, advanced services and competitive prices, EVS has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, EVS has won numerous customers' trust and support.


    Packing&Delivery


    Packing

    Packaging Details: Export standard packing :Plastic bag +Bubble bag +Inner carton +Outer carton .Customize Package Acceptable .We also can provide small and big PVC packing .

    Delivery Detail: 3-5 days after confirming the order



    Delivery

    We can provide a variety of logistics and express delivery.


    FAQ


    Q1.Why choose us?

    Shenzhen Evs Industrial Co., Ltd. offer you the best quality products and service. Win to win
    business is our first principle.

    Q2.Whom we are ?
    Shenzhen Evs Industrial Co., Ltd. is a professional manufacturer which combine production
    and trade. Now the company have two brand evs and huaqiang power. The products series
    contain high ,middle and low level range products. The products is highly used for all brands of
    Switching Power Supply,mobile phones , PC , DC ,TV PSP ,laptop and so on electronic products.

    Q3.Are you a factory or trading company?
    A: Yes, we are date cable manufacturer,supply OEM/ODM service.

    Q4, Can you open mould as customer request.
    A: Yes , we can

    Q5.How about your After sales-service?
    A: 1.Guarantee time: one year
    2.Spare parts: 0.3% spare parts will be shipped with your order.
    3.Return policy: we can exchange goods if quality problem.

    Q6.Our Payment & Logistics?
    1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypa
    2.Shipping terms: Ship,DHL, UPS, FEDEX, TNT, EMS
    3.Sample order delivered within 24 hours , order lead time within 3 days

    Q7.Sample available: Yes


    Q8.What can you get from us?

    1.Excellent products (unique design, strict quality control )
    2.Great service(OEM,ODM, after-sales services, fast delivery)
    3.Professional business consultation.
