    Rack Mount 110vdc 20a Rectifier Modules Battery Charger Switching Power Supply

    EVS2U-11020S
    minimum order:
    1 piece
    Quantity:
    $200.00 - $260.00 / piece
    Contact Now
    add to cart
    • Input Voltage:90-400V
    • Output Current:20A
    • Output Voltage:110Vdc
    • Model Number:EVS2U-11020S
    • Brand Name:OEM ODM
    • Place of Origin:Guangdong, China
    • Application:Industry, Communication Room
    • Efficiency:92%
    • Output Frequency:50/60Hz
    • Output Type:Single
    • Protection:Over Temperature Protection, Overvoltage Protection, Overcurrent Protection
    • Type:AC-DC
    • Function:Telecom base stations
    • Compatible Brand:110vdc 20a rectifier battery charger
    • Logo:Can be design according to customer
    • Condutor:Rectifier Module
    • Colors:RAL7035
    • Size:482*300*88mm
    • Net weight:9Kg

    Our products








    Rectifier 110vdc Features with the following specifications:





    1. 110V 20A DC Rectifier dcseries of high-frequency switching power supply is EVS GROUP off the company mainly for China's mobile communications, program-controlled switches, access network equipment, telecommunications equipment, servers, local area network, communications room base station and other communications research and development of independent research and production Of the main products.


    2. The series of high-frequency switching power supply using advanced dual-tube forward switch technology, the isolation between the design of the module to prevent the interaction between the modules.


    3. The series of high-frequency switching power supply with AC input over-voltage protection, DC output over-voltage protection, over-current protection, short circuit protection and other multiple protection.


    4. The module uses a standard rack-like design with a width of 19 inches and a height of 2U. Ultra-low radiation, the use of advanced electromagnetic compatibility evs





    The110V DC Rectifier comprises the AC input distribution, rectification, DC output distribution, and monitoring system. The four parts are in turn made up of different components as shown below:


    1. AC input distribution: AC distribution cabinets.

    2. Rectification: red insulation diodes.

    3. DC output distribution: diodectifiers an chain, insulation status detector, switching branches (connected to the switching bus), and control branches (connected to the control bus).

    4. Monitoring system: power control unit (PCU) and power distribution monitoring box.




    110vdc Rectifier system
    Input voltage 220VAC
    Output voltage 110Vdc20A / 220V10A
    Output power :2900W (176VAC~264VAC Input)

                           1200W (90VAC~175VAC Input)



















































    110vdc Rectifier performance index input


    Parameter


    Min.


    Rated


    Max.


    Unit


    Note


    Rated working voltage range


    110/220


    Vac



    Input voltage range


    90


    220


    264


    Vac


    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC


    Input frequency


    45


    50


    65


    Hz



    Power Factor

    		    ≥0.98@220VAC@117V / 20A




















































    110vdc Rectifier performance index output


    Parameter


    Min.


    Rated


    Max.


    Unit


    Note


    Output voltage range


    90


    125


     156


    Vdc

    		 125VDC,90~156V adjustable

    Output current range


    (max.current)


    0


    20


      A


    input 176 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.


    Current Sharing


    		   ±5%



    Output Protection


    		    Over voltage protection,Under voltage protectionOver temperature protection,Hot-swappable Internal failure isolated diode Short circuit protection










    hot sale

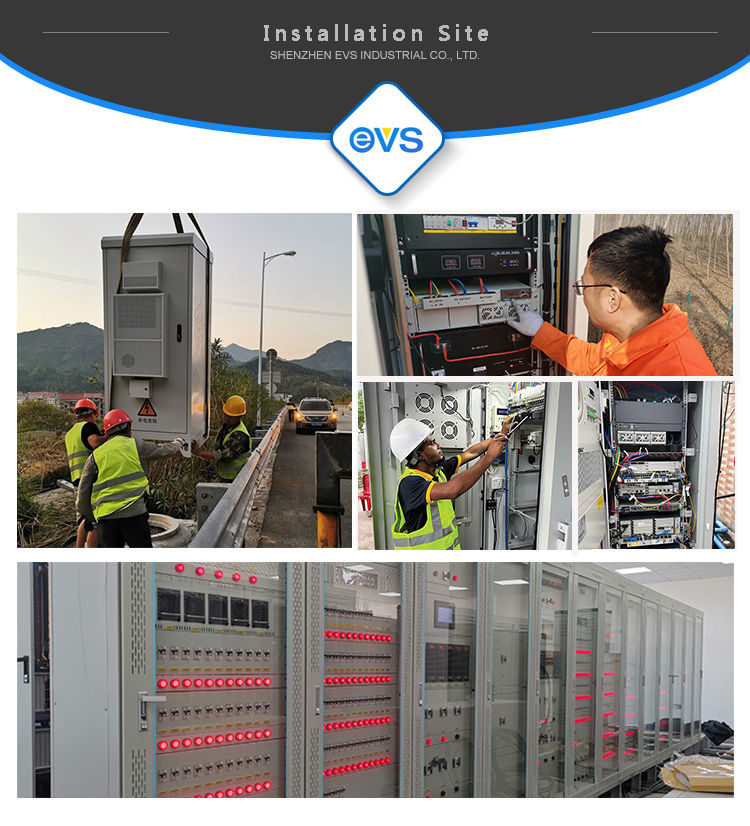

    Installation site
