    Wall-Mounted DC-DC Converter with 220V Output and 3000Watt Power 10A Current

    EVS22010
    minimum order:
    1 piece
    Quantity:
    $150.00 - $300.00 / piece
    Contact Now
    add to cart
    • Place of Origin:Guangdong, China
    • Brand Name:OEM ODM
    • Model Number:220V10A
    • Output Type:Single Phase
    • Input Voltage:240V / 415V
    • Output Voltage:200Vdc
    • Output Frequency:47-63Hz
    • Output Current:10A
    • Function:Telecom base stations
    • Compatible Brand:Emerson, Huawei, ZTE,vapel, Eltek
    • Logo:Can be design according to customer
    • Condutor:Rectifier Module
    • Size:482*88*300mm
    Our products



    Features with the following specifications:

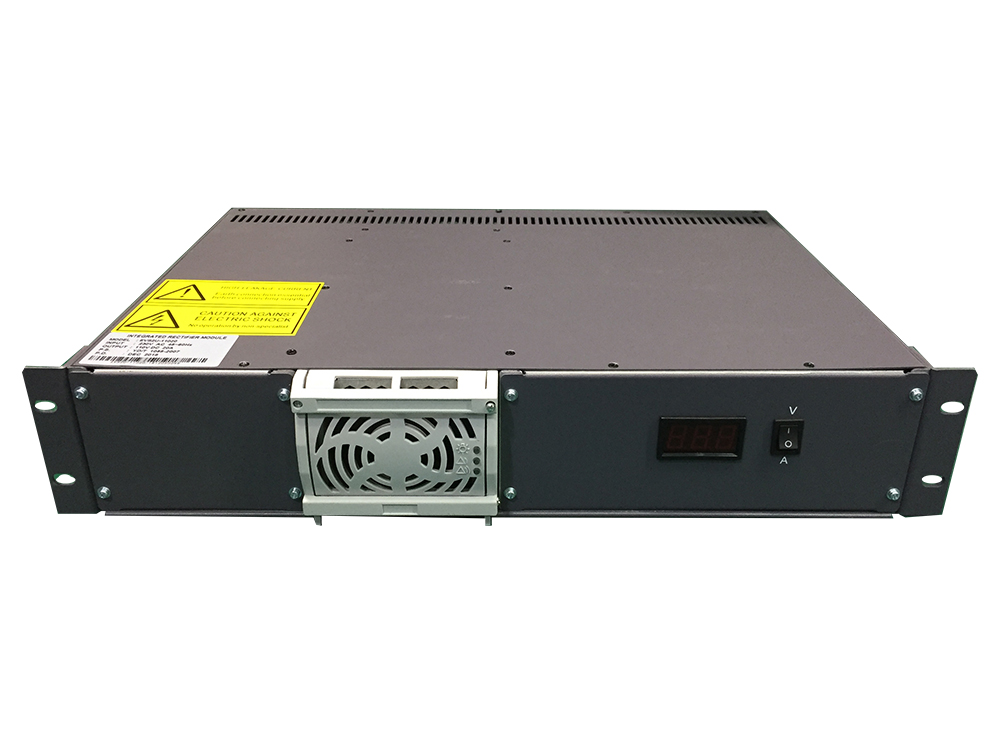

    There are two buttons on the module panel, namely, upper button and lower button.

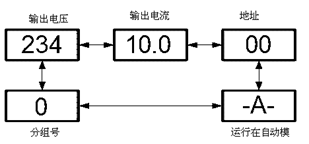

    Module information can be checked by the button. For example, output voltage of the module is 234V, output current is 10.0A, the address is 0, operation mode is automatic, and grouping number is 0. After pressing the upper or lower button, it will display these data successively as shown in the figure:


    The module applies for air-cooling & heat-dissipating method, and the fan is set in front of the module to draft air from the front of the module to the back of the module. Therefore, when module position is set, it’s required to ensure the smoothness of heat dissipation air duct in front of and behind the module. The module has hot plugging function

    1.AC or DCInput

    Single phase Input Rated Volt :220V

    Volt Range:75V~380V

    2.DC Output

    Floating charge: 220V(Manually adjustable)



    3.Output noise

    Phone Scale noise:≤2mV

    Broadband noise:≤20mV(3.4kHz-150kHz)

    ≤20mV(150kHz-30MHz)

    Discrete frequency noise:3.4~150KHz< 5mV

    150~200KHz< 3mV

    200~500KHz< 2mV

    0.5~30MHz< 1mV

    Peak - peak noise:≤200mV (20MHz)

    4.Regulation accuracy

    Voltage Regulation:≤±0.1%

    Load Regulation:≤±0.2%

    Regulation accuracy:≤±0.3%

    5.Operation Efficiency

    Efficiency≥88%
