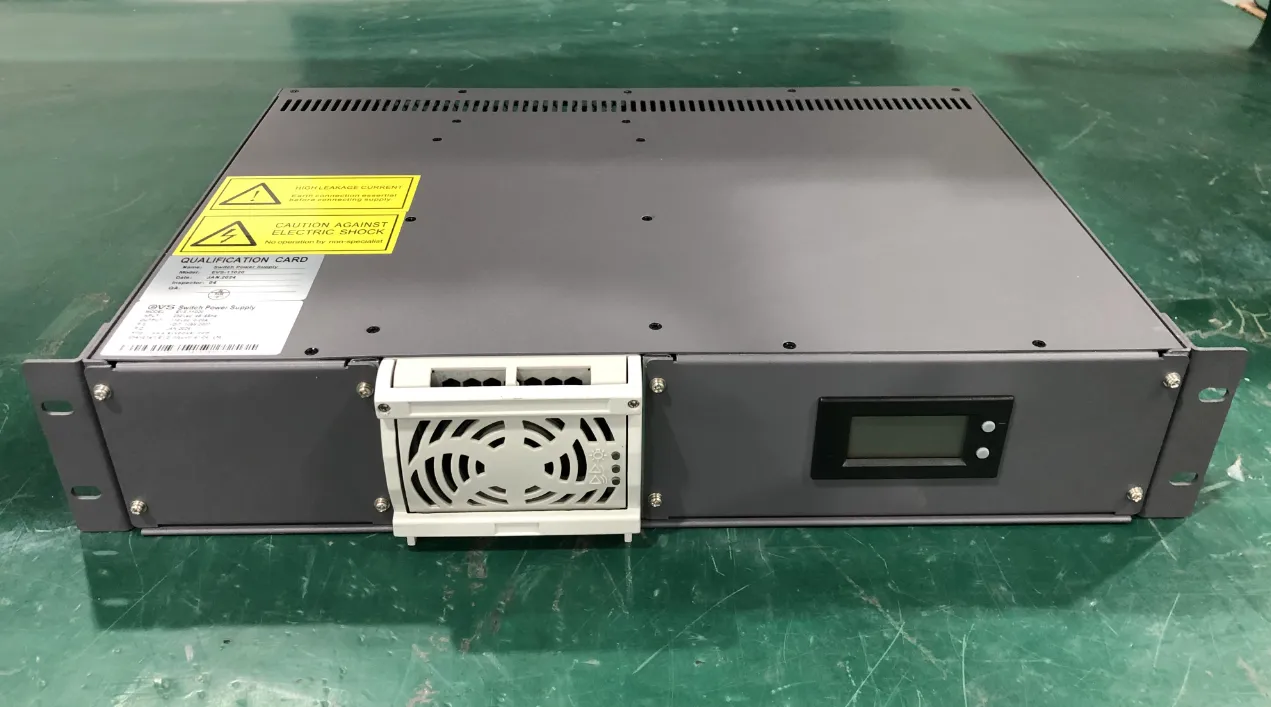

    R4850G1 48v 50a Embedded Module DC Power Supply 3000W 48v Rectifier Module Single Output 10A Current 60Hz 380v/110v/200v

    EVS2U-4850A
    minimum order:
    1 piece
    Quantity:
    $150.00 - $210.00 / piece
    Contact Now
    add to cart
    • Application:Industry, Industrial Equipment, Machines, Battery Charging, Industrial Automation
    • Efficiency:0.92
    • Protection:Over Power Protection, Overloading Protection, Over Temperature Protection, Overvoltage protection
    • Place of Origin:Guangdong, China
    • Brand Name:OEM ODM
    • Model Number:EVS2U-4850A
    • Output Type:Single Phase
    • Input Voltage:80-300Vac/100V-400Vdc
    • Output Voltage:48V
    • Output Frequency:50/60Hz
    • Output Current:50A
    • type:AC-DC
    • Type:telecom rectifier for switching power supply
    • Function:Telecom base stations
    • Compatible Brand:Emerson, Huawei, ZTE,vapel, Eltek
    • Logo:Can be design according to customer
    • Condutor:Rectifier Module
    • Size:482*310*88mm

    Our products

    Single-phase AC input, high power density, high reliability design, and costeffective, RS485 communication protocol and built-in Modubus standard protocol.



    Features with the following specifications:


    1.Rectifier module adopts active power factor compensation technology, power factor up to 0.98
    2.AC input voltage of normal operating range as wide as 80 ~ 300VAC
    3.Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 95%.
    4. Hot swappable type operation;
    5. Each individual rectifier module can be capable of operating independently;N+1(Can be backed up)
    6 .AC /DC distribution system for AC input/ DC output distribution and protection; Pluggable way
    7 .Protections: short road, over load, battery over/under voltage protection
    8.Can low the temperature of the inner components through the inforced air cooling design by improving the reliability and the efficiency of the module.
    9.Charging module intelligent control, provides data communication interface.

    Modular rack rectifier system
    Input voltage 220VAC
    Output voltage :48V50A / 110Vdc20A / 220V10A
    Output power :2900W (176VAC~264VAC Input)

    1200W (90VAC~175VAC Input)


    Power system performance index input

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Rated working voltage range

    110/220

    Vac

    Input voltage range

    90

    220

    264

    Vac

    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC

    Input frequency

    45

    50

    65

    Hz

    Power Factor
    		≥0.98@220VAC@117V / 20A

    Power system performance index output

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Output voltage range



    48



    Vdc
    		53.5VDC,42~58V adjustable


    Output current range


    (max.current)

    0

    50

    A

    input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.


    Current Sharing

    		±5%



    Output Protection

    		Over voltage protection,Under voltage protectionOver temperature protection,Hot-swappable Internal failure isolated diode Short circuit protection

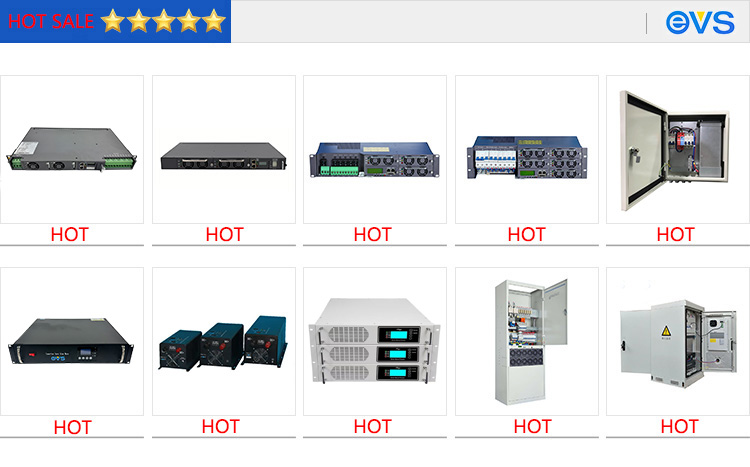

    hot sale
