    High Quality 19\" Rack Mount 48VDC to 220VAC 4000W Pure Sine Wave 5KVA Telecom Inverter Single Phase 48VDC 220VAC 4000W Inverter

    EVS48/230-5000AR
    minimum order:
    1 piece
    Quantity:
    $460.00 - $480.00 / piece
    Contact Now
    add to cart
    • Application:Industrial, electric vehicle
    • Phase:Single Phase
    • Network:SDK
    • Place of Origin:Guangdong, China
    • Brand Name:EVS
    • Model Number:EVS48/230-5000AR
    • Type:DC/AC Inverters
    • Output Type:Single Phase
    • Output Current:18A
    • Output Frequency:50Hz/60Hz
    • Size:482(W)*88(H)*450(L)mm
    • Weight:13Kg
    • Efficiency:90%
    • Voltage Precision(V):230±1.5%
    • Frequency Precision(Hz):50±0.1%
    • Power Factor(PF):0.8/0.75
    • Overload:120%,30 sec
    • Transfer Time(ms):≤5ms
    • Isolation(IN/OUT):4500Vac,1minute
    • Noise:≤40dB
    • Temperature:-25℃~+50℃
    • Humidity:0~90%




    Telecom Inverter Technical Index(VA)

    5KVA

    DC input

    Rated input voltage (Vdc)
    		48

    Allowable range of input DC voltage (Vdc)

    40-59

    Backward noise current

    ≤10%

    AC by-pass input

    Allowable by-pass voltage (Vac)

    180V-270V(±10V)

    Rated input current (A)

    4.5

    By-pass conversion time (ms)

    ≤5ms

    AC output

    Rated capacity (VA)

    5000VA

    Rated output power (W)
    		4000W

    Inverter output voltage and frequency

    230Vac,50HZ

    Inverter output current (A)
    		18A

    Output voltage precision (V)

    230±1.5%

    Output frequency precision (Hz)

    50±0.1%

    Waveform

    Pure sine wave

    Total harmonic distortion (THD)

    ≤3% (linear load)

    Dynamic response time

    5% (load 0←→100%)

    Power factor (PF)

    0.8

    Overload capacity

    100%-120% 60s 121%-150% 10s

    Inversion efficiency (80% resistive load)

    ≥87%

    By-pass conversion time (ms)

    ≤5ms

    Working environment

    Dielectric strength (input and output)

    1500Vac, 1 minute

    Noise (1m)

    ≤40dB

    Operating environment temperature

    -25℃~+50℃

    Humidity

    0~90%, no moisture condensation

    Operating altitude (m)

    ≤2000

    Indication

    LCD display

    Input and output voltage, frequency, output current, temperature, percentage, etc.

    inverter status

    Normal mains, normal inversion, battery under-voltage and output overload

    Mechanical size
    		Standard rack
    482X88X450mm

    Protection function

    Input under-voltage and overvoltage, output overload and short circuit protections, etc.

    weight

    13KG

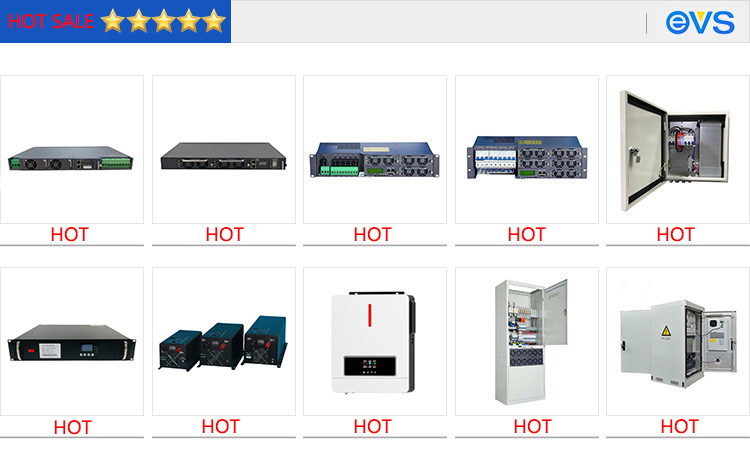

    hot sale
