    2U Standard Rack-Mounted 48VDC 100A 150A 200A DC Regulated Power Supply for Telecom Power System Industrial Use 220V 48V

    EVS48200-H2B4
    minimum order:
    1 piece
    Quantity:
    $550.00 - $595.00 / piece
    Contact Now
    add to cart
    • Input Voltage:220 V
    • Output Current:Other
    • Output Voltage:48 V
    • Model Number:EVS48200-H2B4
    • Brand Name:EVSPOWER
    • Place of Origin:Guangdong, China
    • Application:Industry, Laboratory, Industrial Equipment, Machines, Battery Charging, Telecom, utility
    • Efficiency:95%
    • Output Frequency:50/60 Hz
    • Output Type:Single
    • Protection:Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection, Over Power Protection, Undervoltage Protection
    • Type:AC-DC, integration telecom power System
    • Anti theft:Module loss alarm
    • input:AC input current detection
    • Function:Telecom base stations
    • Product Name:rectifier system

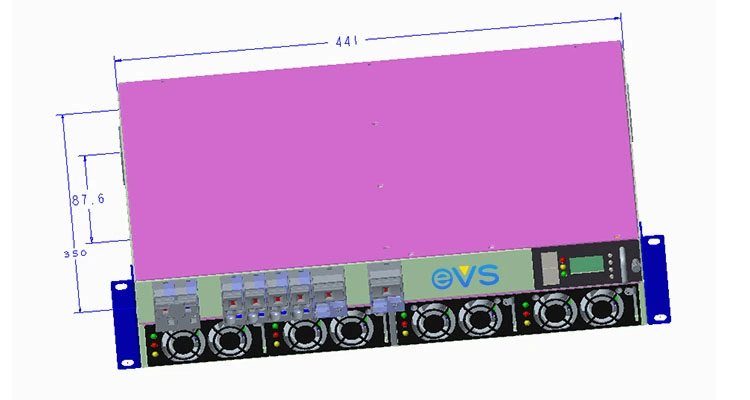

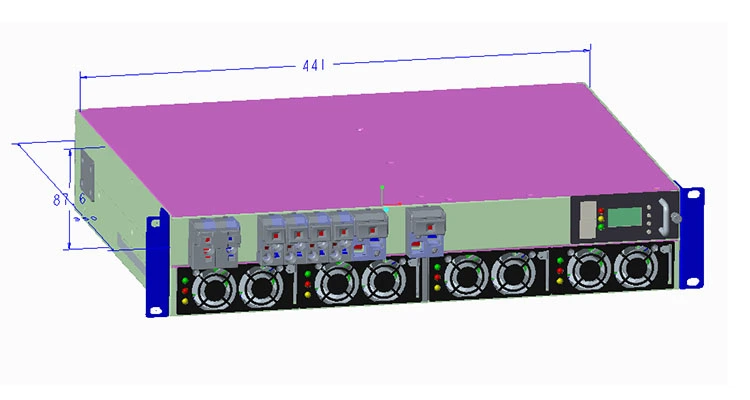

    • SIZE:482.6mm*350mm*88mm
    • Logo:Can be design according to customer
    • Condutor:Rectifier Module 48V50A*4 pcs

    Our products







    Telecom Power Systems 48vdc 100a 150a 200a 2U Standard rack mounted dc regulated power supply





    Telecom Power Systems Features with the following specifications:





    1,48V Rectifier adopts active power factor compensation technology, power factor up to 0.99.
    2, input voltage of normal operating range as wide 90-290V.
    3,Rectifier 48v adopts full bridge soft switching technology, efficiency can reach above 95.5%.
    4,Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.
    5,telecom power supply integration adopts no damage hot insert and pull technology, replacement time less than 1min.
    6,Network design, providing a variety of communication interfaces (for example: RS485, dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.
    7,Complete fault protection, fault alarm function.
    8,Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.
    9,Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet requirements for conducted and radiated interference of"the communication power equipment electromagnetic compatibility Limits and methods of measurement"( People's Republic of China telecommunications industry standard YD/T983).
    10,Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.




    EVSPOWER Telecom Power Systems Main applications:
    Universal AC (Alternate Current) Input
    Filtered IEC AC Inlet Connectors
    EMI FCC Class B Clearance
    Single and Multiple Output
    Highly Efficient Design
    2U Low Profile Height
    NO Minimum Load Required
    Low Voltage Power Supply Alarm
    Data Line Alarm And ACO (Alarm Cut Off) System
    Cost Effective and Reliable Power Supply


























     EVS Telecom Rectifier Systems

    Optional

    		Rectificador
    Module max


    Distribution

    		Controlador
    Remark


    Configuration



      50A




    1-4 pcs


    220V AC input ,
    Load output:50A-200A


    Monitor


    Specific index refer to module specification






























































    Output Type


    Single


    Input Voltage


    220V


    Output Voltage


    48V


    Output Frequency


    50HZ/60HZ


    Output Current


    0-200A


    Application


    Laboratory


    Warranty


    12 Months


    Type


    EVSPOWER DC POWER SYSTEM


    Efficiency


    95%


    Output


    48vdc


    MOQ


    1 pcs


    Product Name


    19 Inch Rack Mounted Telecom Rectifier System


    Feature


    High Reliability
























































     Telecom Power Systems performance index input


     Parameter


    Min.


    Rated


    Max.


    Unit


    Note


     Rated working

     voltage range


    110/220


    Vac



     Input voltage range


    90


    220


    280


    Vac


    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC


     Input frequency


    43


    50


    67


    Hz



     Battery input


    40


    48


    60


    Vdc


    Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)



















































































    Telecom Power SystemsTelecom Power Systems performance index output


     Parameter


    Min.


    Rated


    Max.


    Unit


    Note


     Output voltage range


    42


    48


    58


    Vdc



     Output current range
     (max.current)


    0


    200


    A


    Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.


     Regulation accuracy


    ±1


    %



     Load regulation


    ±1


    %



     Source regulation


    ±1


    %



     Current sharing regulation


    ±5


    %



     Ripple ( peak – peak value)


    200


    mv


    Network 20MHz testing.


     Output efficiency


    95


    96


    ±1


    %


    230Vac Input















    Installation site
