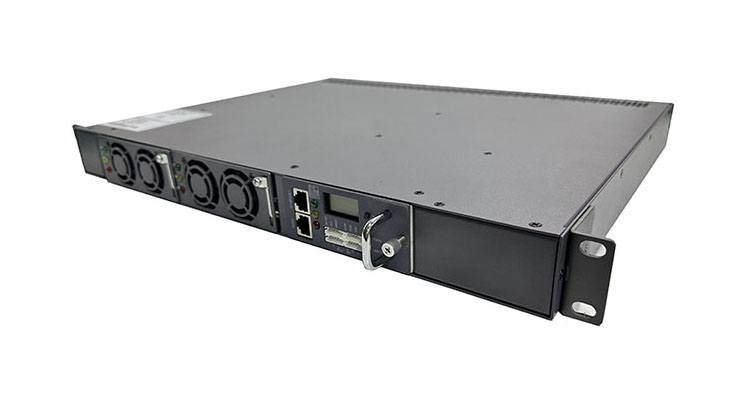

    EVS48100 48V DC Power Systems 100A Rear Embedded Telecom Rectifier 50A/100A 220V Input Voltage for Industrial Use

    EVS48100-H1C2
    minimum order:
    1 piece
    Quantity:
    $330.00 - $350.00 / piece
    Contact Now
    add to cart
    • Model Number:EVS48100-H11B2
    • Type:dc power system, Telecom Rectifier System
    • Place of Origin:Guangdong, China
    • Use:Teleocm Room
    • Dimensions:482*360*44mm
    • Power - Rated:6000W
    • Input Voltage:80-300VAC
    • Input:AC input current detection
    • Anti theft function:Rectifier loss alarm
    • Output:Multiple Output
    • Mounting Type:19 Rack mounted
    • Features Dry contact:webrowser SNMP
    • Packing:Carton Box
    • Certificate:CE RoHS
    product details



    Product Description

    EVS’s DC Power Systems are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.

    This 220V Ac to 48V Dc 100A Converter is for commucication,
    Output voltage -54V,Output current 0-100A;Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.

    220V Ac to 48V Dc 100A Converter,Rectifier System , with the following features and functions:

    Rectifier System Information

    1.Telecom Rectifier System 48VDC Rectifier Power Supply with evspower snmp
    2. Hot swappable and Plug and Play;
    3 .N+1 redundancy,each module available in 50A@48Vdc;

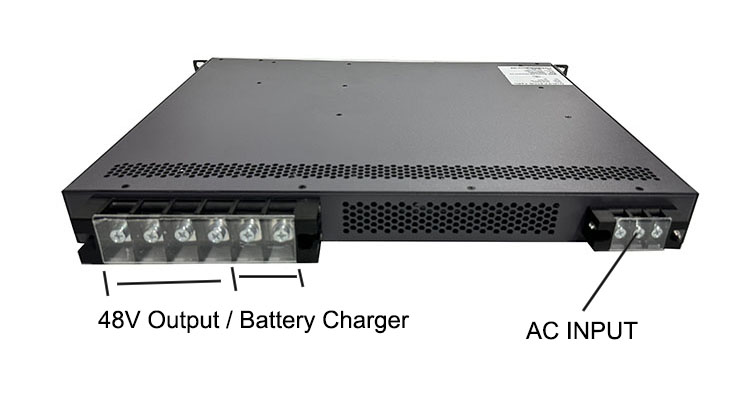

    4 .AC /DC distribution system for AC input/ DC output distribution and protection;

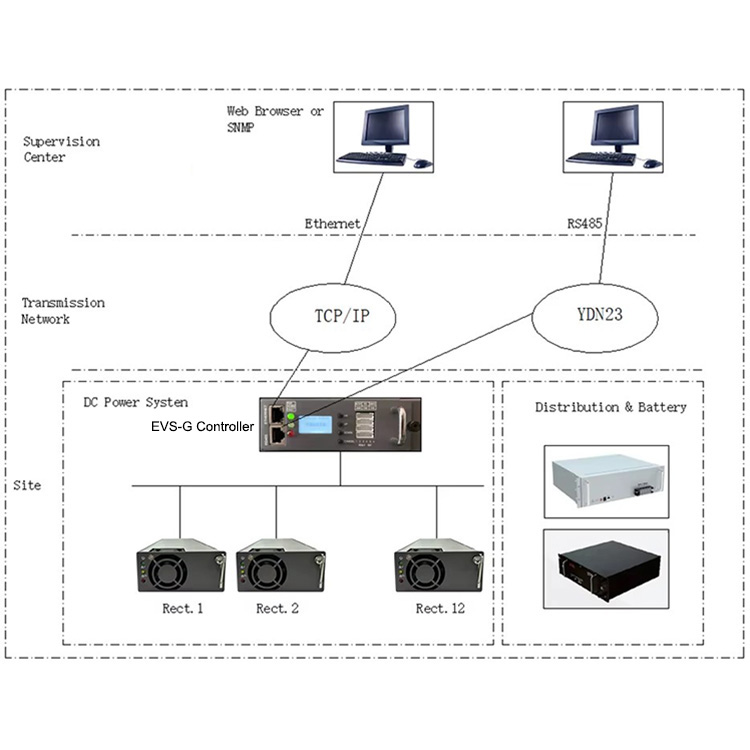

    5.RS232, RS485, SNMP communication for remote control;
    6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;
    7.High Efficiency with low EMI. CE Safety and EMC certification
    8. the system has high power factor greater than 0.98;
    9. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

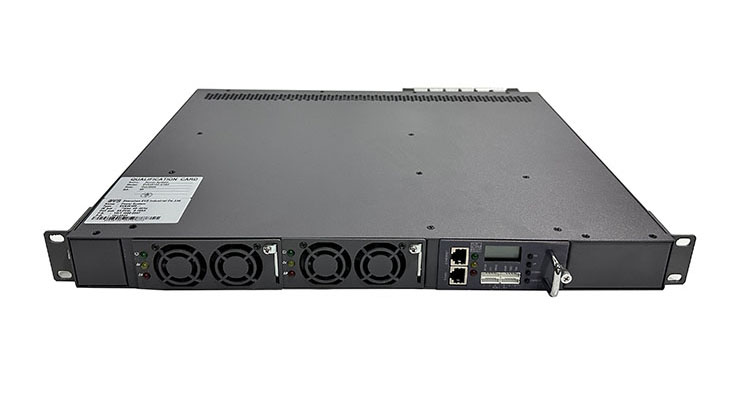

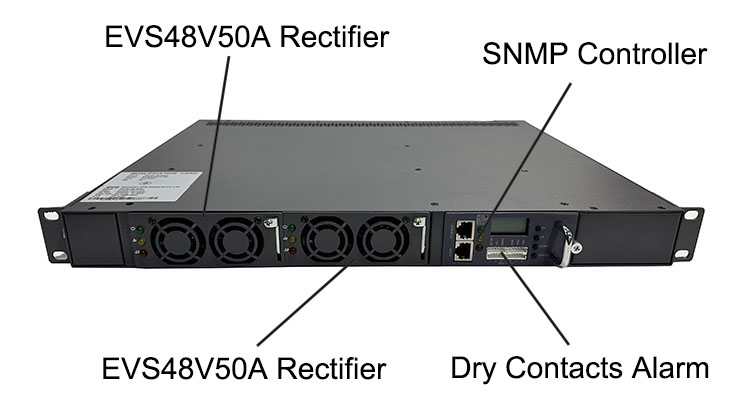

    10.Small size, height 1U, 2*48V50A evspower rectifier module

    DC Power Systems application
    * Small scale program controlled exchanges
    * Access network
    * Transmission equipment
    * Mobile communication
    * Satellite communication ground station
    * Microwave communication
    Company Information








    48v power supply Electrical Characteristics:



    1



    evspower rectifier system Input Characteristics



    No.



    Items



    Technical Specifications



    Unit



    Remarks



    1.1



    Input rated voltage



    200—240



    Vac





    1.2



    Input voltage range



    90—290



    Vac



    100-400VDC



    1.3



    Input Current



    ≤40



    A



    Lowest input voltage, rated load



    1.4



    inputvoltage frequency



    50/60



    Hz





    1.5



    Power factor



    ≥0.99





    rated input voltage, rated load



    1.6



    Input Shock Current



    ≤50



    A



    264Vac



    2



    Output Characteristics



    No.



    Items



    Technical Requirements



    Unit



    Remarks



    2.1



    Output Rated Voltage



    54



    Vdc





    2.2



    Output current range



    0—100



    A



    Inutpu voltage:176—280Vac.



    0—45



    A



    Inutpu voltage:90—175Vac



    2.3



    Output voltage range



    53.5



    Vdc





    2.4



    Efficiency



    ≥95.5%



    220Vac input,output 54Vdc/60A.



    2.5



    Output ripple & noise



    ≤200



    mVp-p



    Rated load, frequency band is limited to 20MHz



    2.6



    Turn-on output delay



    3—8



    S



    Vin=220Vac



    2.6



    Output rising time



    ≤200



    mS



    Output voltage rises

    from 10% to 90%, rated load.



    2.7



    Turn on/off overshoot



    ≤±5



    %Vo





    2.8



    Combined regulation



    ≤±1%







    2.10



    Transient Response



    Overshoot



    ≤ ±5



    %Vo

    		5%—50%—25% or 50%—75%—50% load change.


    Recovery time



    ≤ 200



    µS



    2.11



    Phone weighed noise voltage



    ≤2



    mV





    2.12



    p-pk value noise



    ≤400mV





    0—300KHz



    2.13



    Wide frequency noise voltage



    ≤100



    mV



    3.4—150KHz



    ≤30



    0.15—30000KHz



    2.14



    Disperse noise



    ≤5



    mV



    3.4—150KHz



    ≤3



    150—200KHz



    ≤2



    200—500KHz



    ≤1



    500—30000KHz

    Why choose us

    Installation site

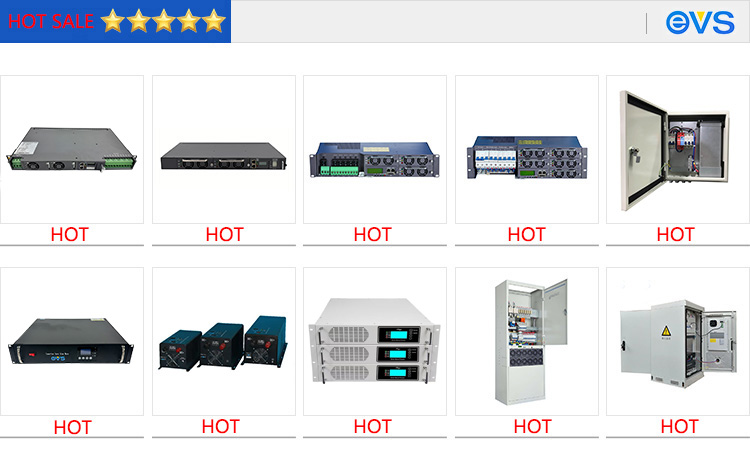

    hot sale
