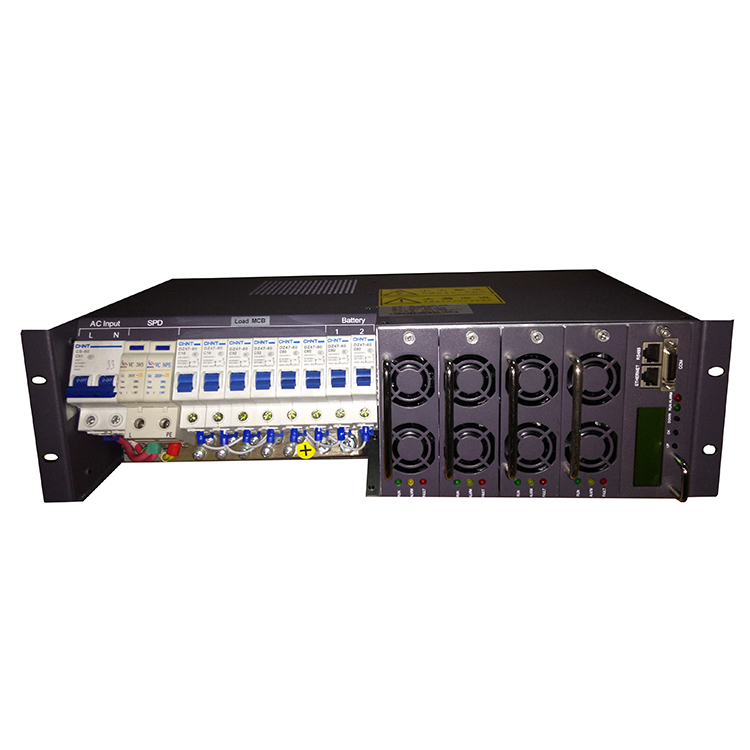

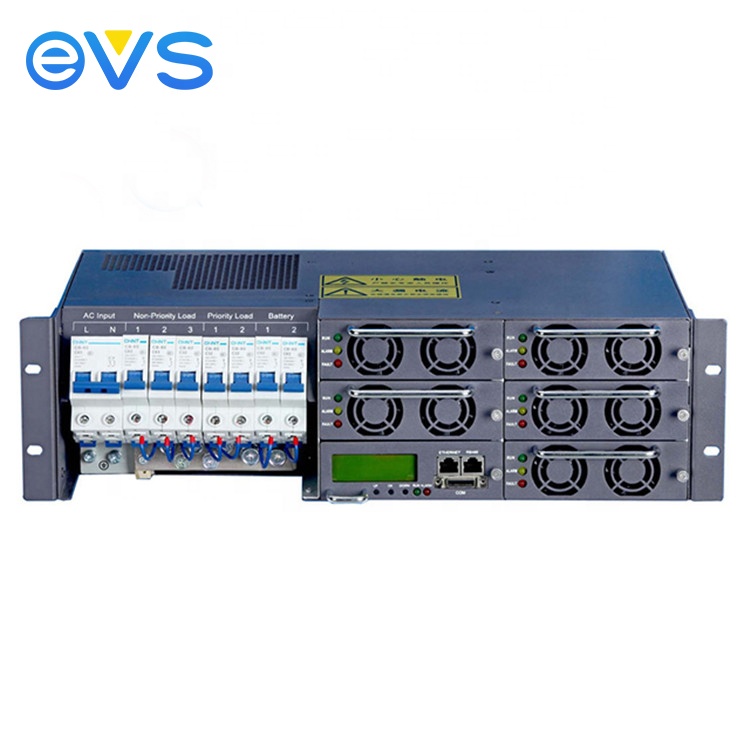

19 Inch 48V 100A Telecom Power Backup System 500W Switching AC DC Power Supply for Industrial Use 220V Input 60Hz Output

EVS3U-4890

minimum order:

1 piece

Quantity:

$350.00 - $450.00 / piece

Contact Now

add to cart

Input Voltage:90-280VAC
Output Current:10-100A
Output Voltage:-53.5V
Model Number:EVS3U-4890
Brand Name:OEM ODM
Place of Origin:Guangdong, China
Application:Industry, Laboratory, Industrial Equipment, Machines
Efficiency:92%
Output Frequency:50/60Hz
Output Type:Single
Protection:Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection
Type:AC-DC, DC-DC, telecom rectifier for switching power supply
Function:Telecom base stations
Compatible Brand:Emerson, Huawei, ZTE,vapel, Eltek
Logo:Can be design according to customer

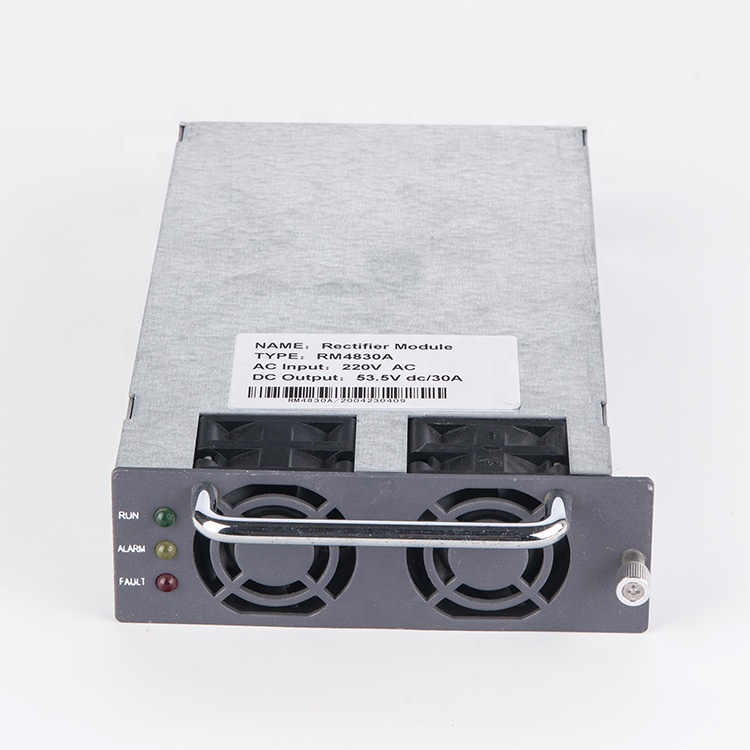

Condutor:Rectifier Module
Colors:RAL7035 or RAL9004

telecom power system performance index input
Parameter	Min.	Rated	Max.	Unit	Note
Rated working voltage range		110/220		Vac
Input voltage range	90	220	280	Vac	Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
Input frequency	43	50	67	Hz
Battery input	40	48	60	Vdc	Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)

power system telecom performance index output
Parameter	Min.	Rated	Max.	Unit	Note
Output voltage range	42	48	58	Vdc
Output current range (max.current)	0		100	A	Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.
Regulation accuracy			±1	%
Load regulation			±1	%
Source regulation			±1	%
Current sharing regulation			±5	%
Ripple ( peak – peak value)			200	mv	Network 20MHz testing.
Output efficiency	91	93.2	±1	%	230Vac Input
