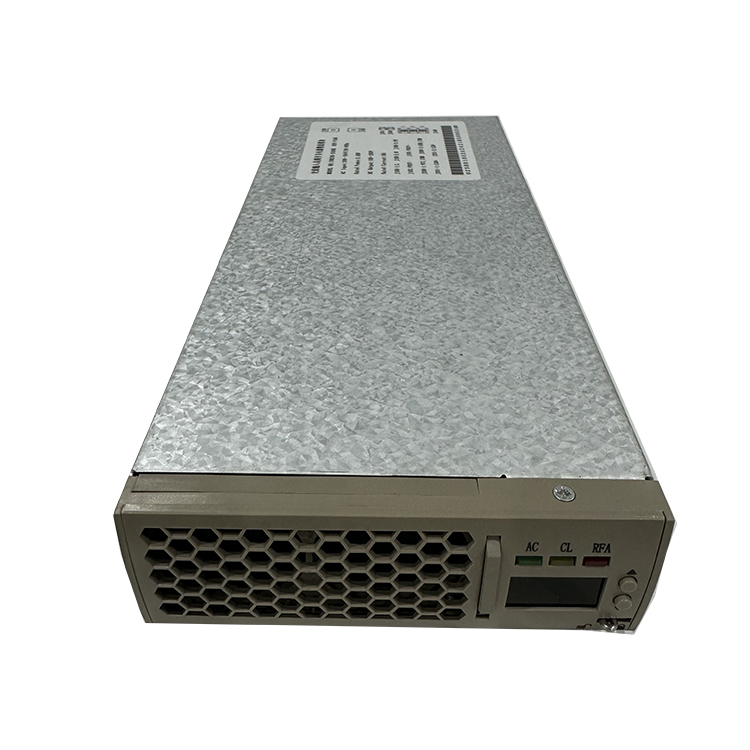

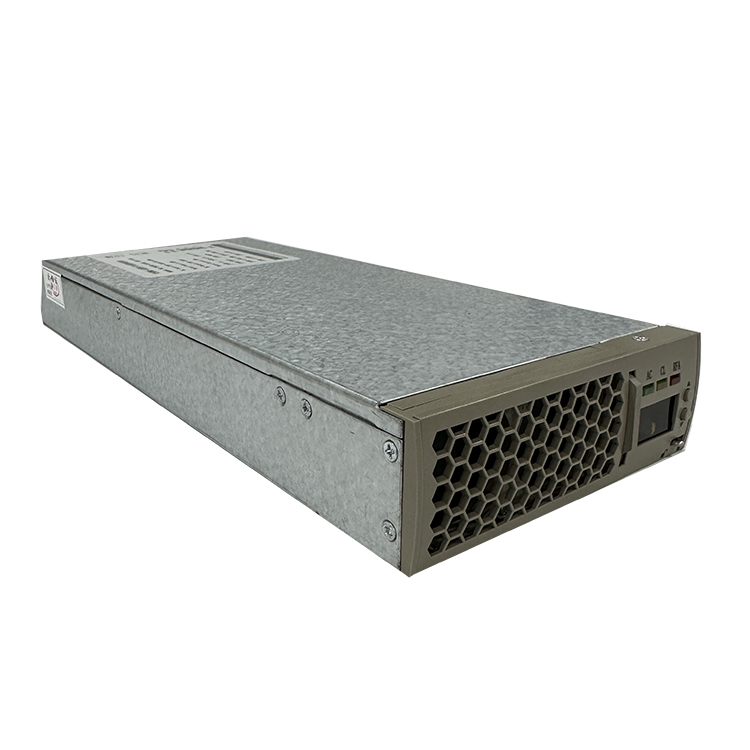

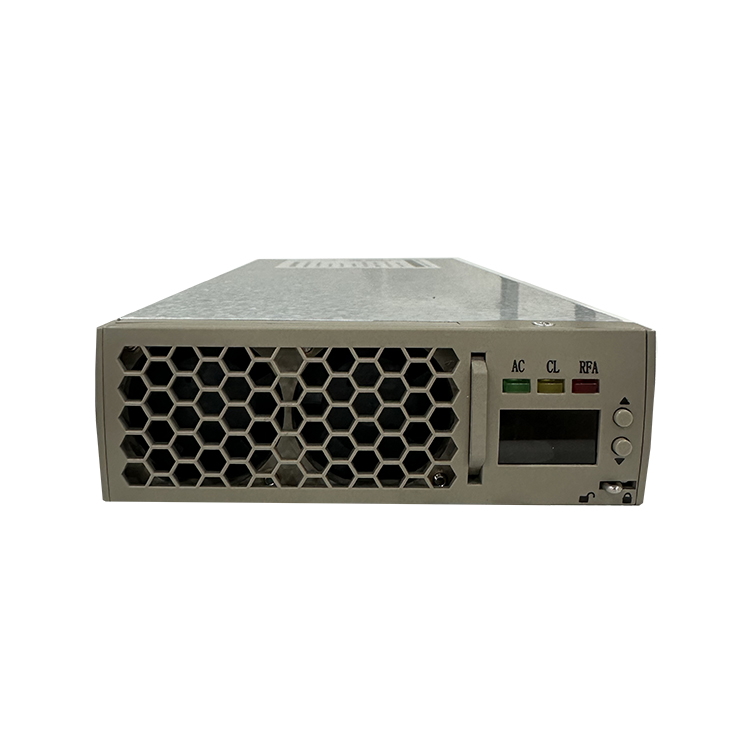

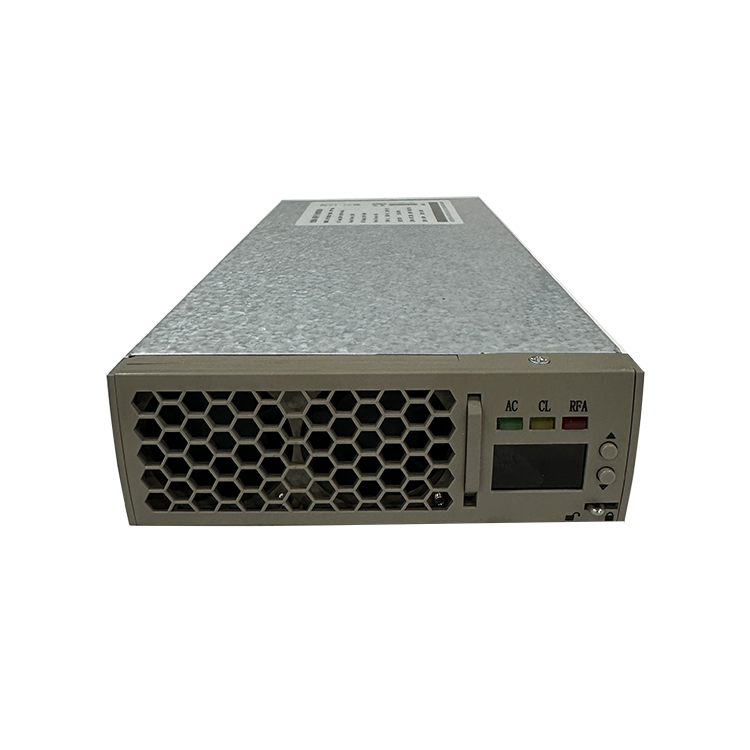

48V Electric Forklift Charger 3KW AGV RG 60A AC-DC Battery Charger Module with 220V Input & Output Voltage AC/DC

48v battery charger has adjustable DC voltage output. The module adopts DSP digital control, resonant soft switching, and active PFC

technology. The module has the characteristics of high power density, high power factor, small harmonics, high efficiency, etc., and has the performance of multi-module parallel connection.

EVSPOWER 48v battery charger Main features
1.High efficiency
Reduce energy consumption, meet energy conservation and emission reduction requirements, and save electricity bills for customers.
2.High power density
Saves customer space and reduces system costs.
3.DSP digital control
Fewer components, higher environmental stability, higher reliability, and more convenient capacity expansion.
4.Low input harmonics
Reduce pollution to the power grid, higher power grid adaptability.
5.Wide input voltage range, wide output voltage range
Suitable for most different input and output voltage occasions.
6.Wide operating temperature range
Wide operating temperature range meets most harsh working environments
7.Hot plug
Suitable for easy use and reduced maintenance costs.
8.Input anti-high voltage shock function
Greatly improves system reliability.
9.Complete fault self-detection prompts
Rich fault detection, convenient customer maintenance.

More features include:
PFC more than 0.99
Overall efficiency >95%
Harmonic current (THD) <5%
Current stabilizing accuracy <±1%
Voltage stabilizing accuracy <±0.5%
Charging Power: 3KW/3.5KW
Stepless adjustable range of current: 10%~110%
Stable and reliable: MTBF > 120000 hours
Support maximum module parallel: 60
Excellent insulation performance
CAN BUS communication
Full protection
