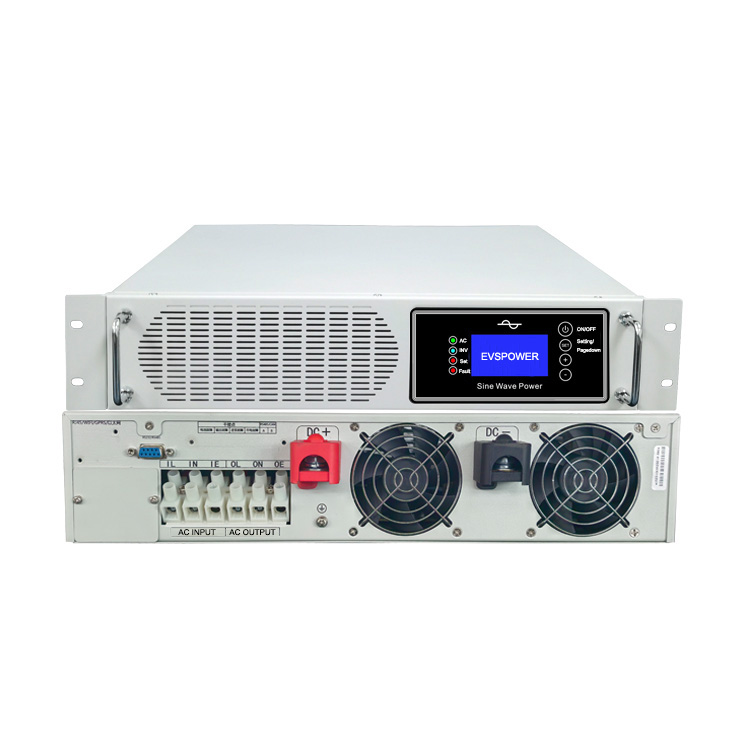

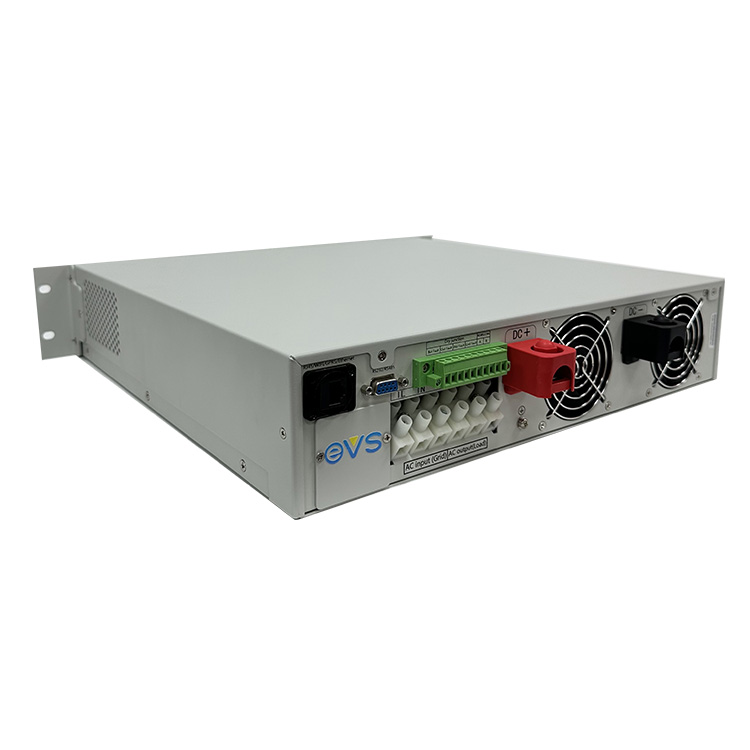

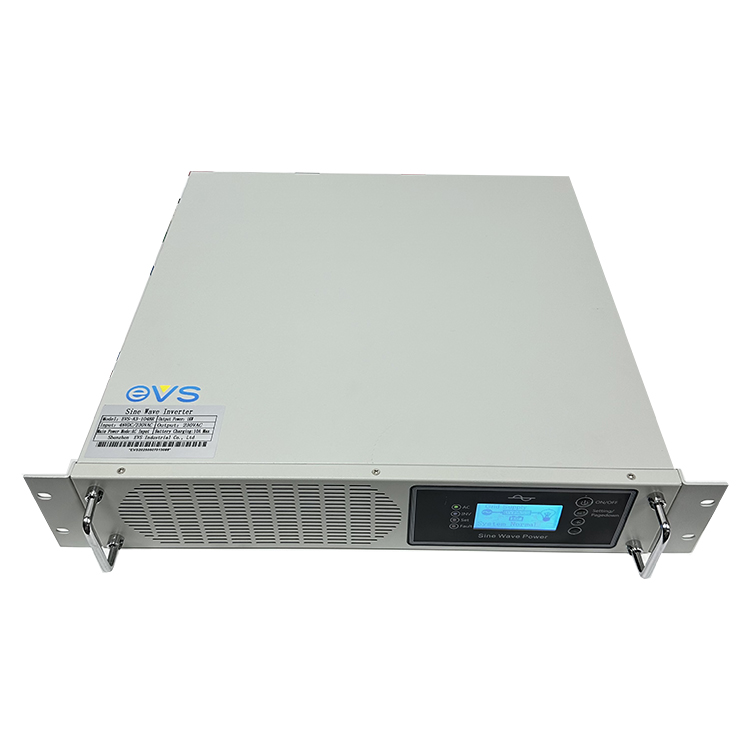

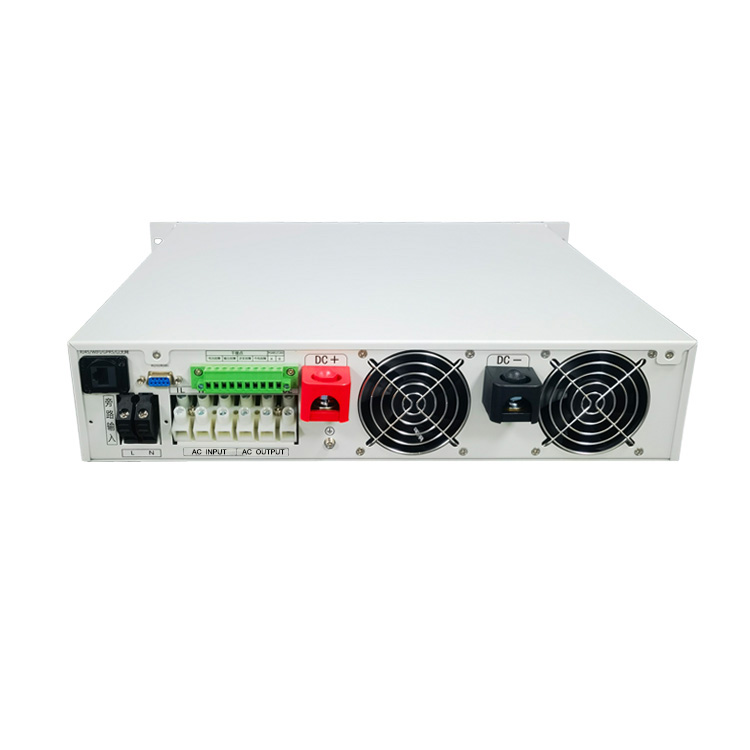

1KW Single Phase 48V DC to 120V AC Inverter & Converter 50/60Hz Industrial Use 9A Output 91% Efficiency

EVS-A3-1048

minimum order:

1 piece

Quantity:

$260.00 - $260.00 / piece

Contact Now

add to cart

Output Current:9A
Output Frequency:50/60 Hz
Phase:Single Phase
Type:DC/AC Inverters, 48 volt to 120 Volt AC Inverter
Model Number:EVS-A3-1048
Brand Name:EVSPOWER
Place of Origin:Guangdong, China
Application:Industrial, Home appliance/office equipment/solar system
Efficiency:91%
Network:SDK
Output Type:Single
Size:482*414*88mm
Weight:11kg
Product Name:1KW Inverter

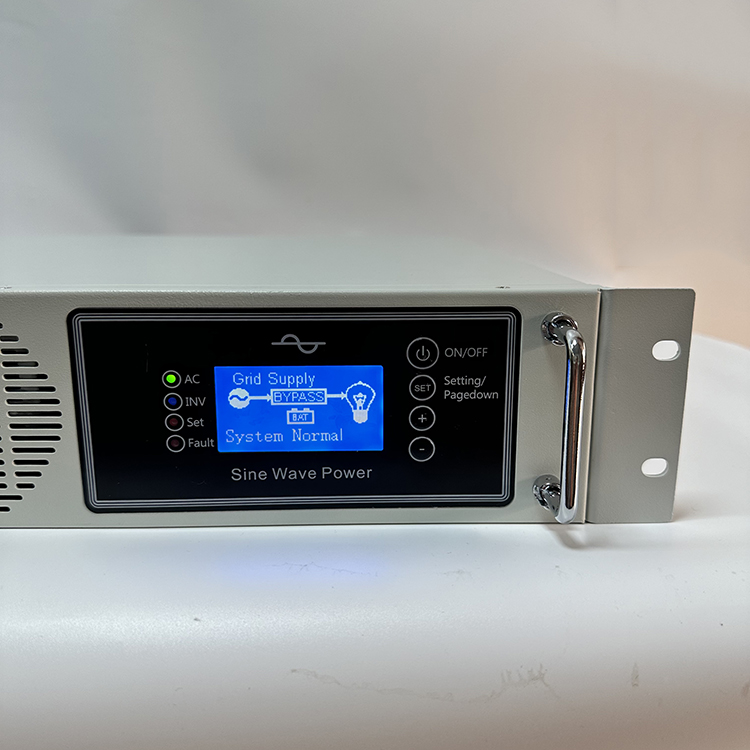

Display:LCD+LED Display
Transfer time:<5ms
Communication:RS485 Modbus
Transistor connection:Full-Bridge
Output voltage waveform:Sine wave

Product Description

Specification

48 volt to 120 Volt AC Inverter Feature

1.AC input startup available: the system could power on with the mains supply 220V input if there is no DC input

2.Unattended operation: the system switches automatically to provide AC 220V to the load between the DC input and AC input

3.Safety protection: DC input polarity converse, over/low voltage, short-road, over-load, over temperature, and inverting malfunction

4.Converse current control: not disturb another communication device in the same DC cabinet;

5.DC-dominated Mode: the inverter is providing AC 220V to the load normally, and automatically switches to bypass AC 220V input if a DC input fault occurs.

6.AC-dominated Mode: the inverter is on standby, the bypass is providing AC 220V to the load normal, and the load will switch to the inverter automatically if the bypass AC 220V input fault occurs 7.Maintenance bypass is available for battery replacement

8.5 groups of passive dry contacts respectively for DC input fault, AC input fault, overload information, by-pass information, and output fault (Standard configuration)

9.Independent RS232 and RS485 communication interfaces to monitor and manage the device in real-time;

(Standard configuration)

48 volt to 120 Volt AC Inverter Application scope

1.The pure sine wave inverter is specially designed for electricity and communication systems.

2.It is a conversion device that converts electricity from the mains city ac voltage or batteries dc voltage to an continuous and purified AC power apply for computers and other electrical equipment

3.To prepare for the instability of the city electricity and power cuts. It also prevents various distortions of utility power, such as power supply voltage drop, surge voltage, spike voltage, and broadcast frequency interference.

4.This telecome inverter is a new generation of dual input inverter solution designed for the field of communication applications, which is suitable for the high reliability of the communication system

5.The solution is equipped with a 110V/220V/230V AC power supply and a 220V DC power supply, which fills the gap between the traditional UPS power supply and common 5600W pure sine wave inverter solutions.

6.It uses a novel design structure that helps users to provide clean, stable, and durable AC power for critical loads, and has the same high reliability as the DC power supply system.

7.The design characteristics of the dedicated communication ensure the seamless conversion between the AC and DC power supply, almost no conversion delay, and no need to use the static switch.

item	value
Place of Origin	China
PF	0.99
Application	Industrial
Phase	Single Phase
Network	SDK
Brand Name	EVSPOWER
Model Number	EVS-A3-1048
Type	DC/AC Inverters
Output Type	Single Phase
Output Frequency	50/60 hz
Size	48241488mm
Weight	11kg
Efficiency	94%

Selling Point

1.High-performance efficiency: The 1KW Inverter boasts an impressive 91% efficiency, converting electrical power from DC to AC with minimal energy loss.

2.Wide input compatibility: Designed to function effectively with mains city AC voltage or battery DC voltage, this device is versatile and suitable for various power needs.

3.Advanced user interface: The LCD+LED display provides a clear indication of operating parameters, while the RS485 Modbus communication system ensures seamless data transmission and advanced control capabilities.

4.Robust connectivity: Utilizing a Full-Bridge transistor connection, this 48V DC to 120V AC 1KW Single Phase Power Inverter ensures stable connectivity and maximum power output.

5.Advanced safety features: Developed for home appliance, office equipment, and solar system applications, this inverter is equipped to handle power supply voltage drops, surge voltage, spike voltage, and broadcast frequency interference, ensuring continuous, purified AC power in case of utility power instability or power cuts.

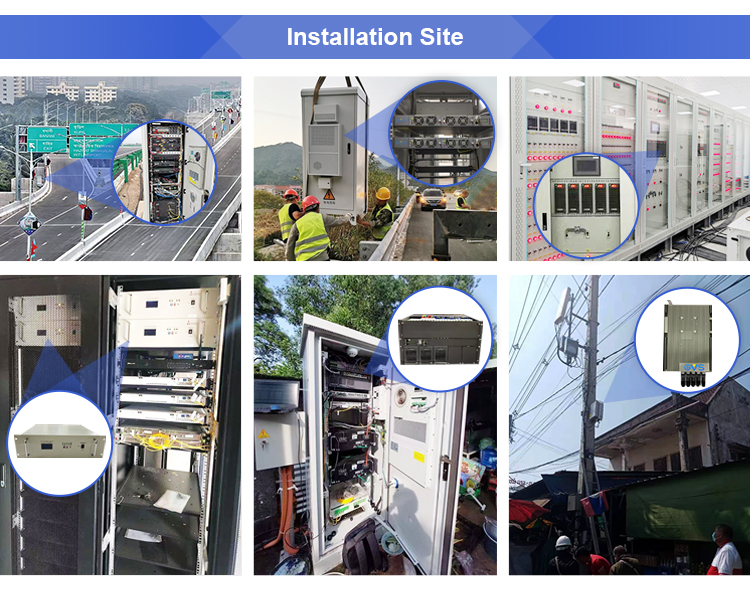

Installation Site
