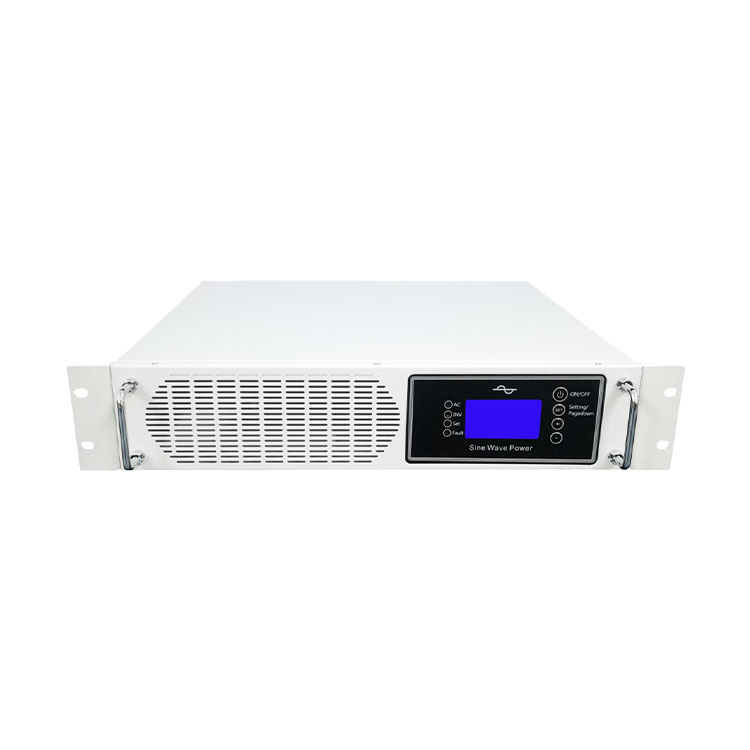

High Frequency Pure Sine Wave Telecom Inverter Single Output 1000W 2U 19-Inch 110v to 220v Converter Peak Power
- Output Current:4.5A
- Output Frequency:50Hz/60Hz
- Phase:Single Phase
- Type:DC/AC Inverters
- Model Number:EVS110/220-1000AR
- Brand Name:EVS
- Place of Origin:Guangdong, China
- Application:Industrial, Electric Vehicle
- Efficiency:80%
- Network:SDK
- Output Type:Single

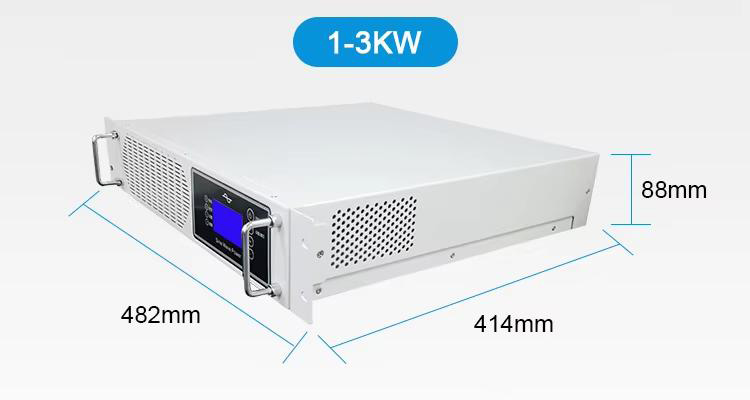

- Size:482(W)*88(H)*414(L)mm
- Weight:11Kg
- Voltage Precision(V):220±1.5%
- Frequency Precision(Hz):50±0.1%
- Transfer Time(ms):≤5ms
- Isolation(IN/OUT):1500Vac,1minute
- Noise:≤40dB
- Temperature:-25℃~+50℃
- Humidity:0~90%
EVS series 110v to 220v Converter are designed for the actual needs of communication systems and post and telecommunications. The installation size is small, and the 2U standard 19-inch rack-mounted design can meet the needs
of automation and networking of inverter management in the IT era. , And low noise has little impact on office or computer
room staff.
EVS110v to 220v Converteradopts advanced SPWM and CPU control technology, with precise control, isolation of input and output, safety, high efficiency, and good reliability, especially for the impact of inductive loads. This series of products are
not only small in size, light in weight, beautiful in appearance, easy to install and maintain, simple to operate, low noise,
low back-injection noise, and no pollution, but also have real-time data collection and remote communication functions to implement network management and remote communication for the majority of system users Monitoring provides
convenience.
| EVSPOWER DC125V Series | ||||||||||
| rated power | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | |
| Rated DC voltage | DC108V | |||||||||
| Battery voltage range | DC90-144V | Low voltage warning | 99V | |||||||
| Low voltage power outage | 99V(90-108V(ADJ) | |||||||||
| Low voltage recovery | 121.5V | |||||||||
| High voltage power outage | 141V(137-144V ADJ) | |||||||||
| High voltage recovery | 139.5V | |||||||||
| Low voltage shutdown | 85.5Vdc | |||||||||
| DC priority type | Low voltage switching of battery to mains voltage point | 99V(94.5-114.5V) | ||||||||
| Return to the battery supply voltage point after sufficient supply | 117V(108-130.5V) | |||||||||
| 170-280Vac(UPS) 90-280Vac(APL) | |||||||||||||
| Voltage drop point due to under voltage of the municipal power supply | 170Vac±5V (UPS) 90Vac±5V (APL) | EVSPOWER | |||||||||||
| Under voltage recovery point of municipal power supply | 180Vac±5V (UPS) 100Vac±5V (APL) | ||||||||||||
| Overvoltage and power failure voltage point of mains power | 280Vac±5V | ||||||||||||
| Overvoltage recovery voltage point of mains power | 270Vac±5V | ||||||||||||
| Communication input frequency | 50HZ/60HZ(ADJ) | ||||||||||||
| Frequency range | 40-65HZ | ||||||||||||
| Single mains power on function | yes | ||||||||||||
| UPS conversion time | <5ms(UPS);<13ms(Electrical mode) | ||||||||||||
| AC output | AC output voltage | 220/230/240Vac±3% ADJ | |||||||||||
| Communication output frequency | 50±1HZ/60±1HZ | ||||||||||||
| Output waveform | Pure sine wave (full voltage range) | ||||||||||||
| Waveform distortion rate | ≤3%(Linear Load) | ||||||||||||
| Inverter peak efficiency | 95% | ||||||||||||
| Dynamic response | (0~100%)≤5% | ||||||||||||
| Power factor | >0.9 | ||||||||||||
| Peak power (surge capability) | Twice the rated power in 3 seconds | ||||||||||||
| Idle power consumption (standby power consumption) | 30W | ||||||||||||
| power derating | No derating (output power will not decrease with the decrease of battery voltage) | ||||||||||||
| work environment | Noise (1 meter) | ≤40dB | |||||||||||
| Environmental temperature for use | -40℃~+50℃ | ||||||||||||
| Storage environment temperature | -40℃~+70℃ | ||||||||||||
| humidity | 0~90% | ||||||||||||
| Using altitude (m) | ≤ 5000 (If it is higher than 1000, the usage will be reduced by 10% per liter starting from 1000) | ||||||||||||
| Continuous running time | Can run continuously for a long time | ||||||||||||
| Cooling method | Temperature controlled variable speed fan for heat dissipation | ||||||||||||
| Mean time between failures | Not less than 100000 hours | ||||||||||||
