    High Power 3000W 48Vdc Pfc AC DC Switching Power Supply Single for Motor Compressor for Industrial Automotive Applications

    EVS -4860
    minimum order:
    1 piece
    Quantity:
    $362.00 - $362.00 / piece
    Contact Now
    add to cart
    • Output Current:60A/30A
    • Output Frequency:50/60
    • Phase:Single Phase
    • Type:AC/DC Converter
    • Model Number:EVS -4860
    • Brand Name:EVS
    • Place of Origin:Guangdong, China
    • Application:Motor, Industrial, Compressor, Automotive, Electric Vehicle, for Telecom Equipment,Battery Charging
    • Efficiency:92%
    • Network:SDK
    • Output Type:Single
    • Size:60CM*40*20CM
    • Weight:10KG
    • Model:Telecom power system
    • anti-theft:Module loss report
    • Monitoring module:hot swappable
    • Mounting Type:19 inch 1U rack mount
    • monitor:SNMP monitor
    • Use in:exchange room, server room,base station,data communication







    Product Description


    EVS’s  telecom power supply are designed for wireless broadband access, fixed-line applications, Internet backbone and datacenters. Our reliable, energy-efficient telecom power solutions protect against grid power interruptions and fluctuations and help operators reduce OPEX and their carbon footprint.





    This model of telecom power supply is for commucication,
    Output voltage -54V,Output current 0-60A;Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.







    EVS telecom power supply,dc power supply , with the following features and functions:





    Telecom power supply Information



    1.Telecom power system 48v dc rectifier Power Supply with Modbus Snmp
    2. Hot swappable and Plug and Play;
    3 .N+1 redundancy,each module available in 30A@48Vdc;
    4 .AC /DC distribution system for AC input/ DC output distribution and protection;
    5. RS485, Modbus,SNMP communication for remote control;
    6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;
    7.High Efficiency with low EMI. CE Safety and EMC certification
    8. the system has high power factor greater than 0.98;
    9. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

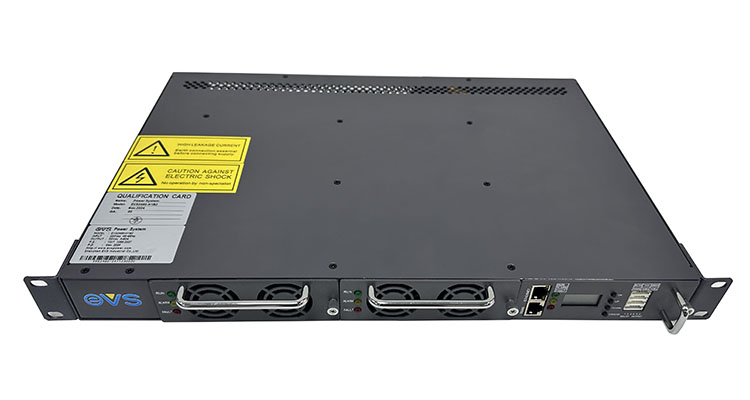

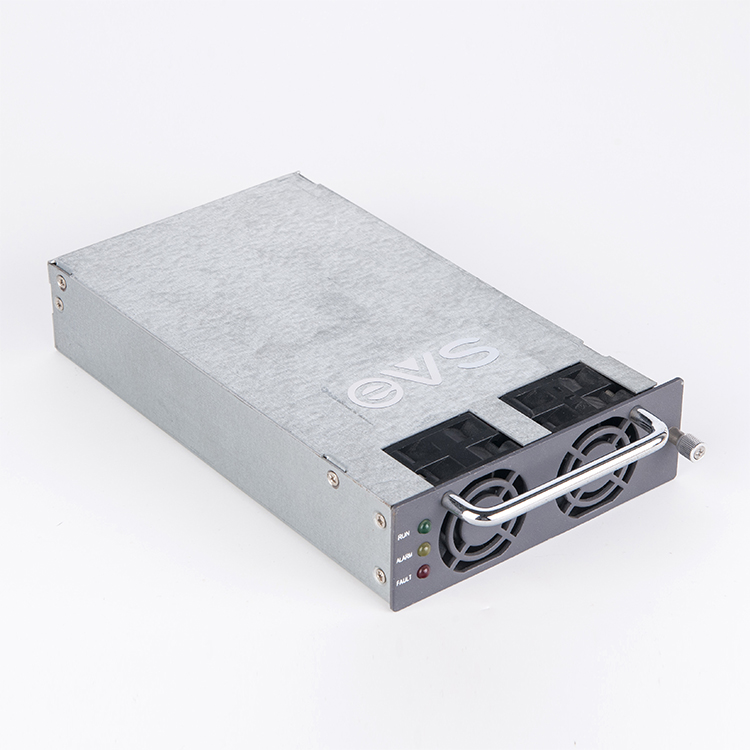

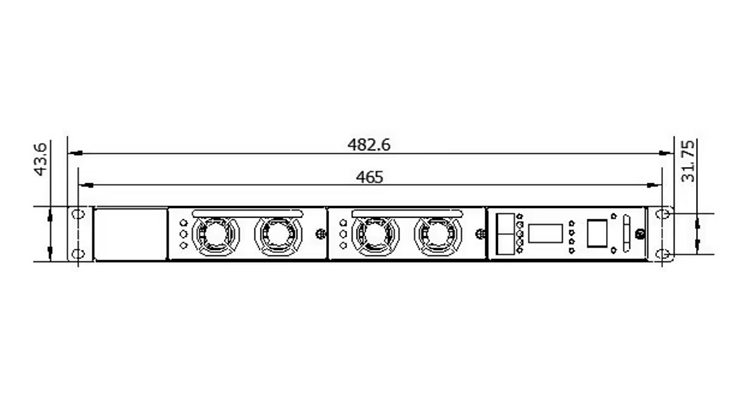

    10.Small size, height 1U, 2*48V30A evspower rectifier module



    Telecom power supply application



    * Small scale program controlled exchanges

    * Access network

    * Transmission equipment

    * Mobile communication

    * Satellite communication ground station

    * Microwave communication




    2, 48v dc switching power supplyConfiguration
























    Optional configurationRectifier moduleModule maximum number of optionalDistributionMonitoring moduleRemark
    Configuration30A1-2pcs

    AC/DC distribution: 220V input,


    Load output:30A-60A


    		MonitorSpecific index refer to module specification

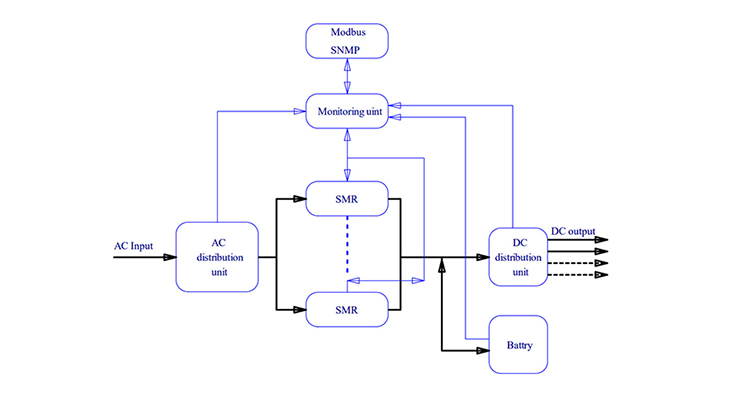

    3, 48v dc switching power supply work principle



    4,  48v dc switching power supply performance index




















































                   EVSPOWER Input



    Parameter



    Min.



    Rated



    Max.



    Unit



    Note



    Rated working voltage range







    110/220







    Vac







    Input voltage range



    90



    220



    290



    Vac



    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC



    Input frequency



    43



    50



    67



    Hz







    Battery input



    43.2



    53.5



    58



    Vdc



    Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)



























































































                     EVSPOWER Output



    Parameter



    Min.



    Rated



    Max.



    Unit



    Note



    Output voltage range



    42



           53.5



    58



    Vdc







    Output current range


    (max.current)



    0







    60



    A



    Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.



    Regulation accuracy











    ±1



    %







    Load regulation











    ±1



    %







    Source regulation











    ±1



    %







    Current sharing regulation











    ±5



    %







    Ripple ( peak – peak value)











    200



    mv



    Network 20MHz testing.



    Output efficiency



    91



    93







    %



    220V Input
