19-inch 1U Rack Mount Switching Power Supply 220v Ac to 48v Dc Rectifier 30A 50A 60A Rectifier for Industrial Use

EVS4830-H1B1

minimum order:

1 piece

Quantity:

$360.00 - $380.00 / piece

Contact Now

add to cart

Output Current:60 A
Phase:Single Phase
Type:AC/DC Converter
Model Number:EVS4860-H1A2
Brand Name:EVSPOWER
Place of Origin:Guangdong, China
Application:Industrial
Efficiency:96%
Network:SDK
Output Type:Single
Size:482*253*44mm
Weight:6kg
Mount:220v Ac to 48v Dc Rectifier
dominant position:OEM ODM
Apllication:for telecom equipment,battery charging
Equal current:≤5%
Peak to peak:≤200mV
Rectifier:hot-swap
Controller:hot-swap

Product Description

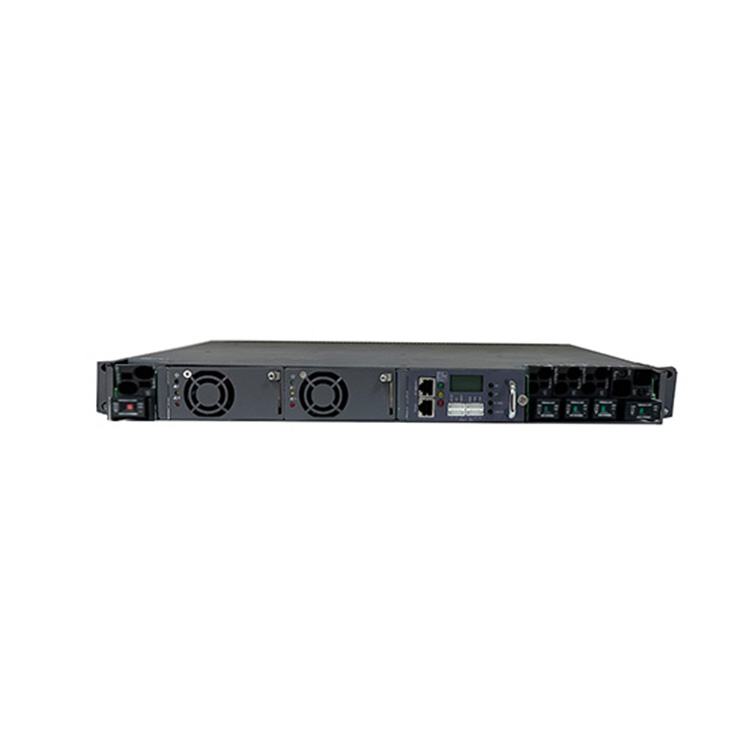

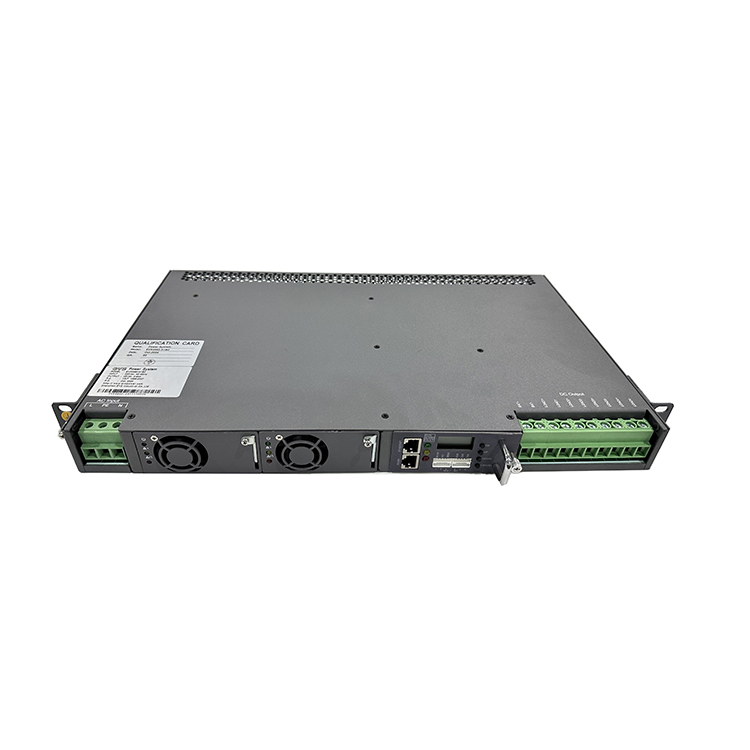

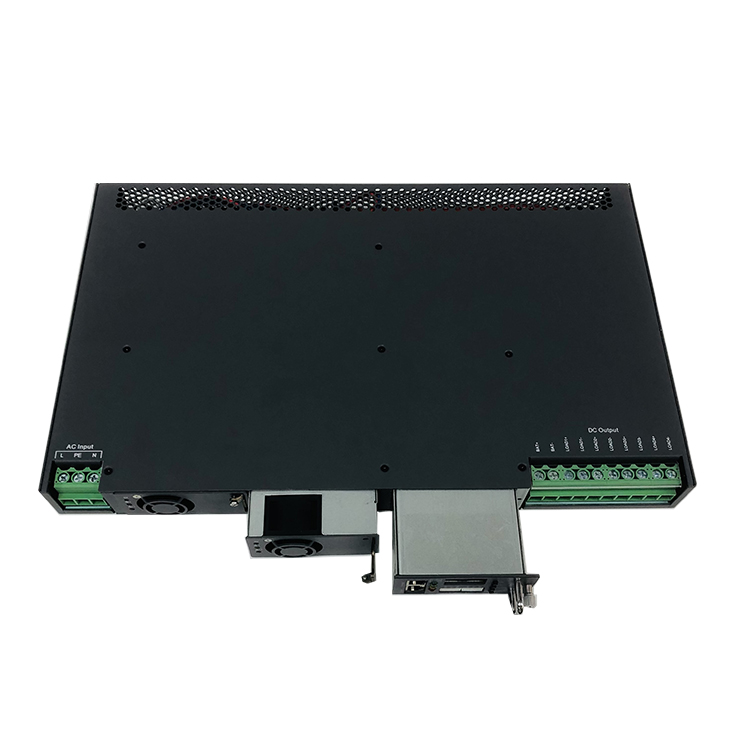

1U Rack Mount switching power supply 220v to 48v 60A telecom power with battery charge

This 220v ac to 48v dc rectifier of power supply is for commucication,
Output voltage 48V,Output current 0-60A;Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.

220v ac to 48v dc rectifier with chargers, batteries & power supplies

EVS Series™ 1U Rack Mount switching power supply 48v

Product Description:

EVS Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. EVS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:

Computer Peripherals and Networking
Telecommunications and Fiber optic Network
Voice, Data and Analog Communications
Universities and Educational Facilities
Instrumentation and Electronics
Utility and Power Industries
Data Acquisition
Medical

220v ac to 48v dc rectifier Power Supply Main Features:

EVS Power Series is a reliable, efficient and inexpensive solution for all kind of AC to DC power supply applications.

220v ac to 48v dc rectifier Information

1.Telecom power system 48v dc rectifier Power Supply with Modbus Snmp
2. Hot swappable and Plug and Play;
3 .N+1 redundancy,each module available in 30A@48Vdc;
4 .AC /DC distribution system for AC input/ DC output distribution and protection;
5. RS485, Modbus,SNMP communication for remote control;
6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;
7.High Efficiency with low EMI. CE Safety and EMC certification
8. the system has high power factor greater than 0.98;
9. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

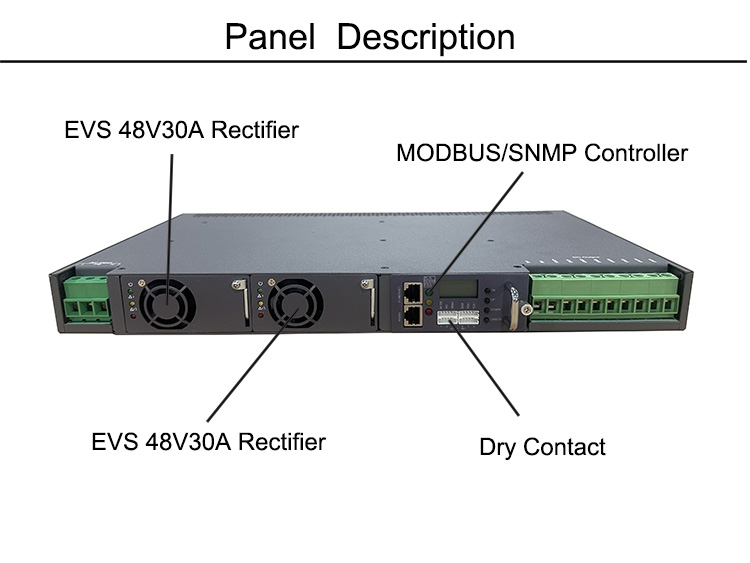

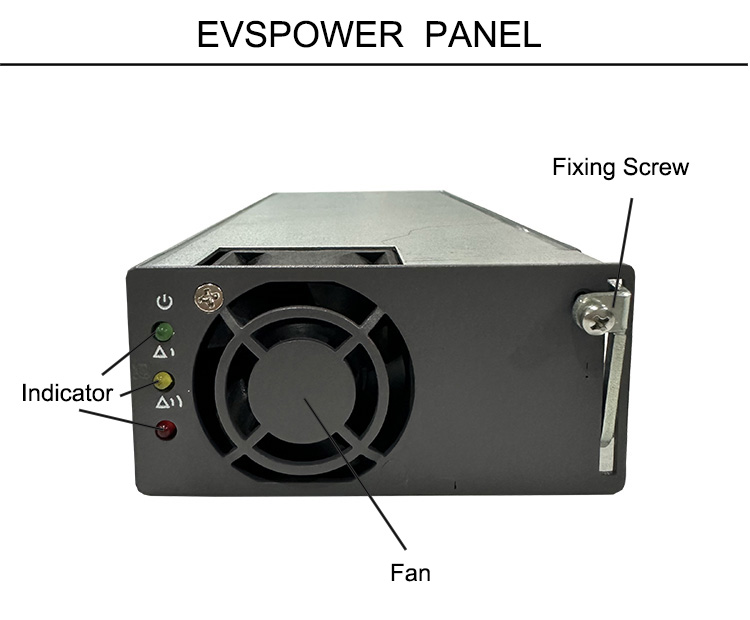

10.Small size, height 1U, 2*48V30A evspower rectifier module

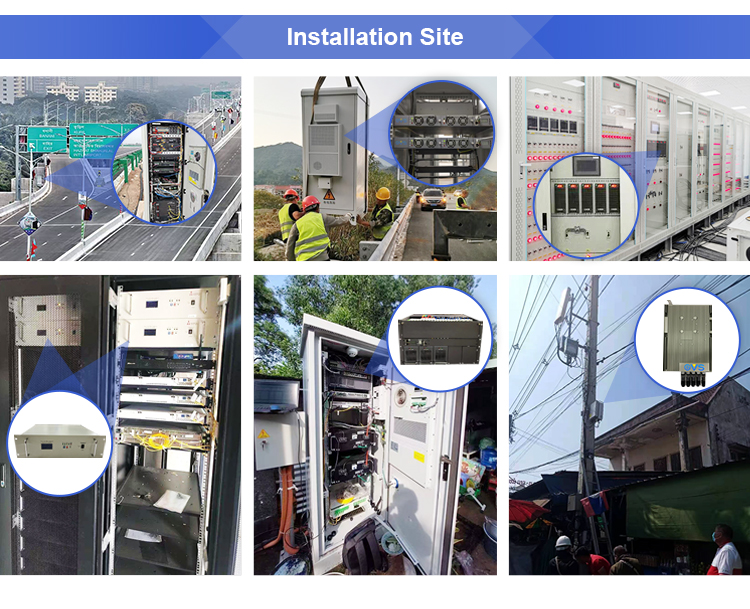

220v ac to 48v dc rectifier application

* Small scale program controlled exchanges

* Access network

* Transmission equipment

* Mobile communication

* Satellite communication ground station

* Microwave communication

Power Supply General Specifications:

Input Voltage	Universal 80V to 300VAC /100V-400VDC
Input Frequency	47Hz to 63Hz
Operational Temperature	-25°C to 55°C
Storage Temperature	-25°C to 85°C
Cooling	Free Air Convection
Overload Protection	Auto-Recovery
Efficiency	95% Typical

220v ac to 48v dc rectifier technical
AC Input	Input	Single phase 220Vac .50hz
	Frequency	50HZ,Range:45Hz~66Hz
	Voltage Range	90V~290VAC
DC output	Rated current(A)	30A
	Max Output Current	0~35A
	Rated power(W)	1800W
	Rated voltage(V)	220V
	Equ- charge (V)	56.4V(42-58Vdc adjustable);
	Float voltage(V)	53.5V(42-58Vdc adjustable);
	Output Accuracy(V)	≤1%
	Output ripple voltage	≤200mV<0-20mHZ>
	PF	0.99@220VAC/30A
	Leakage current	≤1.5mA
Indicator	LCD display	Input/output voltage,Frequency,output current,Environment,Rate
Indicator	Power status	City power,Output,Under voltage,overload voltage
Current Sharing		±5% from true average current between modules;
Load regulation		2%
Line regulation		1%
Dimension		482X253X44mm (DWH)
