19-inch 1U Telecom Industry Power Supply 24V 30A AC DC Switching System with 220V Input Voltage

• Input Voltage:220 V
• Output Current:0-60A
• Output Voltage:26.8V
• Model Number:EVS2460-H1B2
• Brand Name:EVS
• Place of Origin:Guangdong, China
• Application:Industry, Laboratory, Industrial Equipment, Machines, Battery Charging, Industrial Din Rail Power Supply
• Efficiency:92%
• Output Frequency:50Hz/60Hz
• Output Type:Single
• Protection:Overcurrent Protection, Overvoltage Protection, Overloading Protection, Over Temperature Protection, Over Power Protection, Undervoltage Protection
• Type:AC-DC, DC-DC
• Mount:24v telecom power system
• dominant position:OEM ODM
• Apllication:for telecom equipment,battery charging
• efficiency:96%
• Equal current:≤5%
• Peak to peak:≤200mV

24V  power supply with chargers, batteries & power supplies

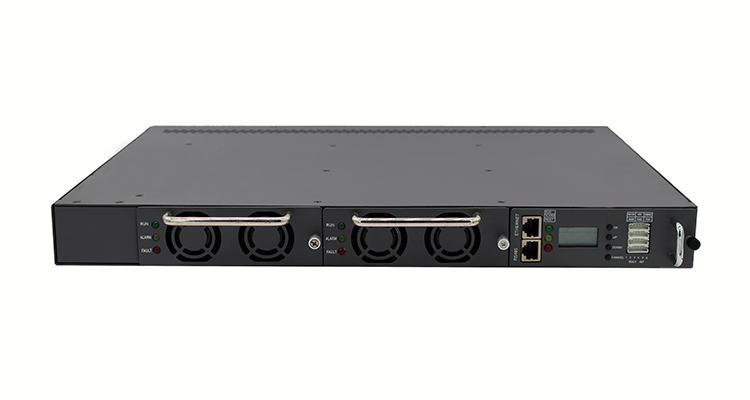

EVS Series™ 1U Rack Mount AC to DC Switching Power Supplies

24v power supply  Product Description:

EVS Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. EVS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:

• Computer Peripherals and Networking


• Telecommunications and Fiber optic Network


• Voice, Data and Analog Communications


• Universities and Educational Facilities


• Instrumentation and Electronics


• Utility and Power Industries


• Data Acquisition


• Medical

24v power supply  Main Features:

EVS Power Series is a reliable, efficient and inexpensive solution for all kind of AC to DC power supply applications.

• Compact Rack Mount Size


• Universal AC (Alternate Current) Input


• Filtered IEC AC Inlet Connectors


• EMI FCC Class B Clearance


• Single and Multiple Output


• Highly Efficient Design


• 1U Low Profile Height


• NO Minimum Load Required


• Low Voltage Power Supply Alarm


• Data Line Alarm And ACO (Alarm Cut Off) System


• Cost Effective and Reliable Power Supply

Power Supply General Specifications:

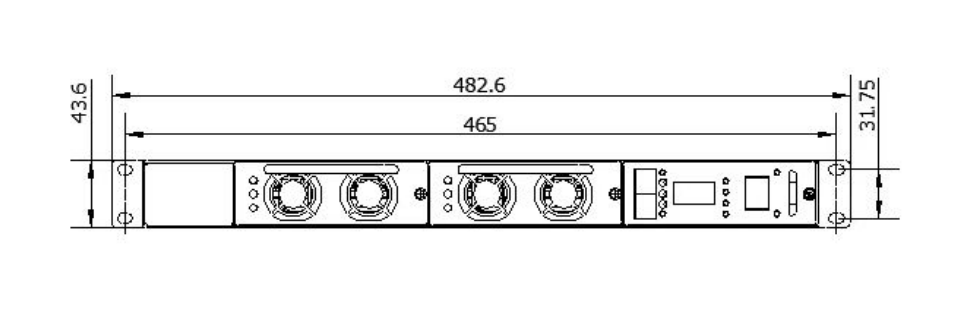

24v power supply Installation size chart:

Machine size: W (482.6MM) * L (310mm) *H (43.6mm)
