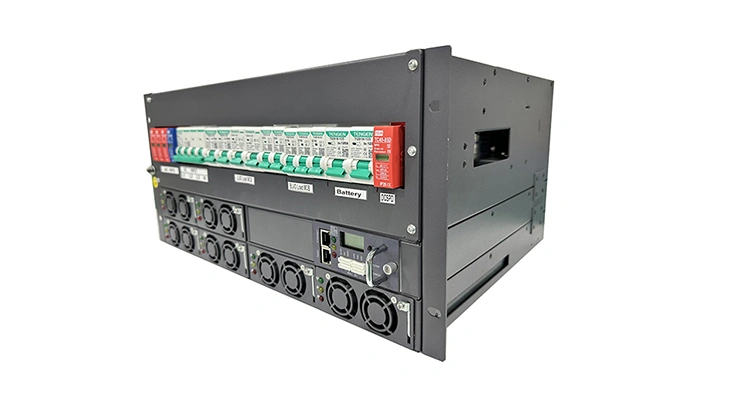

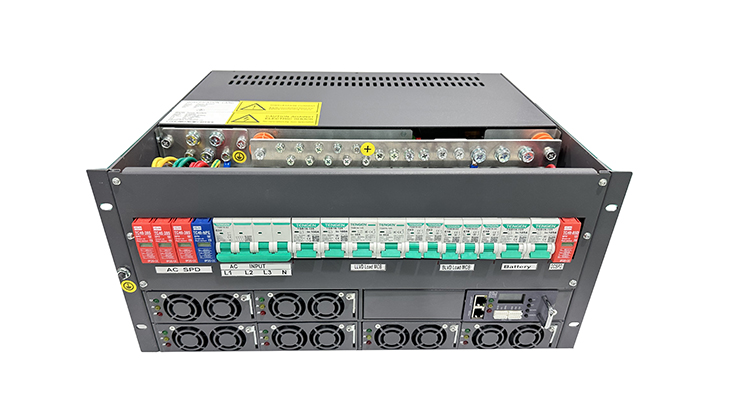

19 Inch Rack Mounted 220V 380V AC 48V DC 100A 150A 200A 300A Switching Rectifier Module for Telecom Power

Input

Parameter

Min.

Rated

Max.

Unit

Note

Rated working voltage range

220/380

Vac

Input voltage range

220/380

Vac

Three-phase five-wire input phase to phase 380V / relative zero line 220VAC

Input frequency

43

50

67

Hz

Battery input

43.2

53.5

58

Vdc

Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)

Output

Parameter

Min.

Rated

Max.

Unit

Note

Output voltage range

42

53.5

58

Vdc

Output current range

(max.current)

0

200

A

Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.

Regulation accuracy

±1

%

Load regulation

±1

%

Source regulation

±1

%

Current sharing regulation

±5

%

Ripple ( peak – peak value)

200

mv

Network 20MHztesting.

Output efficiency

91

93

%

220Vac Input
