    Single Output 48VDC 50/60Hz Frequency 220V AC 48V DC 3000W 60A Converter 2x30A Modules Control Monitor 60A Output

    EVS-4860
    minimum order:
    1 piece
    Quantity:
    $350.00 - $350.00 / piece
    Contact Now
    add to cart
    • Input Voltage:230 V, 220vac
    • Output Current:30 A, 60 A
    • Output Voltage:-53.5V
    • Model Number:EVS-4860
    • Brand Name:EVS
    • Place of Origin:Guangdong, China
    • Application:Industry, Industrial Equipment, Machines, Battery Charging
    • Efficiency:95%
    • Output Frequency:50/60 Hz
    • Output Type:Single
    • Protection:Undervoltage Protection, Over Power Protection, Overloading Protection, Over Temperature Protection, Overvoltage Protection, Overcurrent Protection, Short Circuit Protection
    • Type:AC-DC, DC-DC, telecom rectifier for switching power supply
    • Name:220V AC to 48V DC Converter
    • Function:Telecom base stations
    • Logo:EVS
    • Condutor:dc rectifier
    • Controller:Hot swappable
    • Rectifiers:Hot swappable
    • rack mount:1U rack mount

    Our products

     220V AC input  48V DC output  60A  3000w dc rectifier


    220V AC to 48V DC Converter Application


    Small size program-controlled switches


    Access network


    Transmission equipment


    Mobile communication


    Satellite communications ground station


    Microwave communication power supply





    220V AC to 48V DC Converter Features


    u Rectifier module adopts active power factor compensation technology, power factor up to 0.99.


    u  input voltage of normal operating range as wide as 90 ~ 290V.


    u Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 92%.


    u Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.


    u Rectifier module adopts no damage hot insert and pull technology, replacement time less than 1min.


    u Network design, providing a variety of communication interfaces (for example: RS485, dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.


    u Complete fault protection, fault alarm function.


    u Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.


    u Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet  requirements for conducted and radiated interference of"the communication power equipment electromagnetic compatibility Limits and methods of measurement"( People's Republic of China telecommunications industry standard YD/T983).


    u Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.





    220V AC to 48V DC Converter Configuration


    Power system consists of cabinet power distribution, rectifier module (at least with one) and monitoring module, specific optional module can refer to the following table:

























    Optional



    Rectifier



    Module  number



    Distribution



    Monitoring



    Remark



    Configuration



    15A / 30A



    1-2pcs



    distribution: AC220V input,  Load output:10A-60A






    Monitor



    Specific index refer

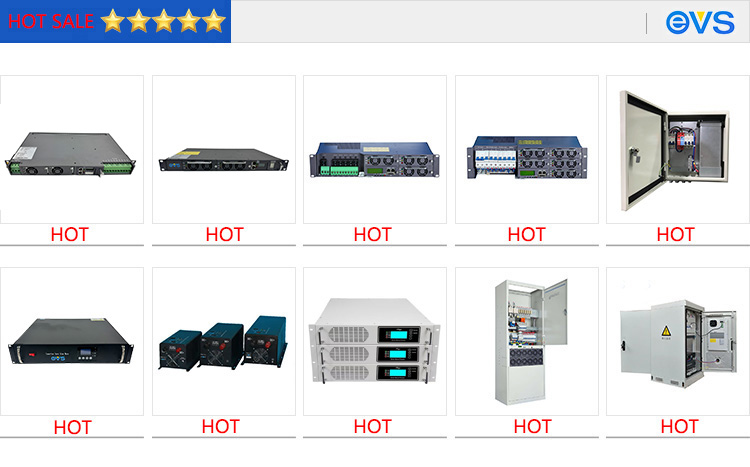

    hot sale
