    2025 Hot Selling AC DC Power System Switching Supply Monitor SNMP 60A 90A 120A 150A 200A 250A 300A Triple Output Type for Motor

    EVSPOWER
    minimum order:
    1 piece
    Quantity:
    $100.00 - $110.00 / piece
    Contact Now
    add to cart
    • Application:Industrial, motor, electric vehicle, for Telecom Equipment,Battery Charging
    • Phase:Single Phase
    • Network:SDK
    • Place of Origin:Guangdong, China
    • Brand Name:OEM
    • Model Number:EVSPOWER
    • Type:DC/AC Inverters, 48V power supply
    • Output Type:Single Phase, Triple
    • Output Current:30A/50A
    • Size:19 inch rack mounted
    • Weight:10kg
    • Efficiency:0.95
    • Operation:Operation
    • efficiency:96%
    • Use in:exchange room, server room,base station,data communication



    Product Description

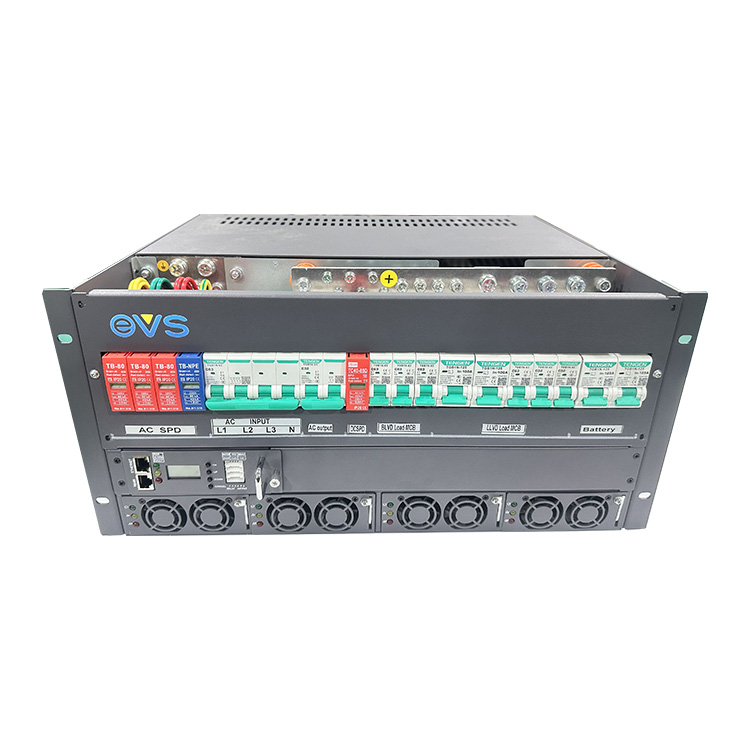

    Rack Mount 48v power supply with battery charge



    This model of power supply is for commucication,
    Output voltage 48V,Output current 0-200A;Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.





    48v power supply with chargers, batteries & power module

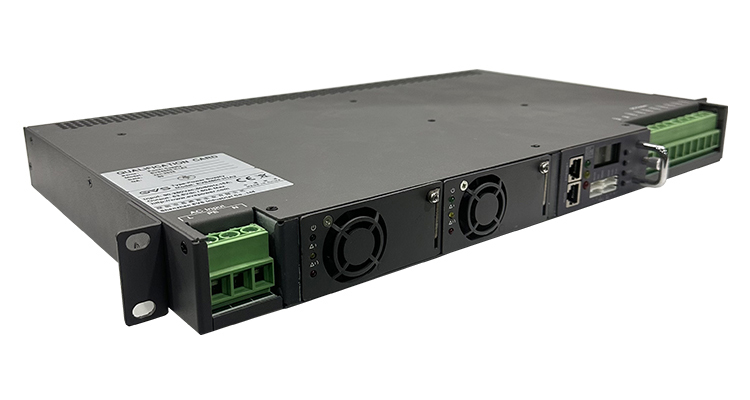

    EVS Series™ Rack Mount power module




    Product Description:



    EVS Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. EVS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:



    • Computer Peripherals and Networking

    • Telecommunications and Fiber optic Network

    • Voice, Data and Analog Communications

    • Universities and Educational Facilities

    • Instrumentation and Electronics

    • Utility and Power Industries

    • Data Acquisition

    • Medical

      •

    Power Supply Main Features:



    EVS Power Series is a reliable, efficient and inexpensive solution for all kind of AC to DC power supply applications.




    48v power supply Information

    1.Telecom power system 48v dc rectifier Power Supply with Modbus Snmp
    2. Hot swappable and Plug and Play;
    3 .N+1 redundancy,each module available in 30A 50A@48Vdc;
    4 .AC /DC distribution system for AC input/ DC output distribution and protection;

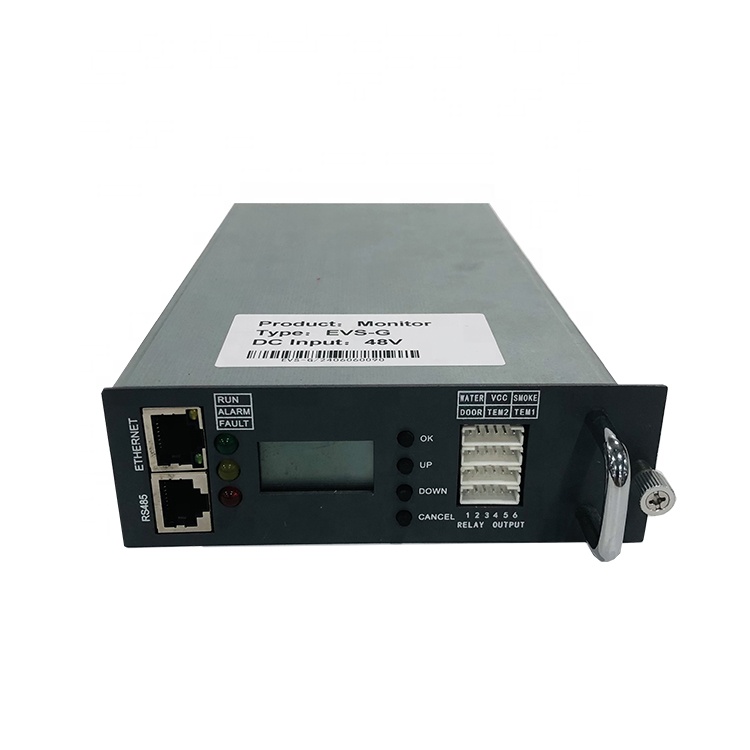

    5. RS485, Modbus,SNMP communication for remote control;
    6.Compact design and embedded modular system, support power system and module sleep, efficient mixing, energy saving;
    7.High Efficiency with low EMI. CE Safety and EMC certification
    8. the system has high power factor greater than 0.98;
    9. there are input under voltage, input voltage, output voltage, output current limiting, output short circuit, over temperature protection;

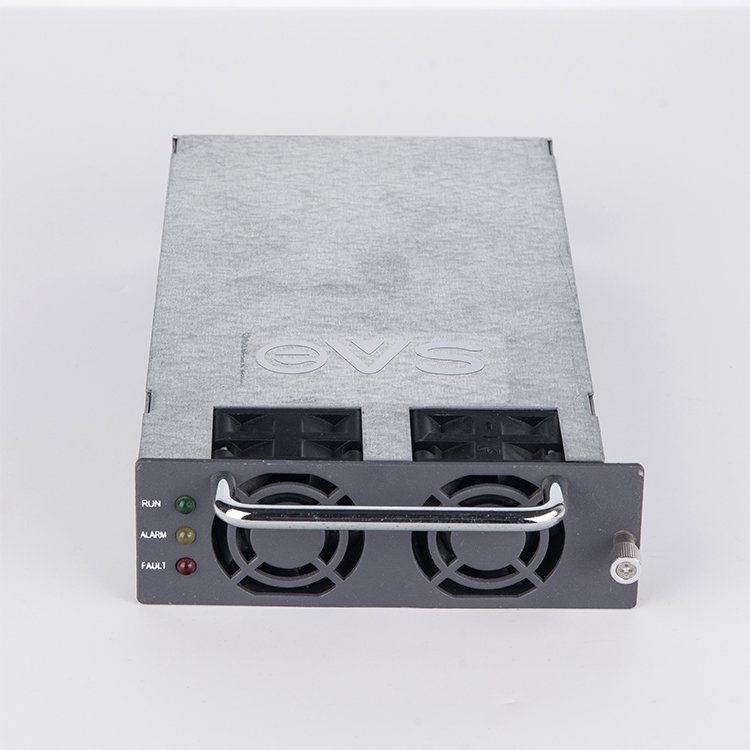

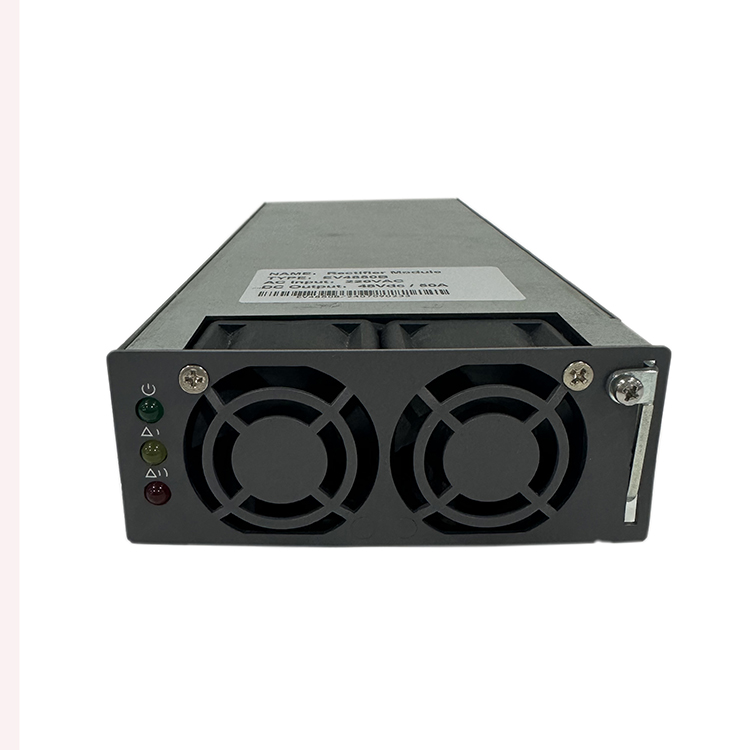

    10.Small size, height X*48V30A(50A) evspower rectifier module


    Power rectifier system application

    * Small scale program controlled exchanges

    * Access network

    * Transmission equipment

    * Mobile communication

    * Satellite communication ground station

    * Microwave communication



    rectifier system technical



    AC Input



    Input



    Single phase 220Vac .50hz



    Frequency



    50HZ,Range:45Hz~66Hz



    Voltage Range



    90V~290VAC



    DC output



    Rated current(A)



    60A/120A/150A/200A



    Rated power(W)



    3600W



    Rated voltage(V)



    220V



    Equ- charge (V)



    56.4V(42-58Vdc adjustable);



    Float voltage(V)



    53.5V(42-58Vdc adjustable);



    Output Accuracy(V)



    ≤1%



    Output ripple voltage



    ≤200mV<0-20mHZ>



    PF



    0.99@220VAC/20A



    Leakage current



    ≤1.5mA



    Indicator



    LCD display



    Input/output voltage,Frequency,output current,Environment,Rate



    Power status



    City power,Output,Under voltage,overload voltage



    Current Sharing



    ±5% from true average current between modules;



    Load regulation



    2%



    Line regulation



    1%



    Dimension



    19 inches
