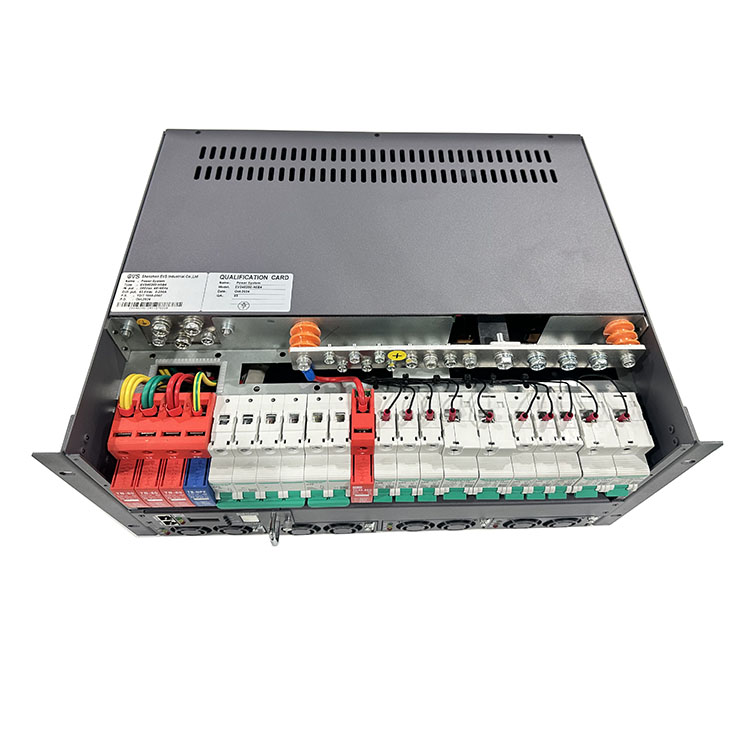

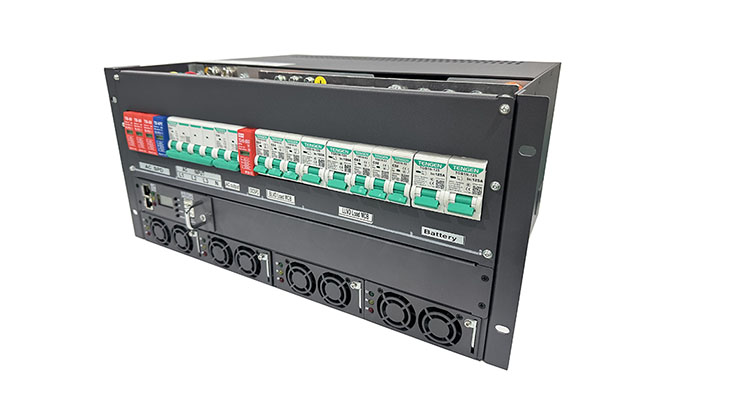

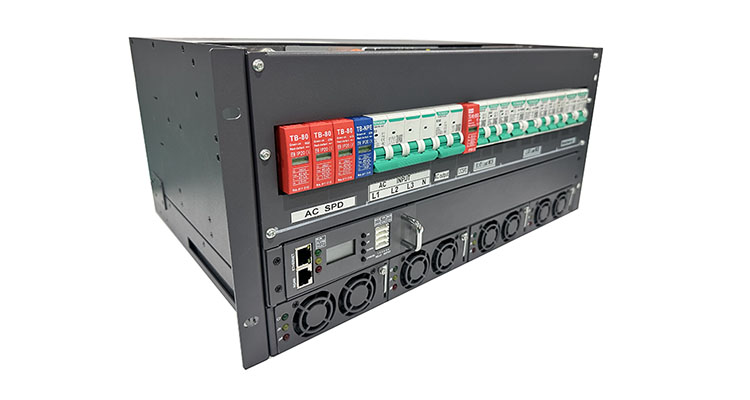

19 Inch Rack Mounted 220V AC 48V DC Converter Rectifier Module 100A 150A 200A Telecom Power Supplies 60Hz Output Din Rail

EVS48300-H5B6

minimum order:

1 piece

Quantity:

$680.00 - $720.00 / piece

Contact Now

add to cart

Input Voltage:220 V, 380 V
Output Current:50 A, 100 A, 150A, 200A
Output Voltage:48 V
Model Number:EVS48300-H5B6
Brand Name:EVS
Place of Origin:Guangdong, China
Application:Industry, Laboratory, Industrial Equipment, Machines, Battery Charging
Efficiency:95%
Output Frequency:50Hz/60Hz
Output Type:Single
Protection:Short Circuit Protection, Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection, Over Power Protection, Undervoltage Protection
Type:AC-DC, DC-DC, 220V AC to 48V DC Converter
Mount:Rectifier System
Logo:Customer
Rack Size:19 inch rack mounted
AC-DC Rectifier System:Supply DC Power for DC Load and Charging for Battey
Connection Mode:Parallel Switching Power Supply
Module:lost alarm
Rectifier:Hot Swap

Product Description

220V AC to 48V DC Converter Features with the following specifications:

1.rectifier system for wall adopts active power factor compensation technology, power factor up to 0.99.
2.AC input voltage of normal operating range as wide as 380V/220V.
3.rectifier system for wall adopts full bridge soft switching technology, efficiency can reach above 95%.
4.Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.
5.Switching Power Supply for System integration adopts no damage hot insert and pull technology, replacement time less than 1min.
6.Network design, providing a variety of communication interfaces (for example: RS485, dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.
7.Complete fault protection, fault alarm function.
8.Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.

220V AC to 48V DC Converter Main Features:

EVS Power Series is a reliable, efficient and inexpensive solution for all kind of AC to DC power supply applications.

Compact Rack Mount Size
Universal AC (Alternate Current) Input
Filtered IEC AC Inlet Connectors
EMI FCC Class B Clearance
Single and Multiple Output
Highly Efficient Design
5U Low Profile Height
NO Minimum Load Required
Low Voltage Power Supply Alarm
Data Line Alarm And ACO (Alarm Cut Off) System
Cost Effective and Reliable Power Supply

220V AC to 48V DC Converter
Optional	Rectificador	Module max	Distribution	Controlador	Remark
Configuration	50A	1-4 pcs	220V/380V AC input , Load output:50A-200A	Monitor	Specific index refer to module specification

Model	EVS48200-H5B4
Rated Output Current	200A
Rated Output Voltage	53.5Vdc (42-58 Vdc)
Output Power	12KW
AC Input
AC Input Voltage Range	380vac 3 phase; 220vac 1 ph tolerances: 85~300vac
AC Input Frequency	45Hz ~65Hz
AC input Power Factor	≥0.99
AC transfer Efficiency	≥95.5%
AC Input Lightening Protection	ClassC SPD
DC Output
Output Voltage Range	42~58 Vdc
Current Share	±5%
Load Regulation	≤0.5%
Voltage Regulation	≤0.1%
Environment
Operating Temperature	(-20 to 50°C) (Rectifier Temp Range: -45°C to 75°C)
Relative Humidity	5%~95% RH, No Condensation
Configuration

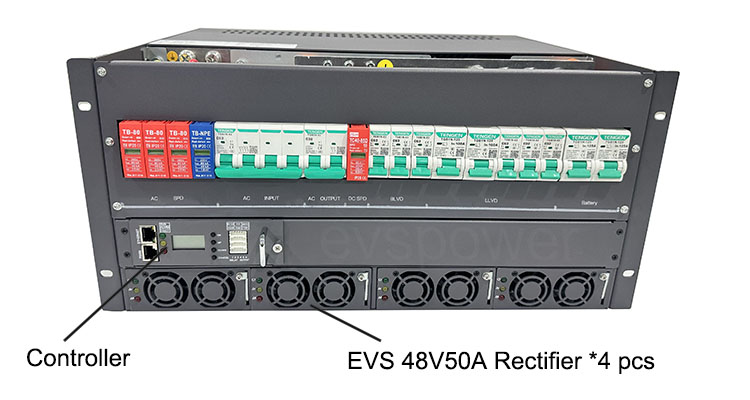

Slots for Rectifier Module	4 pcs
Rectifier Module	EV4850R*4
Controller	EVS-G*1
DC Distribution	customizable
Battery Breaker	2*125A/1P
Alarm Relay	6pcs
Others
Standard	UL60950/EN60950, EN55022, RoHS
Communication Port	SNMP, RS232/RS485, Dry contact
Subrack Dimension	(WDH) 482350222(5U)
Others	The LVD shall be connected between the battery/charger connection point and the load. The LVD shall disconnect the load from the battery and the rectifier if the battery voltage reached the predetermined end of discharge limit. The LVD shall automatically reconnect the load when the battery voltage recovers to an acceptable level. The LVD shall operate as follows: Low voltage disconnect: -43.2 VDC (default) Reconnect voltage: -46.0 VDC (default) Voltage drops shall be considered in setting the above parameters. The LVD contactor used shall have an indication that permits visual verification of the contact position whether open or closed.

Why choose us?

Shenzhen Evs Industrial Co., Ltd. offer you the best quality products and service. Win to win
business is our first principle.

Whom we are ?

Shenzhen Evs Industrial Co., Ltd. is a professional manufacturer which combine production
and trade. Now the company have two brand evs and huaqiang power. The products series
contain high ,middle and low level range products. The products is highly used for all brands of
Switching Power Supply,mobile phones , PC , DC ,TV PSP ,laptop and so on electronic products.

Are you a factory or trading company?

Yes, we are date cable manufacturer,supply OEM/ODM service.

How about your After sales-service?

1.Guarantee time: one year
2.Spare parts: 0.3% spare parts will be shipped with your order.
3.Return policy: we can exchange goods if quality problem.

Our Payment & Logistics?

1.Payment terms L/C,T/T,Western Union,MoneyGram,Paypa
2.Shipping terms: Ship,DHL, UPS, FEDEX, TNT, EMS
3.Sample order delivered within 24 hours , order lead time within 3 days

What can you get from us?

1.Excellent products (unique design, strict quality control )
2.Great service(OEM,ODM, after-sales services, fast delivery)
3.Professional business consultation.

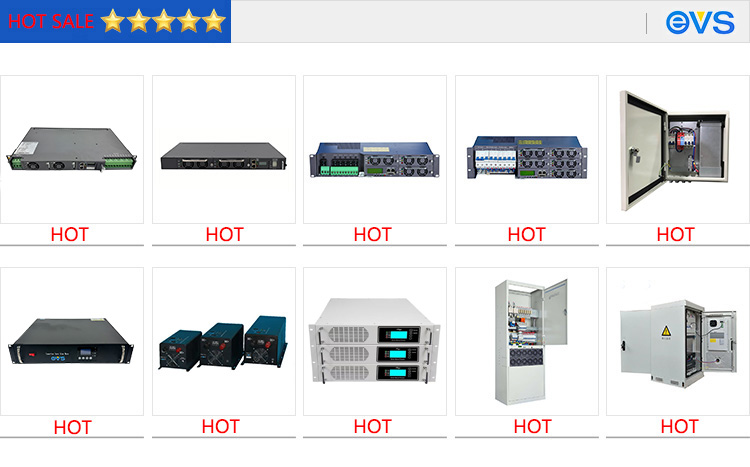

Recommend Products
