    All-In-One 48V 500W Power Supply Unit 50Hz Frequency 40A Output for Pico Macro Industrial Base Station Applications 380V Input

    EVS-48150
    minimum order:
    1 piece
    Quantity:
    $500.00 - $600.00 / piece
    Contact Now
    add to cart
    • Input Voltage:80-300v
    • Output Current:10-150
    • Output Voltage:48 V
    • Model Number:EVS-48150
    • Brand Name:OEM ODM
    • Place of Origin:Guangdong, China
    • Application:Industry
    • Efficiency:95%
    • Output Frequency:50/60Hz
    • Output Type:Single
    • Protection:Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection
    • Type:AC-DC, fiber optics sites electrical peripherals
    • Function:Telecom base stations
    • Condutor:Rectifier Module
    • Logo:Can be design according to customer
    • Colors:RAL7035 orRAL9004
    • Warranty:12 months

    Our products




    fiber optics sites electrical peripherals with Rectifier modules


    Features with the following specifications:


    1,Rectifier module adopts active power factor compensation technology, power factor up to 0.99.
    2,AC input voltage of normal operating range as wide as 90 ~ 290V.
    3,Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 95%.
    4,Perfect battery management: low voltage load disconnect (LVLD) and low voltage battery disconnect (LVBD) to achieve temperature compensation, automatic float control, automatic voltage regulator, battery capacity calculation, online battery test function.

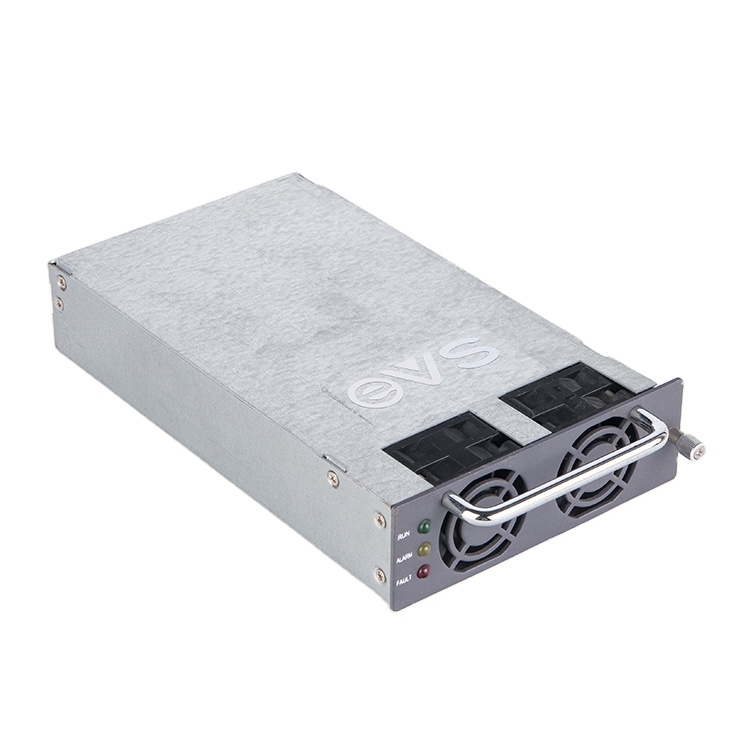

    5,Rectifier module adopts no damage hot insert and pull technology, replacement time less than 1min.
    6,Network design, providing a variety of communication interfaces (for example: RS485, dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.
    7,Complete fault protection, fault alarm function.
    8,Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.
    9,Ultra-low radiation. Adopt advanced electromagnetic compatibility design, the rectifier module can meet requirements for conducted and radiated interference of"the communication power equipment electromagnetic compatibility Limits and methods of measurement"( People's Republic of China telecommunications industry standard YD/T983).
    10,Safe and reliable. System design in full compliance with safety standards EN60950 and GB4943.

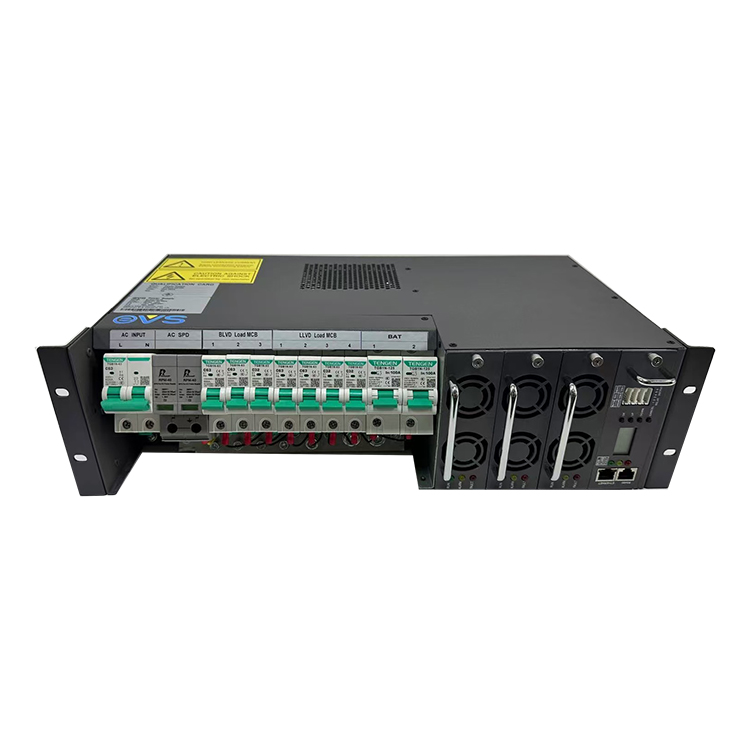

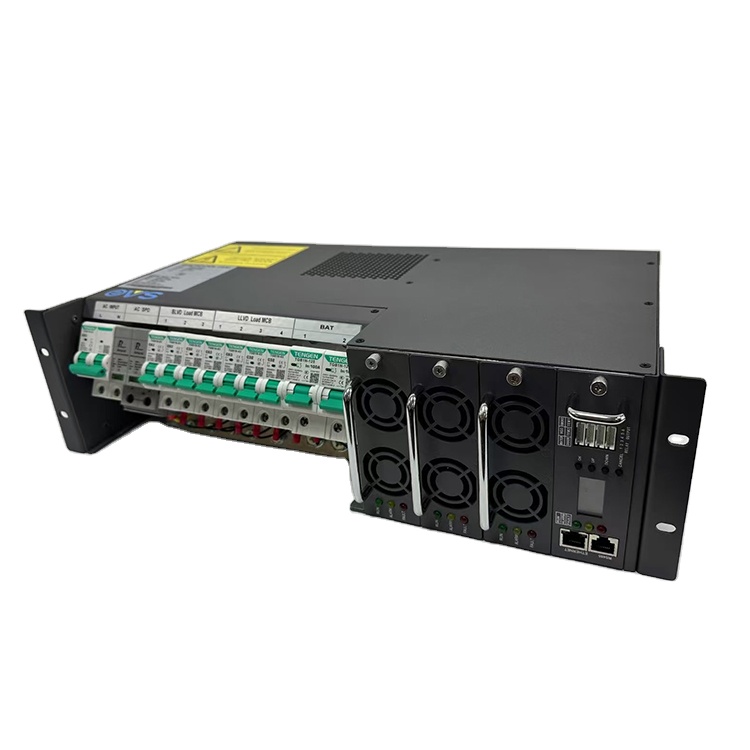

    Power System Configuration
    Optional
    Rectifier
    Module max
    Distribution
    Monitoring
    Remark
    Configuration
    30A
    1-5 pcs
    AC distribution: AC220V input,
    Load output:30A-150A
    Monitor



    Power system performance index input
    Parameter
    Min.
    Rated
    Max.
    Unit
    Note
    Rated working voltage range

    110/220

    Vac

    Input voltage range
    90
    220
    290
    Vac
    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC
    Input frequency
    43
    50
    67
    Hz

    Battery input
    40
    48
    60
    Vdc
    Battery pack’s positive and negative in parallel with DC output of rectifier module


    Power system performance index output
    Parameter
    Min.
    Rated
    Max.
    Unit
    Note
    Output voltage range
    42
    48
    58
    Vdc

    Output current range
    (max.current)
    0

    150
    A
    input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.
    Regulation accuracy


    ±1
    %

    Load regulation


    ±1
    %

    Source regulation


    ±1
    %

    Current sharing regulation


    ±5
    %

    Ripple ( peak – peak value)


    200
    mv
    Network 20MHz testing.
    Output efficiency
    91
    93
    ±1
    %
    220Vac Input
