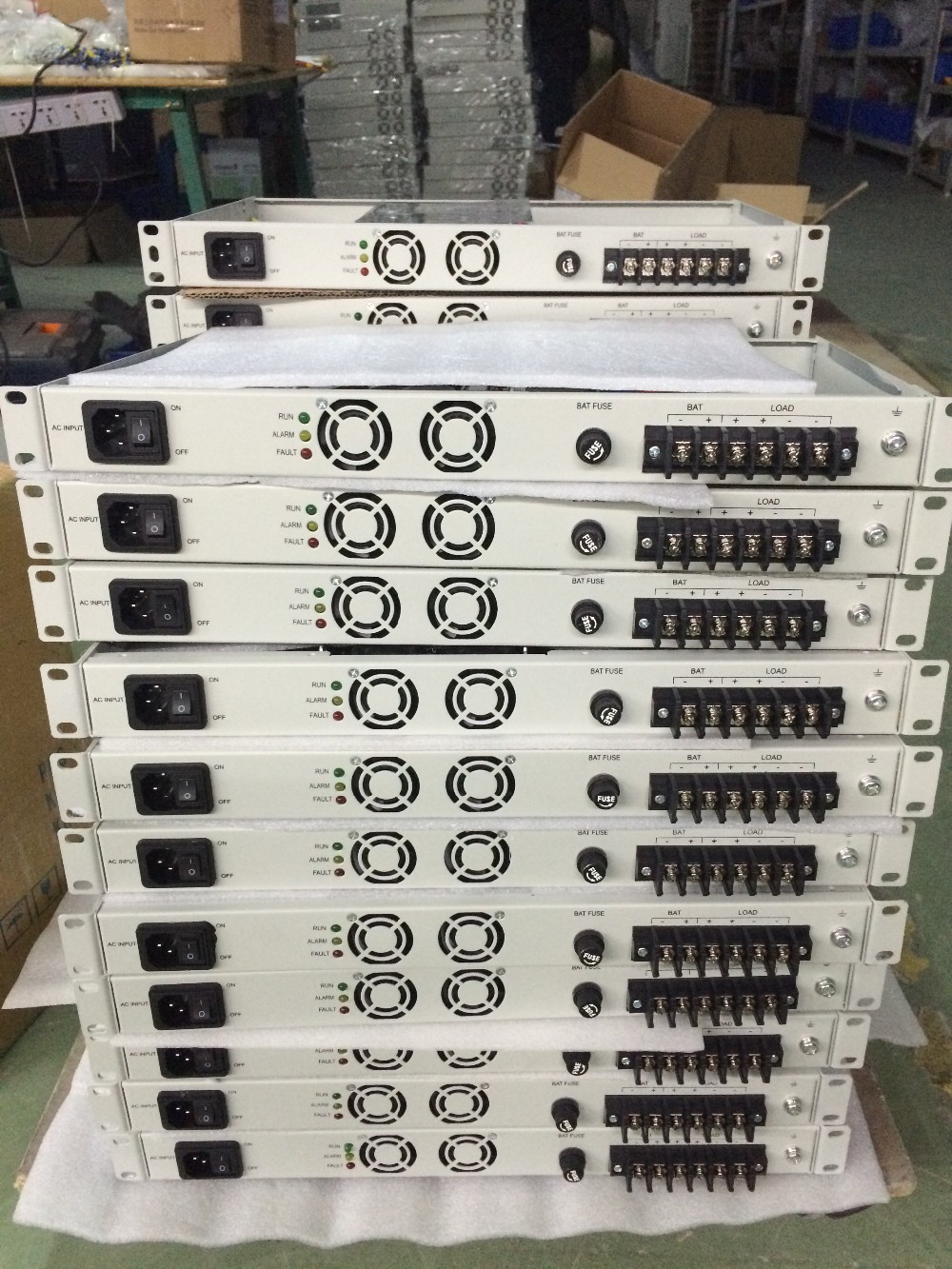

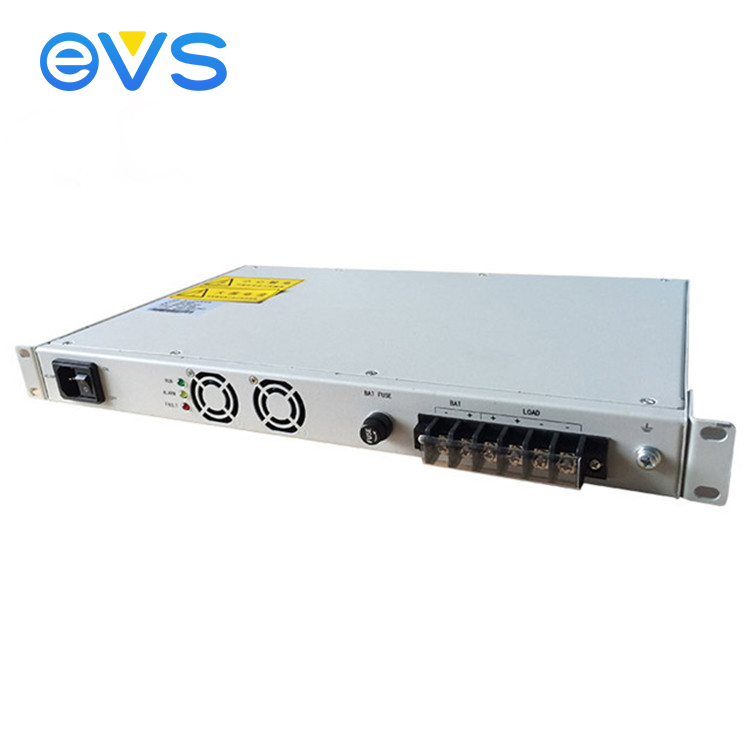

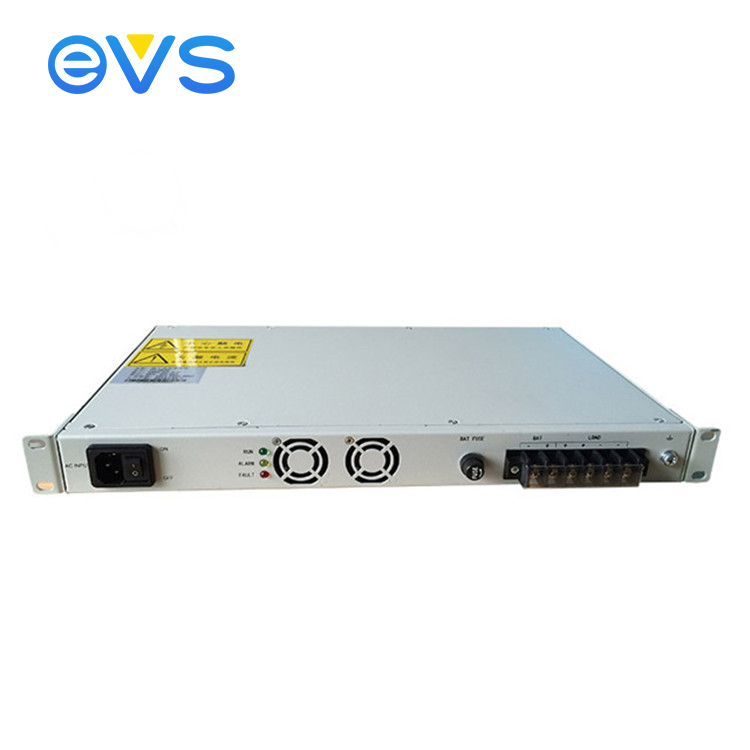

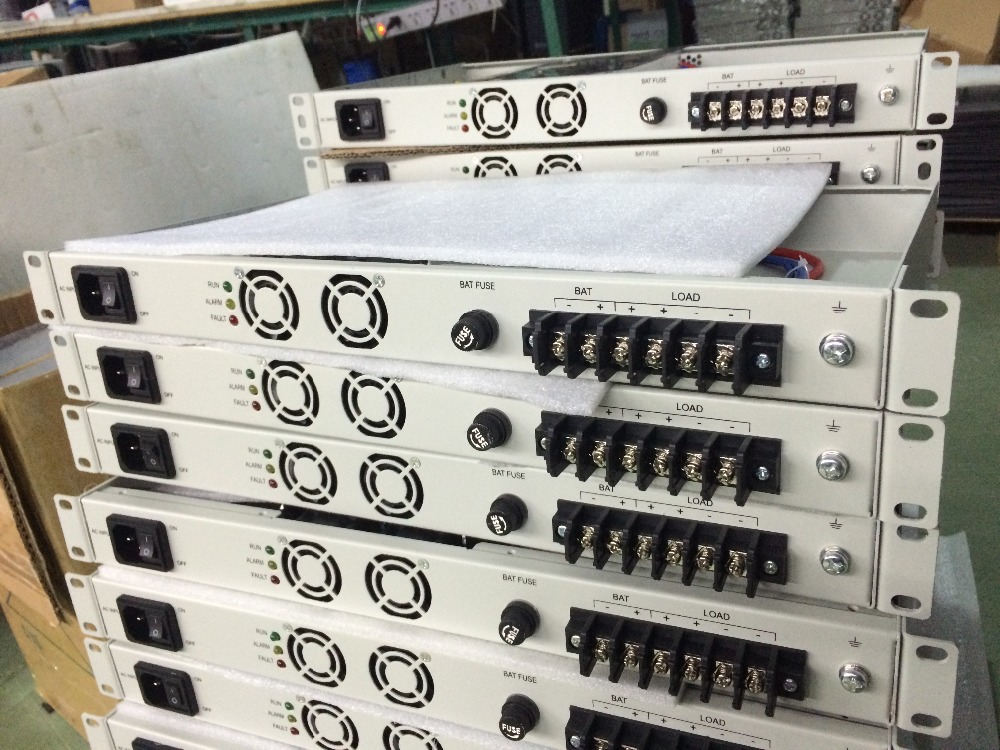

    Delta Telecom Switching Power Supply with Rectifier Module

    EVS1U-4830, rectifier module for telecom
    minimum order:
    1 piece
    Quantity:
    $185.00 - $200.00 / piece
    Contact Now
    add to cart
    • Application:Industry, for Telecom Equipment,Battery Charging
    • Efficiency:0.92
    • Protection:Over Temperature Protection, Overcurrent Protection, Overvoltage protection, Overloading Protection
    • Place of Origin:Guangdong, China, Shenzhen, China (Mainland)
    • Brand Name:EVS, EVS Industrial switching power supply
    • Model Number:EVS1U-4830, rectifier module for telecom
    • Output Type:Single Phase
    • Input Voltage:90-280VAC
    • Output Voltage:-53.5V
    • Output Frequency:50Hz/60Hz
    • Output Current:30A
    • type:AC-DC, DC-DC
    • Output Power:500W-1500W
    • Type:1500W Industrial switching power supply
    • Use in:exchange room, server room,base station,data communication







    Input



    Parameter



    Min.



           Rated



    Max.



    Unit



    Note



    Rated working voltage range





    110/220





    Vac





    Input voltage range



    90



    220



    290



    Vac



    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC



    Input frequency



    43



    50



    67



    Hz





    Battery input



    43.2



    53.5



    58



    Vdc



    Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)



    Output



    Parameter



    Min.



    Rated



    Max.



    Unit



    Note



    Output voltage range



    42



    53.5



    58



    Vdc





    Output current range



    (max.current)



    0





    30



    A



    Input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.



    Regulation accuracy







    ±1



    %





    Load regulation







    ±1



    %





    Source regulation







    ±1



    %





    Current sharing regulation







    ±5



    %





    Ripple ( peak – peak value)







    200



    mv



    Network 20MHztesting.



    Output efficiency



    91



    93





    %



    220Vac Input

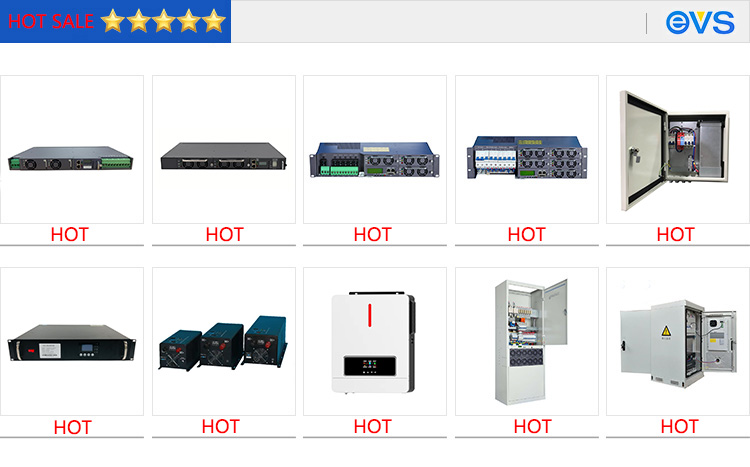

    hot sale
