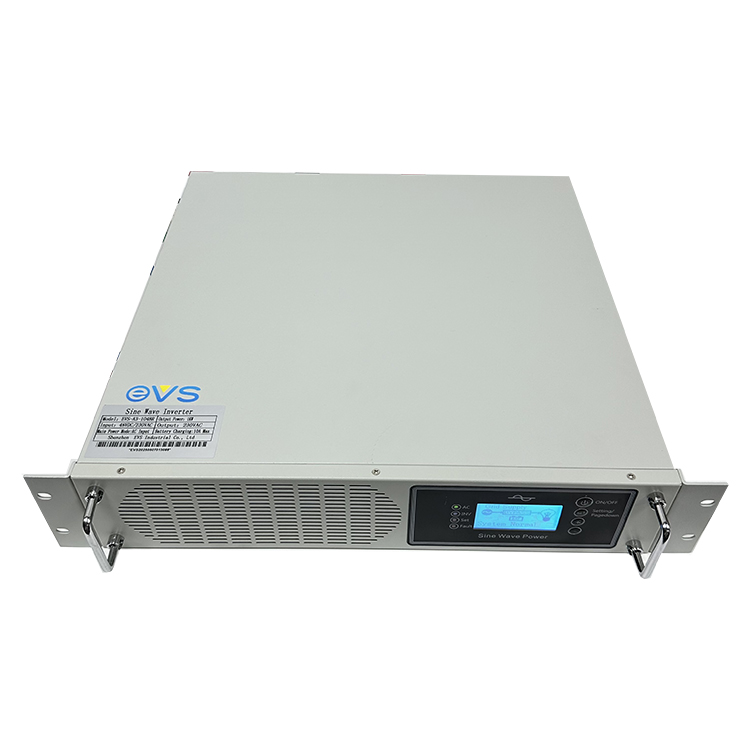

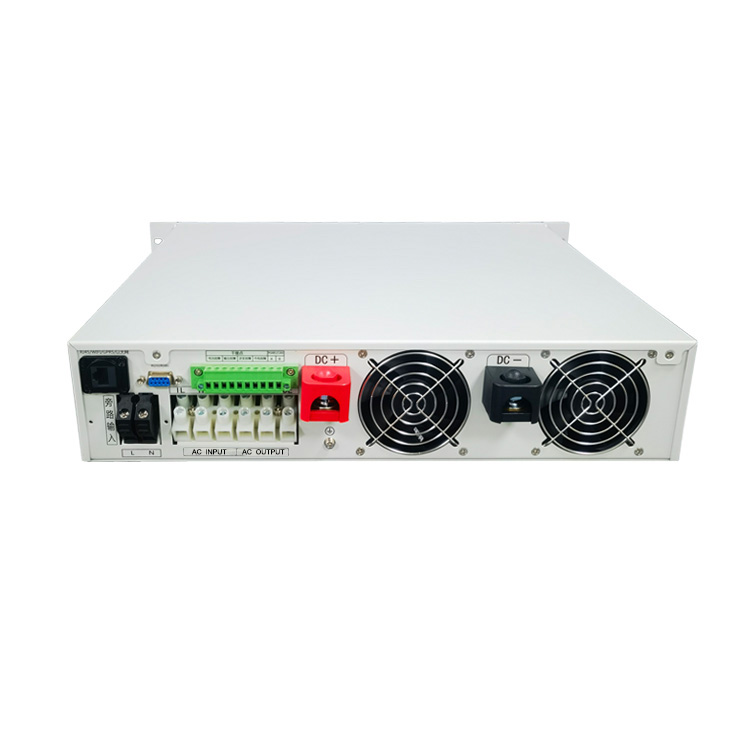

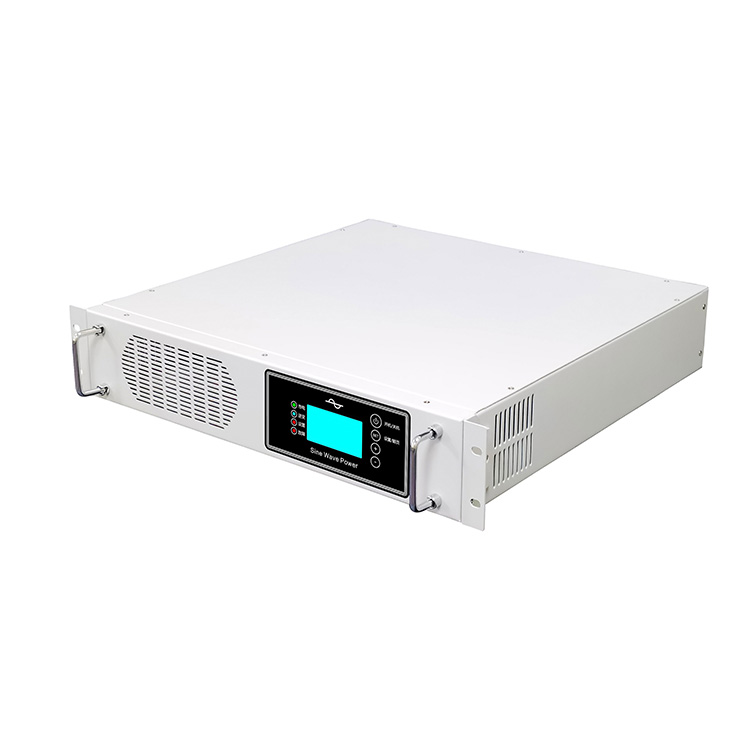

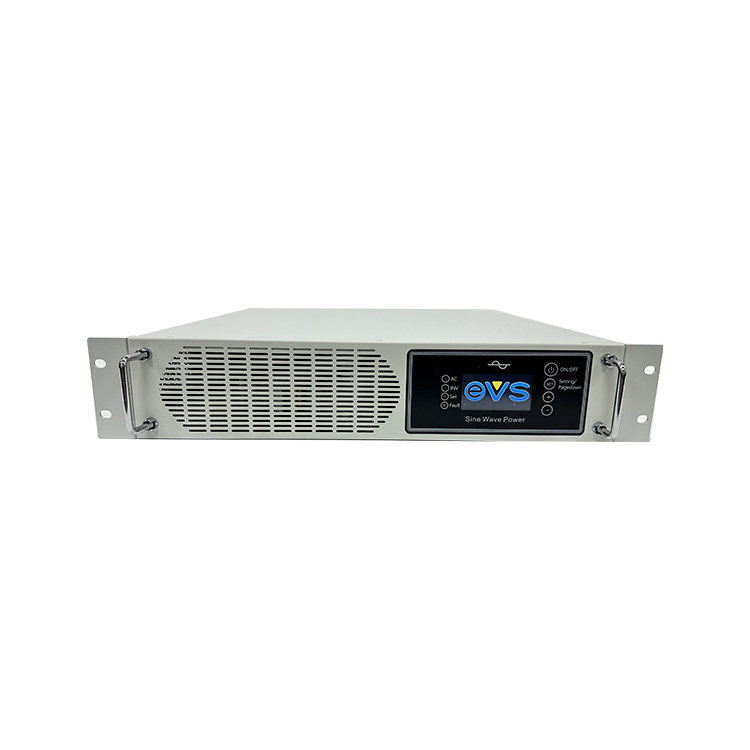

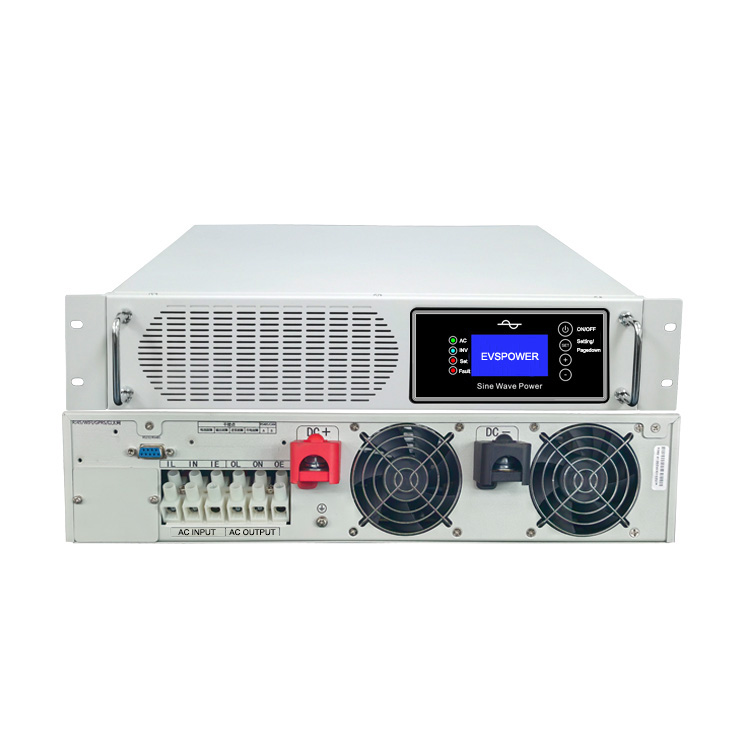

Pure Sine Wave Power Inverter 3000W DC AC 12V/24V/48V/60V/72V/110V/220V 100/110/220V 13A Current for Motor Home Single Power

EVS-A3-3048R

minimum order:

1 piece

Quantity:

$290.00 - $315.00 / piece

Contact Now

add to cart

Output Current:13 A
Output Frequency:50Hz/60Hz
Phase:SINGLE
Type:DC/AC Inverters
Model Number:EVS-A3-3048R
Brand Name:EVS
Place of Origin:Guangdong, China
Application:Industrial
Efficiency:0.95
Network:SDK
Output Type:SINGLE
Size:482*445*88mm
Weight:11kg

Product Description

Specification

EVSPOWER DC48V Series
rated power	1KW	2KW	3KW		4KW	5KW	6KW	8KW	10KW	12KW
Rated DC voltage	DC48V
Battery voltage range	DC40-64V			Low voltage warning		44V
				Low voltage power outage		42V(40-48V(ADJ)
				Low voltage recovery		54V
				High voltage power outage		63V(61-64V ADJ)
				High voltage recovery		62V
				Low voltage shutdown		38Vdc
DC priority type	Low voltage switching of battery to mains voltage point					44V(42-51V)
	Return to the battery supply voltage point after sufficient supply					52V(48-58V)

Communication input

Rated AC input voltage

AC220V

AC110V

Scope of communication input

170-280Vac(UPS)

90-280Vac(APL)

Voltage drop point due to under voltage of the municipal power supply

170Vac±5V (UPS)

90Vac±5V (APL)

Under voltage recovery point of municipal power supply

180Vac±5V (UPS)

100Vac±5V (APL)

Overvoltage and power failure voltage point of mains power

280Vac±5V

Overvoltage recovery voltage point of mains power

270Vac±5V

Communication input frequency

50HZ/60HZ(ADJ)

Frequency range

40-65HZ

Single mains power on function

yes

UPS conversion time

<5ms(UPS);<13ms(Electrical mode)

AC output

AC output voltage

220/230/240Vac±3% ADJ

Communication output frequency

50±1HZ/60±1HZ

Output waveform

Pure sine wave (full voltage range)

Waveform distortion rate

≤3%(Linear Load)

Inverter peak efficiency

95%

Dynamic response

(0~100%)≤5%

Power factor

>0.9

Peak power (surge capability)

Twice the rated power in 3 seconds

Idle power consumption (standby power consumption)

30W

power derating

No derating (output power will not decrease with the decrease of battery voltage)

work environment

Noise (1 meter)

≤40dB

Environmental temperature for use

-40℃~+50℃

Storage environment temperature

-40℃~+70℃

humidity

0~90%

Using altitude (m)

≤ 5000 (If it is higher than 1000, the usage will be reduced by 10% per liter starting from 1000)

Continuous running time

Can run continuously for a long time

Cooling method

Temperature controlled variable speed fan for heat dissipation

Mean time between failures

Not less than 100000 hours

Selling Point

1.Product Adaptability: The Pure Sine Wave Power Inverter 3000W DC AC 12/24/48V/60V/72V/110V/220V with a 50A Output Current is versatile and responsive to differing battery voltage requirements, from 12 to 72 volts, making it suitable for various motor home applications.

2.High Efficiency: This inverter boasts a high efficiency of 98%, ensuring that a significant portion of the power produced by the battery is utilized to power the connected appliances. Additionally, it generates less noise, operating at a volume of less than 60dB, adding to its appeal.

3.Customized Software Reengineering: The Pure Sine Wave Power Inverter supports software reengineering, allowing it to be customized to meet specific needs. This adaptability makes it particularly useful for industrial applications, such as pumps and air conditioners.

4.Advanced Communication Features: With a built-in Modbus/RS485/RS232 communication port, the inverter allows for seamless integration into various control systems and operating environments. This added flexibility is beneficial for monitoring and managing energy usage in home appliance, AC output, and industrial power applications.

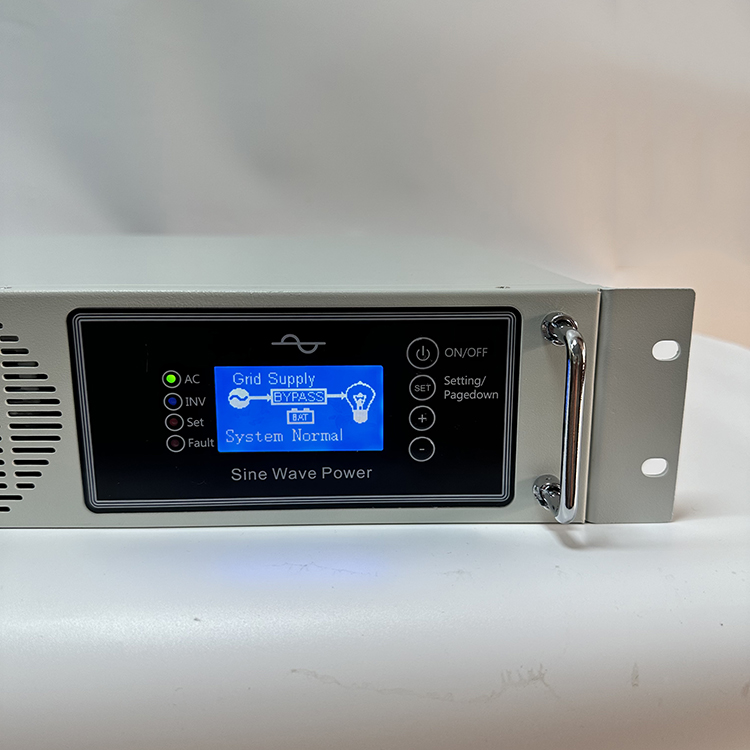

5.State-of-the-Art Technology: The Pure Sine Wave Power Inverter features an LED+LCD display, providing real-time feedback on operating parameters and system performance. This advanced technology not only safeguards the connected devices but also ensures efficient energy management. The inverter's unique pure sine wave output and single phase configuration make it a reliable choice for a variety of applications.
