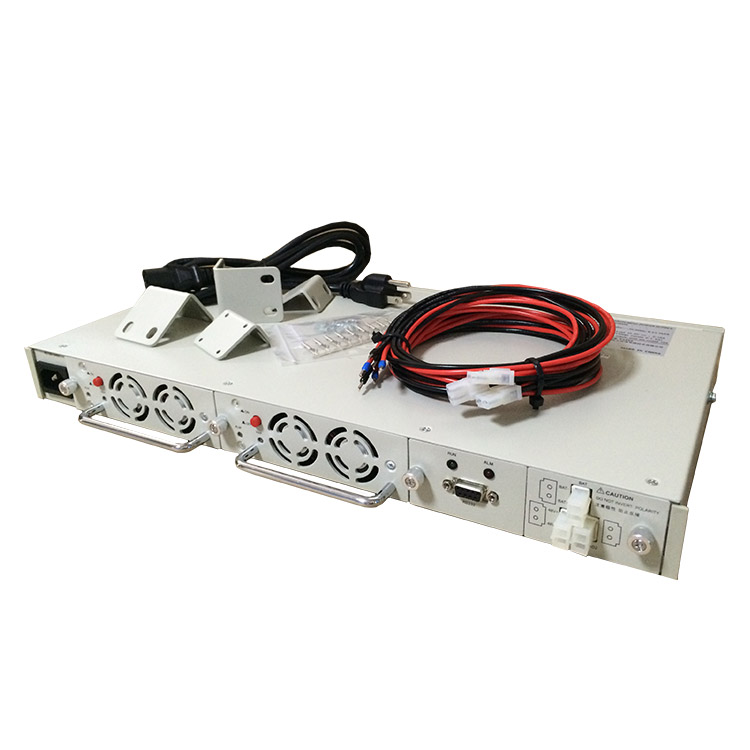

Single Output 1U Rack Power Supply 500W AC-DC 48VDC 10A with 230V Input for OLT Industry 48VDC Output

1U Rack ac to dc smps power supply 48V to OLT

Product Model: Original VAPEL GIE4805S/Q79
Type:	Embedded
Input Voltage:	85-264Vac
Output Voltage:	54.5Vdc
Output Current:	10A
Efficiency:	>80%
Power:	540W
size(mm): (long x wide x high)	482.6×262×43

• Wide input range


• Intelligent battery management


• Environmental parameter monitoring function


• Hot-swap


• RS232/RS485 interface


• Forced air cooling


• MTBF≥250,000 hours

ac to dc smps power supply Fertures
19"subrack mounting,
1U profile
Wide input voltage range
Active Power Factor Correction
Intelligent battery management function
Environmental parameter monitoring function
Three branches DC distribution output
Hot-swap (rectifier and monitor)
Lightning arrester protection inside
RS232 interface
Forced air-cooling

ac to dc smps power supply Electrical Specifications
Nput
nput voltage 150V~280VAC
Input current I 5A(Max.)
Frequency 47~63Hz
Efficiency ≥81%(Typical)
Power Factor ≥0.99(Typical)
Battery input one group

ac to dc smps power supply Output
Output power 600W(Max.)
Output voltage 52~-59VDC
Output current up to 10A
DC distribution branch
Branch 1 15A (Fuse)
Branch 2 15A (Fuse)
Battery 15A (Fuse)
Peak-peak noise ≤200mV(BW.20MHz)
Total regulation ≤+5%(50%-100%Load)
Load sharing ≤+1%Vout

ac to dc smps power supply Environmenttal
Operating temperature -5~+50C
Storage temperature -40~+70C
Relative humidity 90%
Air pressure 86~106KPa
MTBF 150KHrs

ac to dc smps power supply Protection

Overvoltage protection

Undervoltage protection

Output current limiting

Output short circuit protection

Overtemperature protection

Product Certification

UL,CE,TUV,CCC
