    High Demand 48V 60A Single Output AC to DC Power Supply for Industrial Use with 50Hz Frequency

    EVS4860-H1C2
    minimum order:
    1 piece
    Quantity:
    $305.00 - $335.00 / piece
    Contact Now
    add to cart
    • Input Voltage:80-300v
    • Output Current:60A
    • Output Voltage:-48v
    • Model Number:EVS4860-H1A2
    • Brand Name:OEM
    • Place of Origin:Guangdong, China
    • Application:Industry, Industrial Equipment, Led Lighting, Smart Home, Laboratory
    • Efficiency:95%
    • Output Type:Single
    • Protection:Overcurrent Protection, Overvoltage Protection, Over Temperature Protection, Overloading Protection, Over Power Protection, Undervoltage Protection
    • Type:DC-DC, AC-DC, Telecom rectifier for ac to dc power supply
    • Function:ac to dc power supply
    • Compatible Brand:Emerson, Huawei, ZTE,vapel, Eltek
    • Logo:Customer
    • Condutor:Rectifier Module

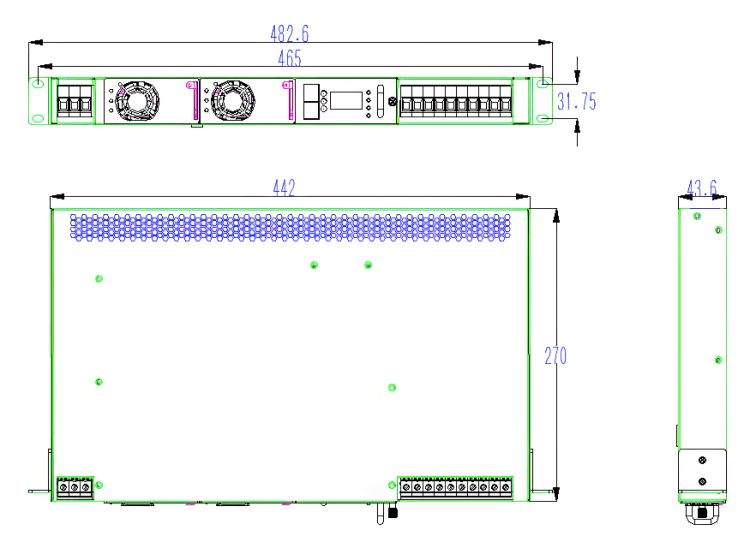

    • Size:19 Inch 2U Rack Mount
    • Rectifier:Hot Swap

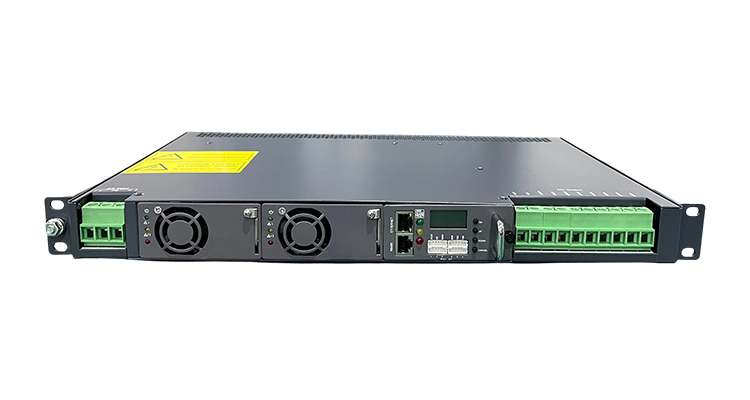

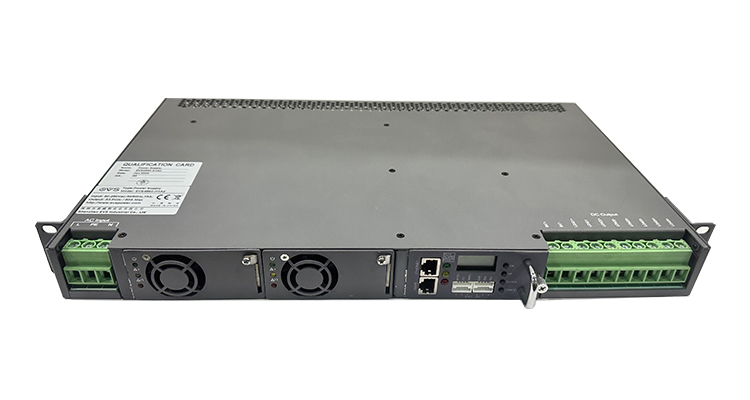

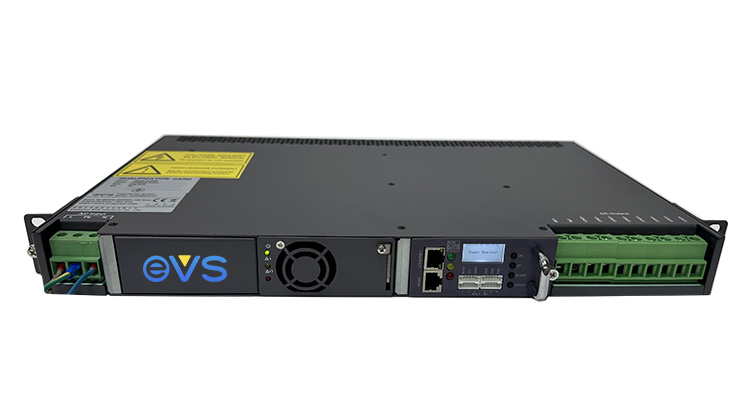

    Telecom DC Power Supply System - 1U with two rectifier modules 48V/3KW/60A

    Ac to dc power supply features with the following specifications:

    1,ac to dc power supply adopts active power factor compensation technology, power factor up to 0.99.
    2,input voltage of normal operating range as wide as 80 ~ 300Vac/100-400Vdc.
    3,Rectifier modules adopts full bridge soft switching technology, efficiency can reach above 95%.
    4,Switching Power Supply for System integration adopts no damage hot insert and pull technology, replacement time less than 1min.
    5,Network design, providing a variety of communication interfaces (for example: RS485, dry contact), flexible networking can achieve local and remote monitoring, unattended. Perfect AC and DC side lightning protection design used in multi thunderstorm area.
    6,Complete fault protection, fault alarm function.
    7,Comprehensive operation and maintenance, and can be mounted against the wall, saving space effectively.


    ac to dc power supply integration

    Optional

    Rectifier

    Module number

    Distribution

    Monitor

    Remark

    Configuration

    30A


    1-2PCS

    AC distribution: AC220V input,
    Load output:30A-60A
    		SNMP
    Specific index refer to module specification


    ac to dc power supply index input

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Rated working voltage range

    110/220

    Vac

    Input voltage range

    90

    220

    290

    Vac

    Three-phase five-wire input phase to phase 380V / relative zero line 220VAC

    Input frequency

    43

    50

    67

    Hz

    Battery input

    40

    48

    60

    Vdc

    Battery pack’s positive and negative in parallel with DC output of rectifier module (polarity consistent)


    ac to dc power supply index output

    Parameter

    Min.

    Rated

    Max.

    Unit

    Note

    Output voltage range

    42

    48

    58

    Vdc

    Output current range
    (max.current)

    0

    60

    A

    input 170 ~ 285VAC, when the input voltage is below 170VAC, output at derating manner.

    Regulation accuracy

    ±1

    %

    Load regulation

    ±1

    %

    Source regulation

    ±1

    %

    Current sharing regulation

    ±5

    %

    Ripple ( peak – peak value)

    200

    mv

    Network 20MHz testing.

    Output efficiency

    91

    95

    ±1

    %

    220Vac Input
