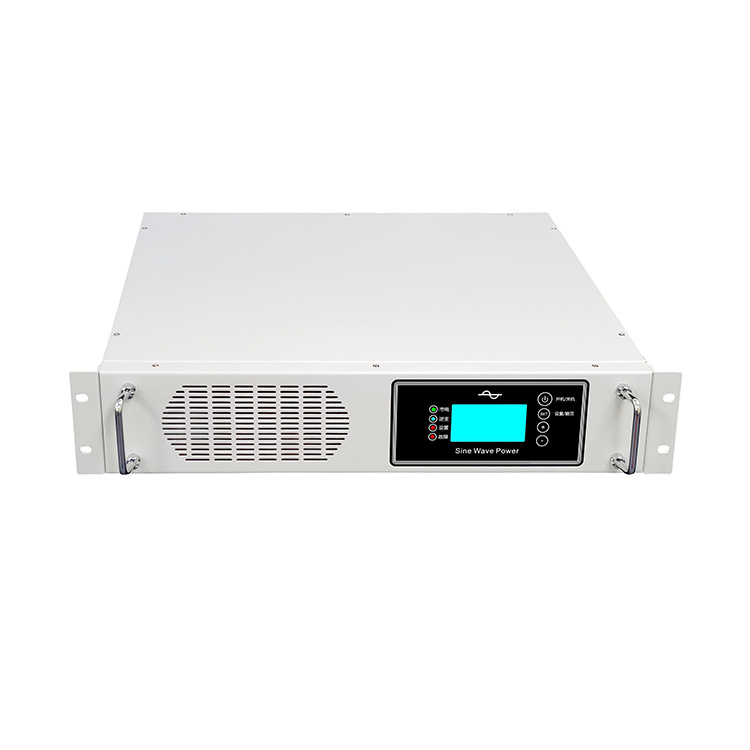

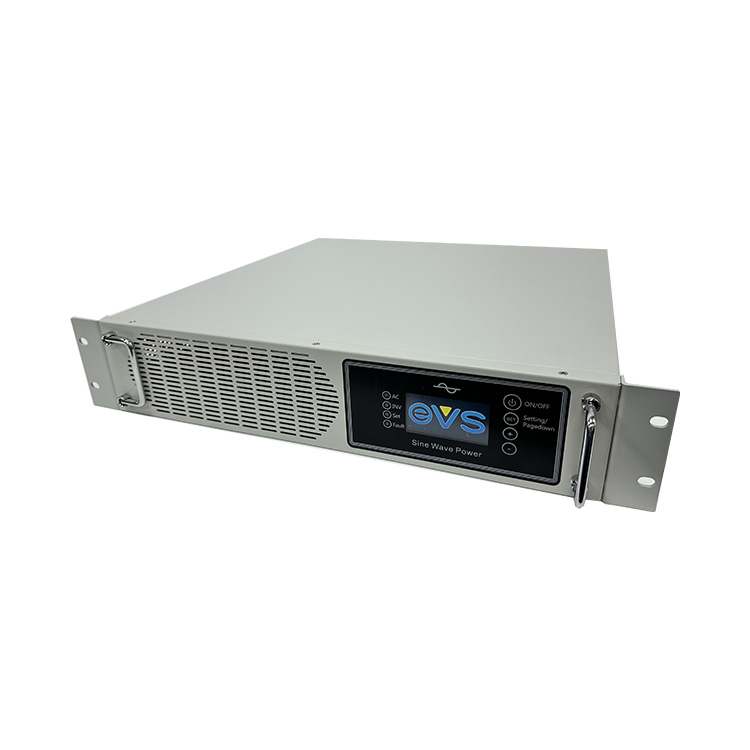

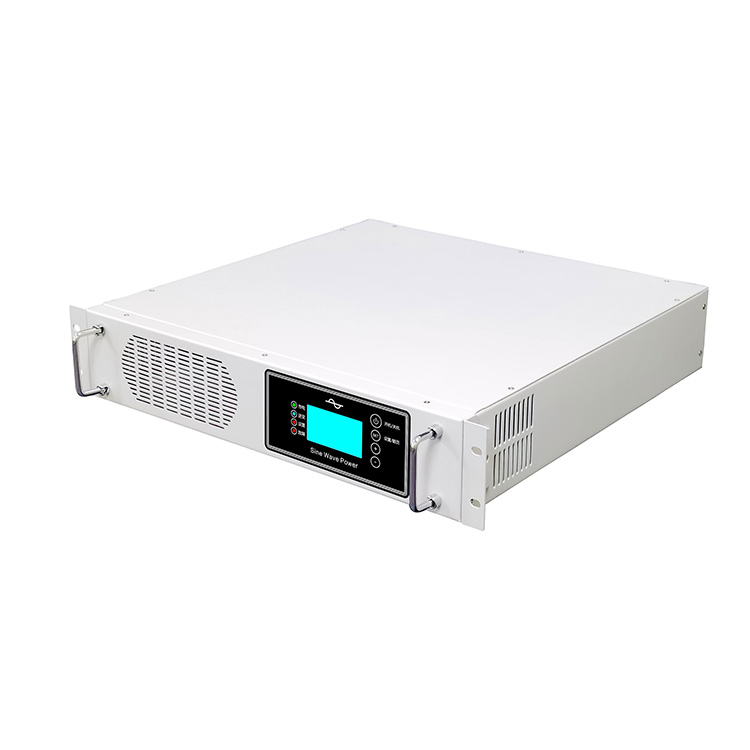

High Efficiency 5KW Single Phase Inverter 220VDC 220VAC Pure Sine Wave Rack Mount for Home Telecom Industrial Use 5000W Rated
- Output Current:22A
- Output Frequency:50Hz/60Hz
- Phase:Single Phase
- Type:DC/AC Inverters
- Model Number:EVS-A3-50220R
- Brand Name:OEM
- Place of Origin:Guangdong, China
- Application:Industrial
- Efficiency:0.94
- Network:SDK
- Output Type:Single

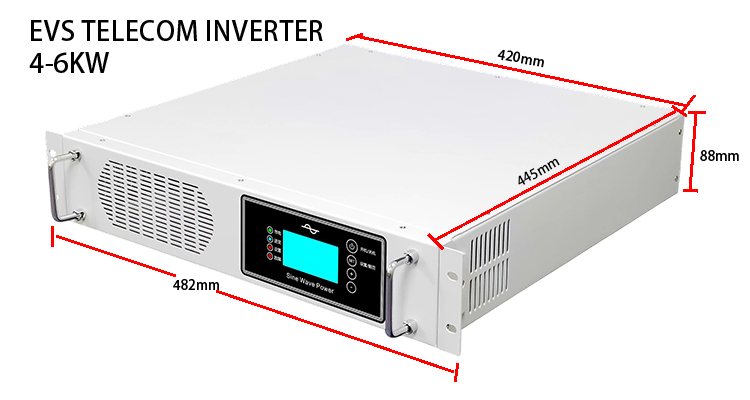

- Size:482*445*88mm
- Weight:13KG
- Inverter type:DC AC Inverters
- Warranty:12 Months
- Certificate:EMC/LVD
- Power factor:0.99
- Out put wave type:sine wave

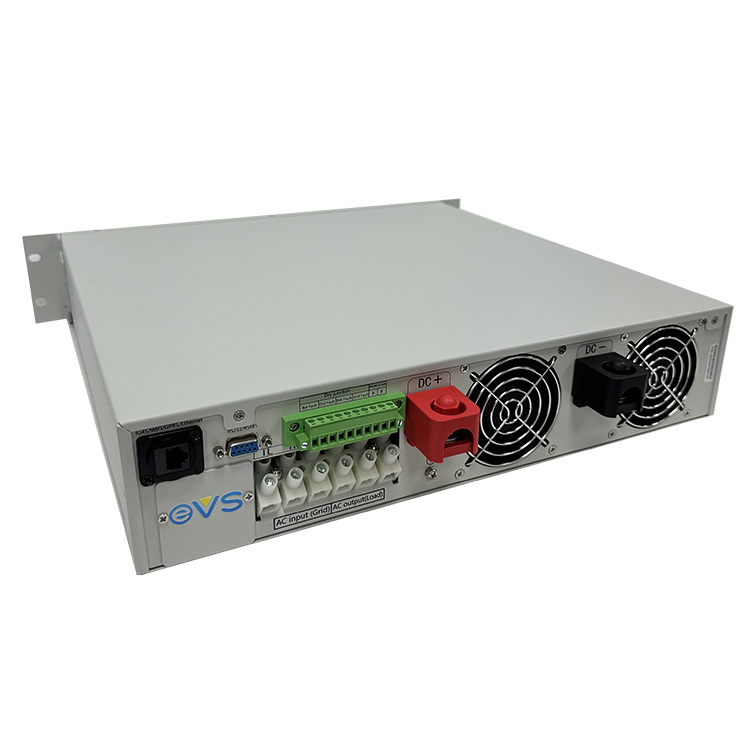

- Communication port:RS232 RS485 Modbus
- Display:LED+LCD
- Battery type:220VDC
- Protection:anti-short, overload, high/low input voltage
- Bypass and Battery transfer:<5ms
| EVSPOWER DC220V Series | ||||||||||
| Rated power | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW | 8KW | 10KW | 12KW | |
| Rated DC voltage | DC216V | |||||||||
| Battery voltage range | DC180-288V | Low voltage warning | 198V | |||||||
| Low voltage power outage | 189V(180-216V(ADJ) | |||||||||
| Low voltage recovery | 243V | |||||||||
| High voltage power outage | 283.5V(274.5-288V ADJ) | |||||||||
| High voltage recovery | 279V | |||||||||
| Low voltage shutdown | 171Vdc | |||||||||
| DC priority type | Low voltage switching of battery to mains voltage point | 198V(189-229.5V) | ||||||||
| Return to the battery supply voltage point after sufficient supply | 234V(216-261V) | |||||||||
| Communication input | Rated AC input voltage | AC220V | AC110V | ||||||||||
| Scope of communication input | 170-280Vac(UPS) 90-280Vac(APL) | ||||||||||||
| Voltage drop point due to under voltage of the municipal power supply | 170Vac±5V (UPS) 90Vac±5V (APL) | ||||||||||||
| Under voltage recovery point of municipal power supply | 180Vac±5V (UPS) 100Vac±5V (APL) | ||||||||||||
| Overvoltage and power failure voltage point of mains power | 280Vac±5V | ||||||||||||
| Overvoltage recovery voltage point of mains power | 270Vac±5V | ||||||||||||
| Communication input frequency | 50HZ/60HZ(ADJ) | ||||||||||||
| Frequency range | 40-65HZ | ||||||||||||
| Single mains power on function | yes | ||||||||||||
| UPS conversion time | <5ms(UPS);<13ms(Electrical mode) | ||||||||||||
| AC output | AC output voltage | 220/230/240Vac±3% ADJ | |||||||||||
| Communication output frequency | 50±1HZ/60±1HZ | ||||||||||||
| Output waveform | Pure sine wave (full voltage range) | ||||||||||||
| Waveform distortion rate | ≤3%(Linear Load) | ||||||||||||
| Inverter peak efficiency | 95% | ||||||||||||
| Dynamic response | (0~100%)≤5% | ||||||||||||
| Power factor | >0.9 | ||||||||||||
| Peak power (surge capability) | Twice the rated power in 3 seconds | ||||||||||||
| Idle power consumption (standby power consumption) | 30W | ||||||||||||
| power derating | No derating (output power will not decrease with the decrease of battery voltage) | ||||||||||||
| work environment | Noise (1 meter) | ≤40dB | |||||||||||
| Environmental temperature for use | -40℃~+50℃ | ||||||||||||
| Storage environment temperature | -40℃~+70℃ | ||||||||||||
| humidity | 0~90% | ||||||||||||
| Using altitude (m) | ≤ 5000 (If it is higher than 1000, the usage will be reduced by 10% per liter starting from 1000) | ||||||||||||
| Continuous running time | Can run continuously for a long time | ||||||||||||
| Cooling method | Temperature controlled variable speed fan for heat dissipation | ||||||||||||
| Mean time between failures | Not less than 100000 hours | ||||||||||||
1.High Energy Utilization System: The DC/AC inverter features an efficiency of 0.93, ensuring the optimal use of input power to generate output power, making it highly efficient and cost-effective.
2.Customizable LCD/LED Display: The versatile and user-friendly 48Vdc/220Vac 50Hz 1kVA inverter is equipped with an LCD/LED display, which provides real-time information such as output voltage, current, and frequency, allowing users to monitor and adjust accordingly.
3.Single Phase, 50Hz/60Hz Output Frequency: Suitable for a wide range of applications, the inverter operates on a single phase, offering output frequency options of 50Hz and 60Hz, catering to various power demands and regions.
4.48V Battery Compatibility: Designed to work with 48v batteries, the inverter is compatible with various types of 48v battery systems, making it a versatile choice for various industrial settings.
5.Noise Level Control: With a noise level of <60dB, the inverter operates quietly, ensuring minimal disturbance during operation, making it ideal for use in quiet environments or residential spaces where noise levels need to be maintained.
At EVS, clients' satisfaction is our fundamental principle, with product quality as the foundation of our growth and cost-effectiveness as our competitive edge. We have consistently maintained a strong reputation for trustworthiness and efficient service. This has earned us long-lasting partnerships with both domestic and international clients, including Europe, North and South America, Australia, the Middle East, Southeast Asia, and other regions.
Our commitment to fostering honest relationships enables us to share our expertise, technology, and experiences with our partners for a mutually beneficial and prosperous future. We are dedicated to consistently delivering high-quality products, top-notch services, and competitive prices to our current and prospective clients.
Given the rapid pace of the modern economy, we eagerly anticipate the opportunity to collaborate with you in the near future. Together, let's shape a promising new era for the electronic world. To initiate this partnership
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Mid East(15.00%),Eastern Asia(15.00%),Western Europe(13.00%),Africa(10.00%),Southeast Asia(10.00%),South America(8.00%),Eastern Europe(6.00%),Central America(5.00%),Northern Europe(5.00%),North America(5.00%),Oceania(3.00%),South Asia(2.00%),Southern Europe(2.00%),Domestic Market(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
power supply,power inverter,dc converter,rectifier module power,Battery power charger
4. why should you buy from us not from other suppliers?
EVS is a leading manufacturer of Telecom power supply, Electric Power supply, DC DC converter, Integrated Power Cabinet , Parallel inverter power system and other OEM/ODM electronics products according to customer's request.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken: English,Chinese,Japanese,German
