Pure Sine Wave 48V to 220/380V 230/400V 240/415V 3-Phase Inverter Charger 15KW 18KW 48v 380v Output Current 50A

Main characteristics of sine wave inverter power supply

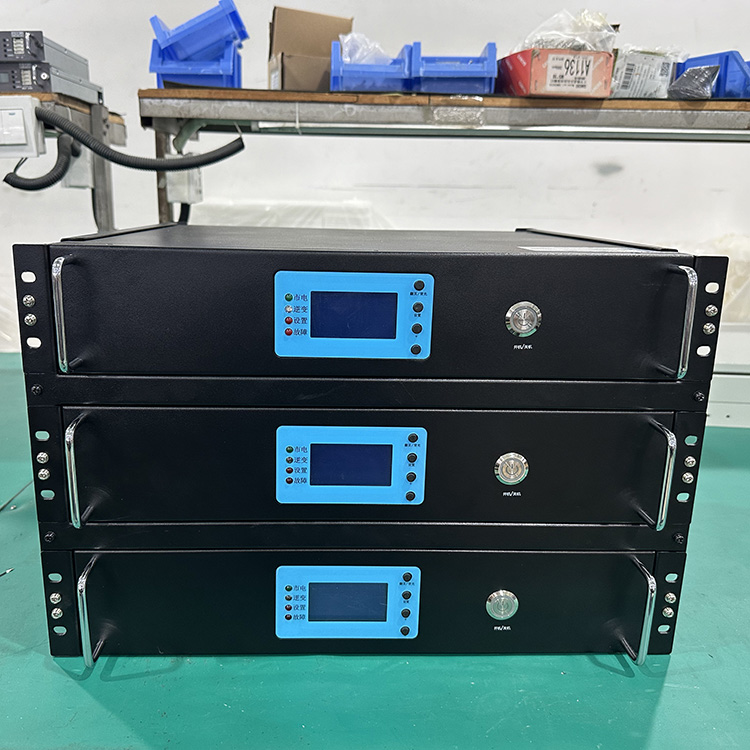

1. Embedded installation design, supporting the national standard 19 inch rack mounted installation method and the mobile portable box installation method;

2. Adopting CPU control, the circuit is simple and reliable; Intelligent power on/off, high degree of automation, easy operation;

3. Adopting PWM pulse width modulation technology, the output is a pure sine wave with stable frequency and voltage, filtered out noise, and low distortion;

4. The interface is friendly and adopts LCD display: the working status, mains voltage, output voltage, battery voltage, frequency, load power, and other information are clear and understandable; And it has functions such as sound and light fault alarm and fault indication.

5. Divided into main power supply type, battery main supply type, and pure reverse type:

A) Main supply type of mains power: When there is mains power, it is at the output of mains power, and automatically switches to inverter output when there is a fault in mains power input;

B) Battery main supply type: When the battery is normal, it is in inverter output, and when the DC input fails, it automatically switches to mains output;

C) Pure inverter variant: not connected to AC mains power, pure inverter operation, supports long-term on load inverter operation;

6. It is allowed to cut off the DC and automatically switch to the mains bypass when the device is turned on, without affecting the power supply of the load, making it convenient to maintain and replace the battery;

7. If the battery voltage is too high or too low, the inverter power supply will turn off the output. If the battery voltage returns to normal, the power supply will automatically resume output;

8. Support communication function (RS485 communication interface or customized other interfaces):

RS485: Standard Modbus communication protocol, RS485 communication interface, RJ45 crystal port with 1 pin 485A and 2 pins 485B from the left

9. Supports no DC power on function and can operate in a state of only mains power. This feature allows the inverter power supply to be put into use first, and then the battery can be installed. (Machines set to parallel mode must be powered on with DC power)

10. The container shell of the mechanical and electrical unit is made of metal material and meets the anti vibration and service life requirements of the inverter power supply when moving in various environments;

DC input

Rated input voltage (Vdc): 48V

Rated input current (A): 100

Allowable range of input DC voltage: 42V-61V (customizable)

Alarm voltage low: 43.5V

Protection voltage: Low voltage: 42V//High voltage: 61V

Backflow noise current: ≤ 10%

Municipal power input

Allowable bypass voltage (Vac): 170-280 (± 1%)

Rated input current (A): 38 (charging+full load state)

Charging current (A): Factory default 30A (can be set to 2/10/20/30/40/50/60A)

Bypass conversion time (ms): Single machine mode ≤ 8MS (parallel mode ≤ 18MS)

Communication output:

Rated capacity (VA): 6000VA

Rated output power (W): 5400W

Rated output voltage and frequency: 225Vac, 50HZ

Rated output current (A): 18.2

Output voltage accuracy (V): 225 ± 2%

Otput frequency accuracy (Hz): 50 ± 1%

Waveform distortion rate (THD): ≤ 3% (linear load)

Dynamic response time: 5% (load 0 ← → 100%)

Power factor (PF): 0.9

Overload capacity: (1) 115% 10 seconds. The inverter power supply will turn off the output for 25 seconds and then resume output. If the overload has been cancelled, it will resume normal output. If it has not been cancelled, it will cycle in this way

(2) 140% output shutdown at 0 seconds, inverter shutdown after 30 seconds, need to cancel overload and restart

Inverter efficiency: ≥ 93% (50% resistive load) or ≥ 89% (100% resistive load)

No load loss: < 58W

Output waveform: Standard sine wave

Working environment insulation strength (input and output): 1500Vac, no breakdown for 1 minute

Noise (1 meter): ≤ 40dB

Operating environment temperature: -25 ℃~+50 ℃

Humidity: 0~90%, no condensation

Usage altitude (m): ≤ 1000 or downgraded for use

Protection function:

Input undervoltage and input overvoltage protection; Output overload, output short circuit protection, over temperature protection, fan fault protection, lightning protection module

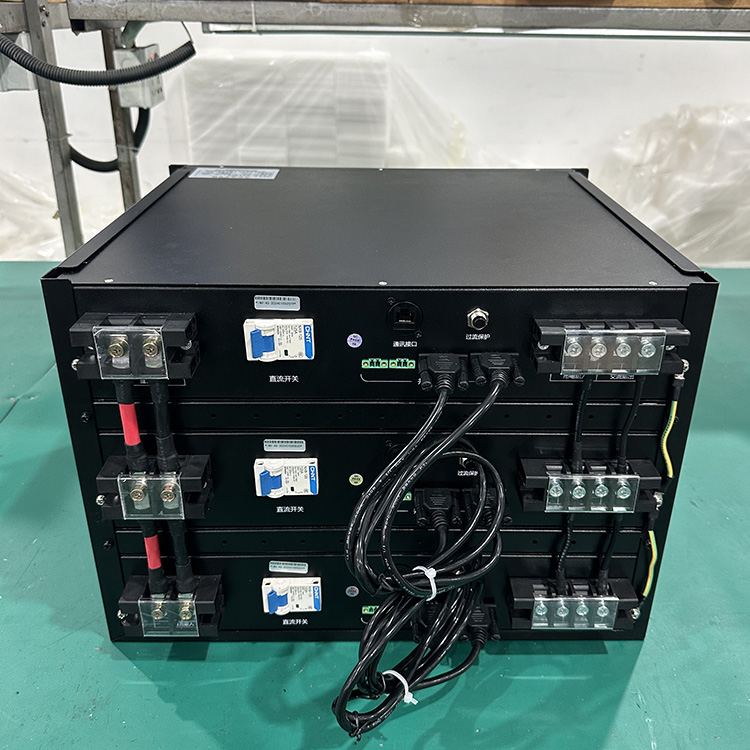

Parallel operation instructions: Single phase parallel operation (up to 6 units can be connected in parallel)/Three phase parallel operation (up to 6 units can be connected in parallel per phase)

Single phase parallel operation, if one of the machines fails, continue working as long as it is not overloaded

Three three-phase parallel machines, one of which is faulty, missing phase, and not working

Three phase multiple parallel machines, one of which is faulty, without missing phase or overload, continue to work

Display screen setting instructions: Can be set: Battery low voltage protection, 42-48V can be set;

Can be set: frequency, 50HZ/60HZ optional;

Adjustable: Charging current, 2-60A adjustable;

Adjustable: Uniform charging voltage, 48-58.4V
