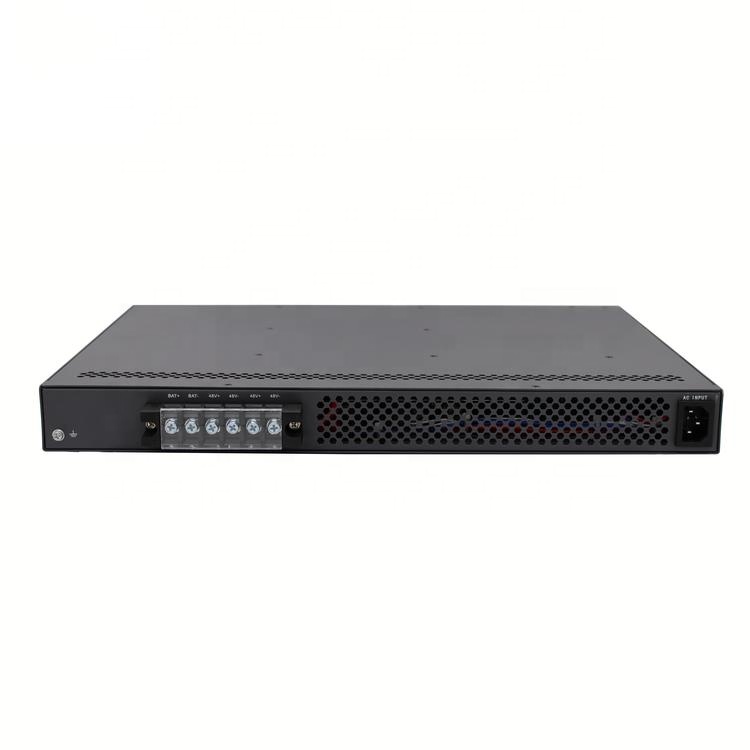

    Stock R4830 Rectifier Digital Power Supply Module 48V 3000W Telecom Power Supply ETP-4860 Telecom Power Rectifier Industrial

    EVS4860-H1B2
    minimum order:
    1 piece
    Quantity:
    $330.00 - $350.00 / piece
    Contact Now
    add to cart
    • Input Voltage:80-300V
    • Output Current:Other
    • Output Voltage:48 V
    • Model Number:EVS4860-H1B2
    • Brand Name:OEM ODM
    • Place of Origin:Guangdong, China
    • Application:Industry, Laboratory, Industrial Equipment, Battery Charging
    • Efficiency:95%
    • Output Frequency:50/60Hz
    • Output Type:Single
    • Protection:Over Power Protection, Overloading Protection, Overvoltage Protection, Overcharging Protection
    • Type:AC-DC, Telecom Power Rectifier System
    • Product Name:Rectifier System
    • Function:Telecom base stations
    • Logo:EVS or OEM
    • Colors:black OEM
    • controller:with Ethernet






    Product Description

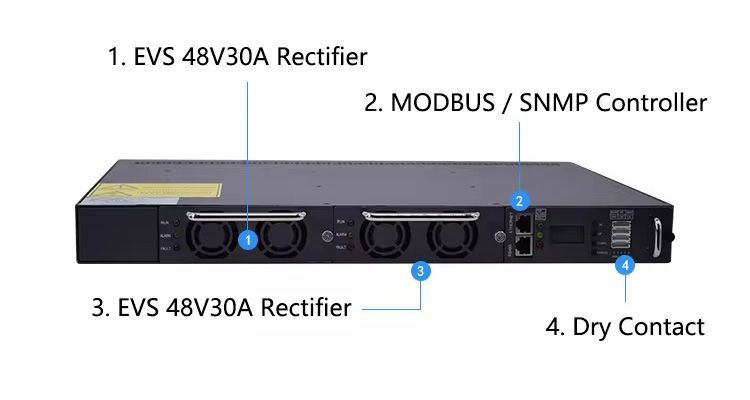

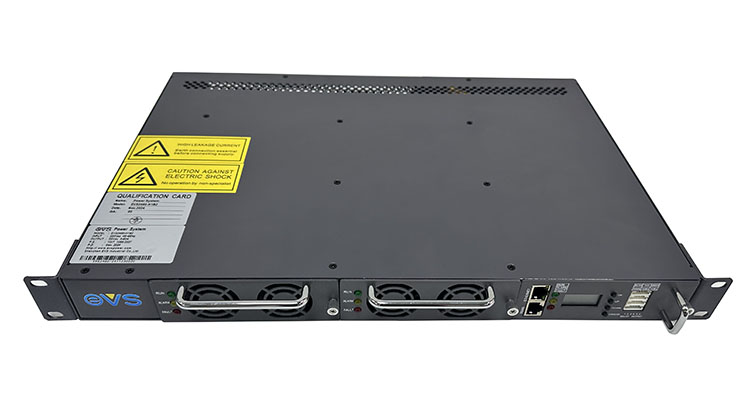

    Telecom Power Rectifier System


    This model of power supply is for commucication,
    Output voltage -48V,Output current 0-20A;Its features include input over/under-voltage protection, output over-current protection, output over-voltage protection.







    Rectifier System index


    EVS Series™  uninterrupted power supply for 48v lithium ion battery


    Product Description:


    EVS Power Series™ is a unique and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. EVS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world. These power supplies are mainly used in the following applications:



    • Computer Peripherals and Networking

    • Telecommunications and Fiber optic Network

    • Voice, Data and Analog Communications

    • Universities and Educational Facilities

    • Instrumentation and Electronics

    • Utility and Power Industries

    • Data Acquisition





    Telecom Power Rectifier System Main Features:


    EVS Power Series is a reliable, efficient and inexpensive solution for all kind of AC to DC power supply applications.






    • Compact Rack Mount Size

    • Universal AC (Alternate Current) Input

    • Filtered IEC AC Inlet Connectors

    • EMI FCC Class B Clearance

    • Single and Multiple Output

    • Highly Efficient Design

    • 1U Low Profile Height

    • NO Minimum Load Required

    • RS485/RS422 Remote Management

    • Low Voltage Power Supply Alarm

    • Data Line Alarm And ACO (Alarm Cut Off) System

    • Cost Effective and Reliable Power Supply
























































































    Rectifier System Technical

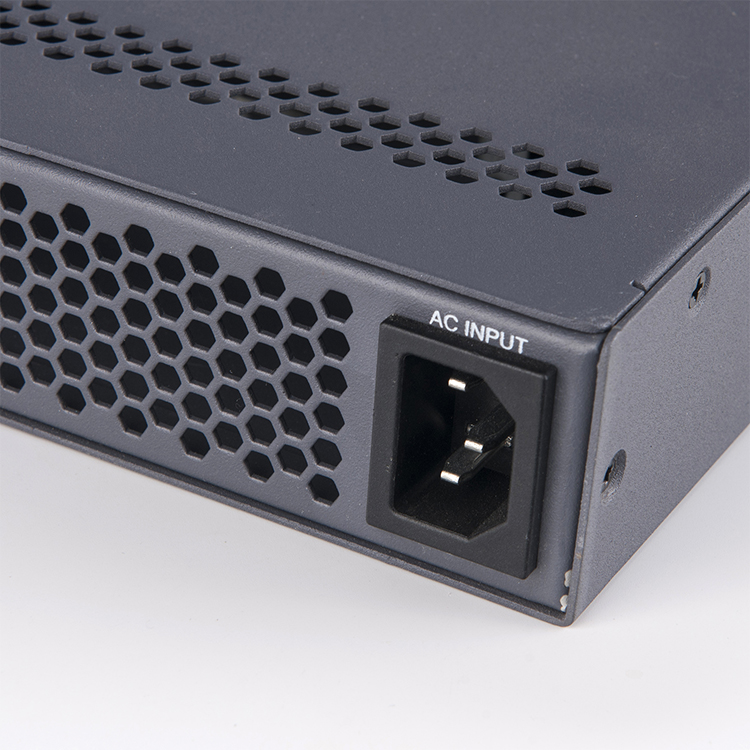

    AC Input



    Input



    Single phase 220Vac .50hz



    Frequency



    50HZ,Range:45Hz~66Hz



    Voltage Range



    90V~290VAC



    DC output



    Rated current(A)



    60A



    Max Output Current



    0~35A



    Rated power(W)



    3600W



    Rated voltage(V)



    220V



    Equ- charge (V)



    56.4V(42-58Vdc adjustable);



    Float voltage(V)



    53.5V(42-58Vdc adjustable);



    Output Accuracy(V)



    ≤1%



    Output ripple voltage



    ≤200mV<0-20mHZ>



    PF



    0.99@220VAC/30A



    Leakage current



    ≤1.5mA



    Indicator



    LCD display



    Input/output voltage,Frequency,output current,Environment,Rate



    Power status



    City power,Output,Under voltage,overload voltage



    Current Sharing



    ±5% from true average current between modules;



    Load regulation



    2%



    Line regulation



    1%

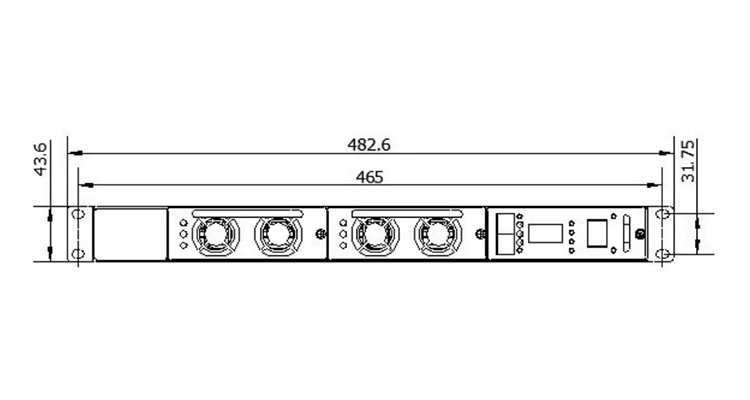

    Dimension



    482X310X44mm (D*W*H)
