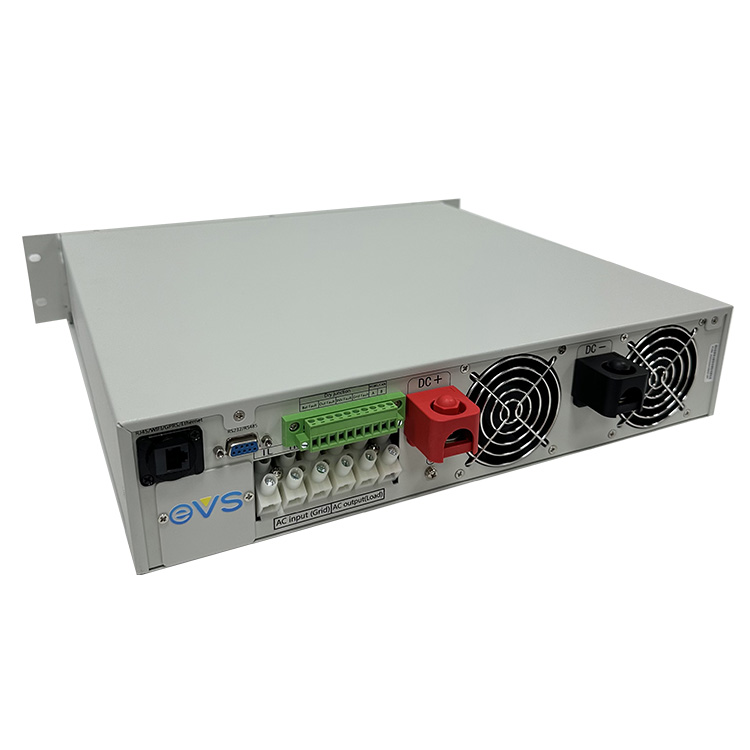

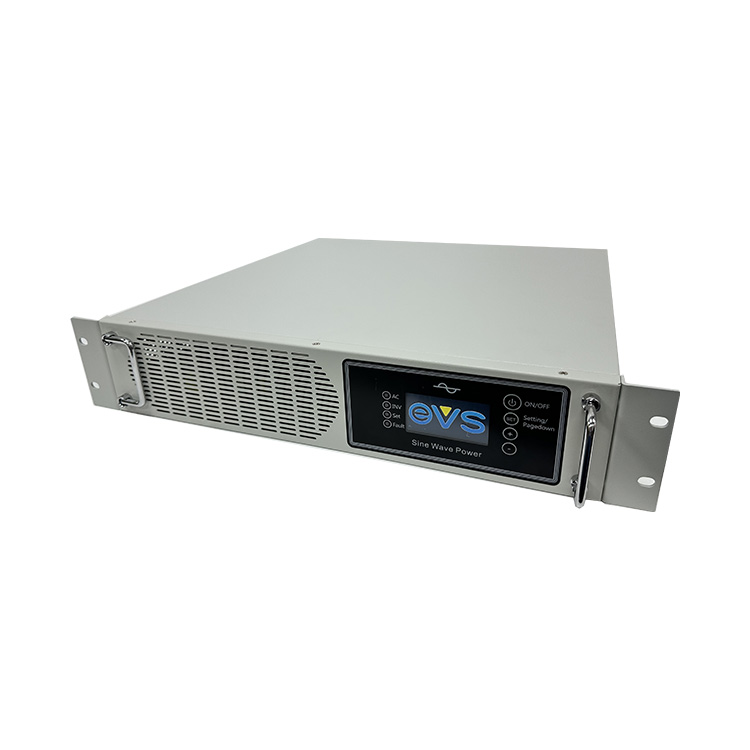

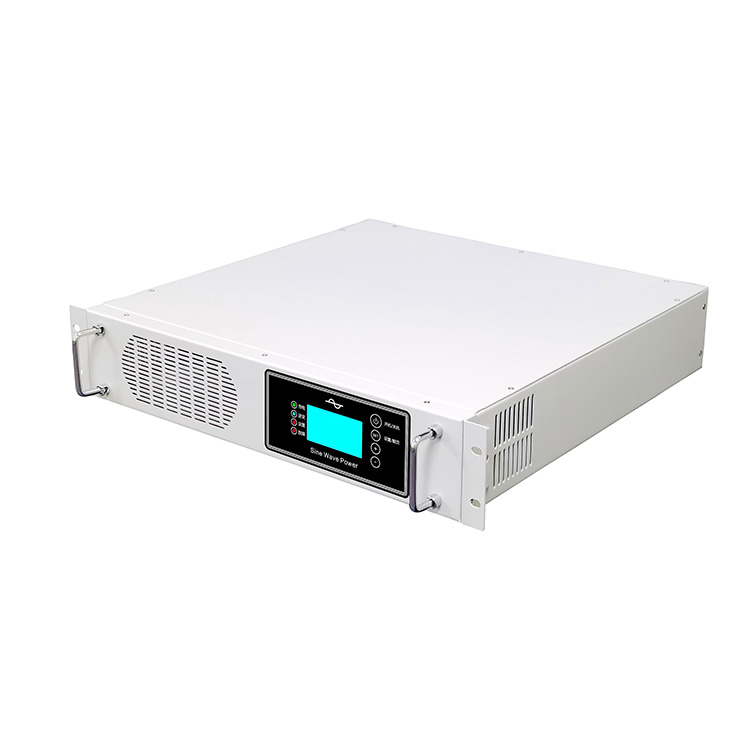

    Telecom Power Industrial High Efficiency Sine Wave 125VDC DC/AC Inverter Converters 1KVA-6KVA

    EVS-A3-30125R
    minimum order:
    1 piece
    Quantity:
    $500.00 - $500.00 / piece
    Contact Now
    add to cart
    • Output Current:13 A
    • Output Frequency:50Hz/60Hz
    • Phase:Single Phase
    • Type:DC/AC Inverters
    • Model Number:EVS-A3-30125R
    • Brand Name:OEM
    • Place of Origin:Guangdong, China
    • Application:Industrial
    • Efficiency:0.95
    • Network:SDK
    • Output Type:Single
    • Weight:15KG
    • Inverter type:DC AC Inverters
    • Warranty:12 Months
    • Certificate:EMC/LVD
    • Power factor:0.99
    • Out put wave type:sine wave
    • Communication port:RS232 RS485 Modbus
    • Display:LED+LCD
    • Battery type:220VDC
    • Protection:anti-short, overload, high/low input voltage
    • Bypass and Battery transfer:<5ms
    Product Description








    Specification

    DC 110v to AC 220v Converter Specification
    Power

    1000VA

    2000VA

    3000VA

    4000VA

    5000VA

    6000VA

    8KVA

    10KVA

    12KVA

    DC Input

    Rated input voltage


    110Vdc

    Backflow noise current


    ≤10%


    Mains input

    Allow bypass voltage


    180Vac~285Vac(±1%)

    Rated input current


    4.5A


    9A


    13.6A


    18A


    22.6A


    27A


    36A


    45A


    54A

    Bypass transfer time


    ≤5ms

    AC output

    Rated Capacity


    1000VA


    2000VA


    3000VA


    4000VA


    5000VA


    6000VA


    8KVA


    10KVA


    12KVA

    Rated output power


    800W


    1600W


    2400W


    3200W


    4000W


    4800W


    6400W


    8000W


    9600W

    Rated output voltage and frequency

    220Vac,50HZ

    Rated output current

    3.6A

    7.2A

    10.8A

    14.4A

    18A

    21.5A

    29A

    36A

    43A

    Output voltage accuracy

    220Vac ± 1.5%

    Output frequency accuracy

    50Hz ± 1%

    Waveform distortion rate(THD)

    ≤3%(Linear load)

    Dynamic response time

    5%(Load 0←→100%)

    Power factor(PF)

    0.99

    Overload capacity

    120%,30 Seconds

    Inverter efficiency

    ≥88%(80% Resistive load)

    Bypass transfer time

    ≤5ms

    Working Environment

    Insulation strength
    (input and output)

    1500Vac,1 minute

    Noise(1 meter)

    ≤40dB

    Ambient temperature

    -25℃~+50℃

    Humidity

    0~90%,No condensation

    Operating altitude

    ≤1000m Or Derating use

    Protection

    Input under-voltage, input over-voltage protection;

    output overload, output short-circuit protection
    Selling Point

    1.High Energy Utilization System: The DC/AC inverter features an efficiency of 0.93, ensuring the optimal use of input power to generate output power, making it highly efficient and cost-effective.

    2.Customizable LCD/LED Display: The versatile and user-friendly 48Vdc/220Vac 50Hz 1kVA inverter is equipped with an LCD/LED display, which provides real-time information such as output voltage, current, and frequency, allowing users to monitor and adjust accordingly.

    3.Single Phase, 50Hz/60Hz Output Frequency: Suitable for a wide range of applications, the inverter operates on a single phase, offering output frequency options of 50Hz and 60Hz, catering to various power demands and regions.

    4.48V Battery Compatibility: Designed to work with 48v batteries, the inverter is compatible with various types of 48v battery systems, making it a versatile choice for various industrial settings.

    5.Noise Level Control: With a noise level of <60dB, the inverter operates quietly, ensuring minimal disturbance during operation, making it ideal for use in quiet environments or residential spaces where noise levels need to be maintained.
